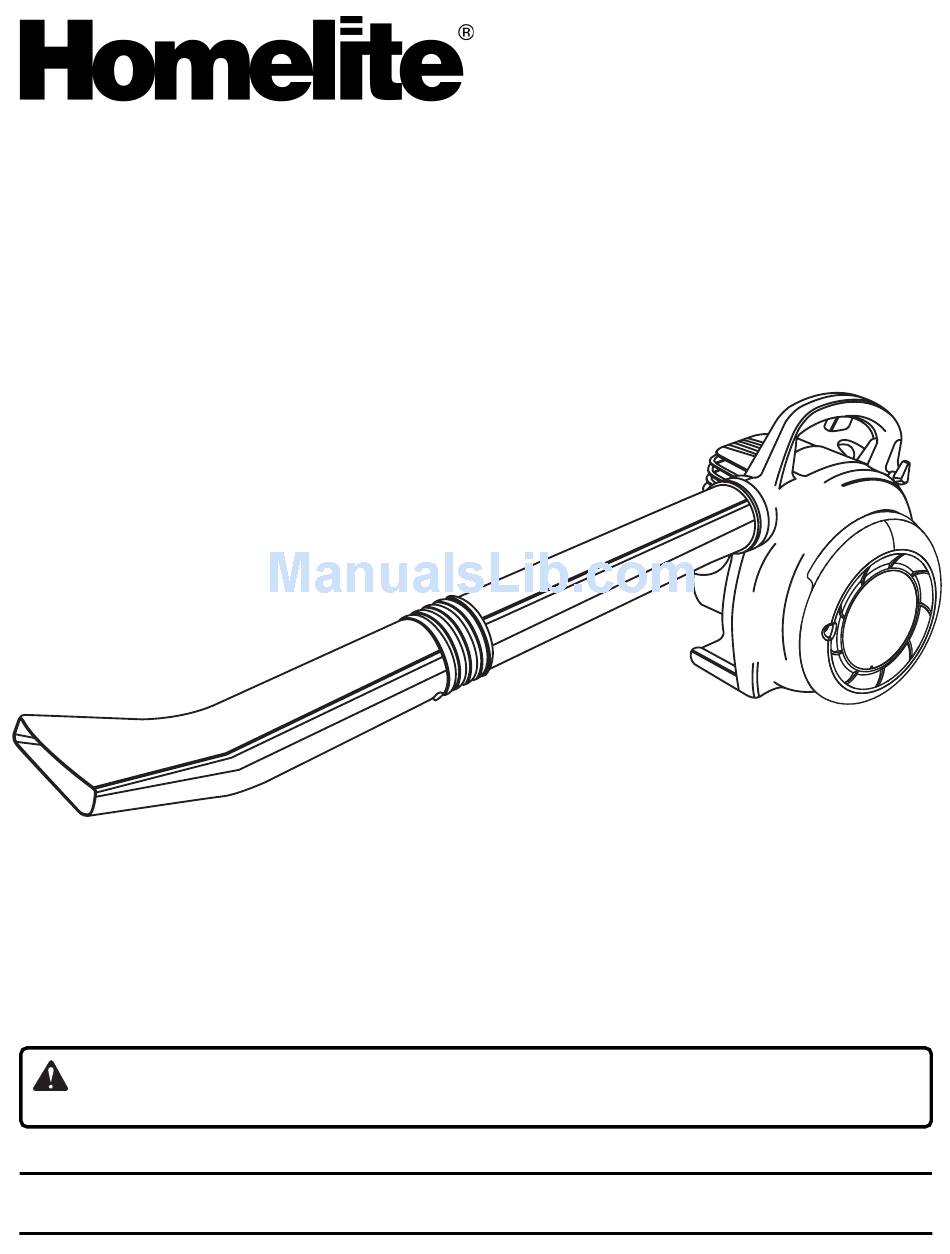

OPERATOR'S MANUAL
Yard Broom II Blower
UT08510 and UT08511
Your new blower has been engineered and manufactured to Homelite's high standard for dependability, ease of operation, and
operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before
using this product.
Thank you for buying a Homelite blower.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Advertisement
Table of Contents
Related Manuals for Homelite YARD BROOM II BLOWER UT08510
Summary of Contents for Homelite YARD BROOM II BLOWER UT08510
- Page 1 Yard Broom II Blower UT08510 and UT08511 Your new blower has been engineered and manufactured to Homelite’s high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ■ ■ ■ ■ ■ Introduction ... 2 ■ ■ ■ ■ ■ General Safety Rules ... 3 ■ ■ ■ ■ ■ Specific Safety Rules ... 3 ■ ■ ■ ■ ■ Symbols ... 4 - 5 ■... -
Page 3: General Safety Rules
■ ■ ■ ■ ■ Never attempt to burn off spilled fuel under any circum- stances. ■ ■ ■ ■ ■ Use only Homelite replacement parts and accessories. Failure to do so may cause poor performance, possible injury. -
Page 4: Symbols
Some of the following symbols may be used on this tool. Please study them and learn their meaning for safe operation of this product. SYMBOL NAME Safety Alert Symbol Read the Operator’s Manual Wear Eye and Hearing Protection Vacuum Door Blower Tubes Long Hair Loose Clothing... -
Page 5: Symbols
The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. -
Page 6: Features
SPECIFICATIONS Weight ... 9.6 lbs. (4.3 kg.) Engine displacement ... 30cc Air Velocity: MPH ... 170 CFM ... 375 Before using this blower, familiarize yourself with all operat- ing features and safety requirements. However, do not let familiarity with the blower make you careless. This new blower is equipped with the following features. -
Page 7: Packing List
INSTRUCTIONS When unpacking the blower: ■ Carefully remove the blower and accessories from the box. ■ Make sure that all items listed in the packing list are in- cluded. ■ Inspect the blower carefully to make sure no breakage or damage occurred during shipping. -
Page 8: Operation
WARNING: Gasoline is extremely flammable and explosive. A fire or explosion from gasoline will burn you and others. MIXING THE FUEL This product is powered by a 2-cycle engine and requires pre-mixing gasoline and 2-cycle oil. The mixture should be at a 50:1 ratio, using Premium Exact Mix™ 2-cycle engine oil. -
Page 9: Starting And Stopping
STARTING AND STOPPING See Figure 3. Starting the product differs depending on whether the engine is cold or warm. Refer to the label on the air filter base for choke positions A, B, and C. TO START A COLD ENGINE: 1. - Page 10 ■ Operate blower at the lowest possible throttle speed to do the job. ■ Check your equipment before operation, especially the muffler, air intakes and air filters. ■ Use rakes and brooms to loosen debris before blowing. ■ In dusty conditions, slightly dampen surfaces when water is available.
-
Page 11: Maintenance
WARNING: Use only original manufacturer's replacement parts, accessories and attachments. Failure to do so can cause possible injury, poor performance and may void your warranty. REPLACING AND CLEANING THE AIR FILTER See Figure 8. For proper performance and long life, keep air filter clean. 1. -
Page 12: Troubleshooting
2. Clean air filter, refer to “Replacing and Cleaning the Air Filter” earlier in this manual. 3. Contact a servicing dealer. 4. Contact a Homelite Service Center for carburetor adjustment. Turn idle speed screw clockwise to increase idle speed. See Figure 9. -
Page 13: Warranty
■ ■ ■ ■ ■ One year for the following units: Yard Broom, Trimlite, and Bandit; ■ ■ ■ ■ ■ Two years for all other Homelite products, if the product is used for personal, family or household use; ■ ■ ■ ■ ■ 90 days, if any of the above products are used for product used for any other purpose, such as commercial or rental. - Page 14 U.S. EPA standards for the first two years of engine use from the date of sale to the ultimate purchaser. Homelite Consumer Products, Inc. must warrant the emission control system on your nonroad or small off-road engine for the period of time listed above provided there has been no abuse, neglect, or improper maintenance of your nonroad or small off-road engine.
-
Page 15: Accessories
FIRST SCHEDULED REPLACEMENT, WHICH EVER COMES FIRST. The following recommended accessories are currently available. ACCESSORIES Gutter Attachment Kit ... Homelite - A07069AA Air Filter ... Power Care - AP04107 Spark Plug ... Champion - RCJ-6Y 2-Cycle Oil ... Homelite - AH99G01 Fuel Cap ... -
Page 16: California Proposition
CALIFORNIA PROPOSITION 65 SERVICE For parts or service, contact your nearest Homelite authorized service dealer. Be sure to provide all relevant information when you call or visit. For the location of the authorized service dealer nearest you, please call 1-800-242 4672 or visit us online at www.homelite.com.
