APPEARANCE VIEW

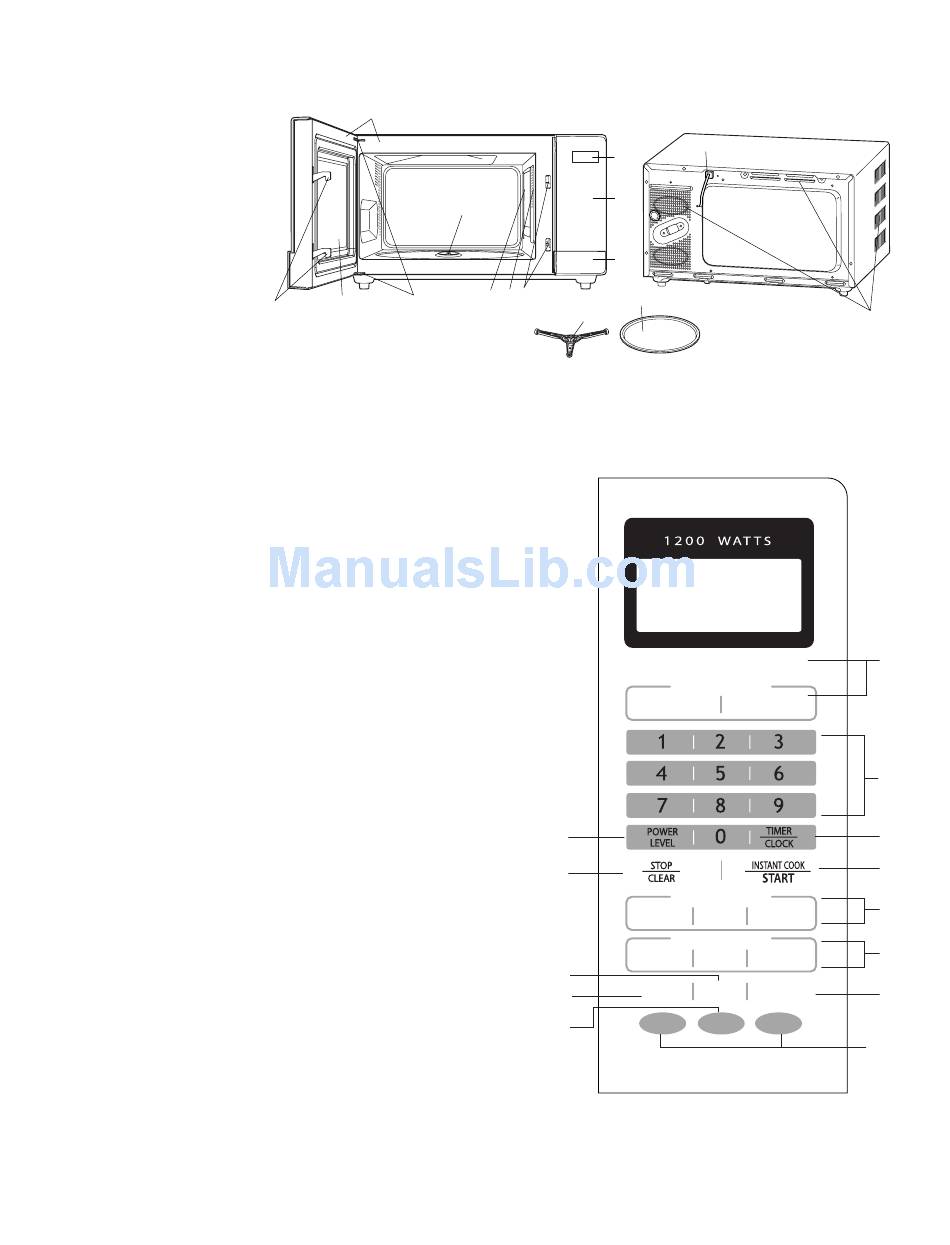

OVEN
1. Door open button
2. Door safety latches
3. Removable turntable support
4. Removable turntable tray
5. Oven lamp
6. See through door
7. Ventilation openings
8. Touch control panel
9. Liquid crystal display
10. Coupling
11. Wave guide cover
12. Power supply cord
13. Door hinges
14. Door seal and sealing surfaces
TOUCH CONTROL PANEL
1. HEALTHY MENUS PADS
Press to select "Healthy Menus" menu.
2. NUMBER PADS
Press to enter cooking times, clock time, weight or quantity of food.
3. TIMER/CLOCK PAD
Press to set Timer and Clock.
4. POWER LEVEL PAD
Press to select microwave power setting. If not pressed, 100% is automatically
selected.
5. INSTANT COOK/START PAD
Press once to cook for 1 minute on 100% or increase by 1 minute multiples each
time this pad is pressed during manual cooking. Press to start oven after setting
programmes.
6. STOP/CLEAR PAD
Press to clear during programming. Press once to stop operation of oven during
cooking; press twice to cancel cooking programme.
7. EXPRESS MENUS PADS
Press to select "Express Menus" menus.
8. SENSOR COOK PADS
Press to select Sensor Cook menus.
9. SENSOR REHEAT PAD
Press to select a reheat menu.
10.QUICK AND EASY PAD
Press to select Quick and Easy menus.
11.EASY DEFROST PAD
Press to defrost frozen food by entering quantity.
12.MORE, LESS PADS
Press to increase/decrease the time in one minute increments during cooking or
to alter the cooking result for the automatic operations.
13.HELP PAD
Press to select auto start, child lock, demonstration modes or info on pads.
Press to get cooking information.
NOTE: Some one-touch cooking features such as "INSTANT COOK" are disabled after one minute when the oven is not in use. These fea-
tures are automatically enabled when the door is opened and closed or the STOP/CLEAR pad is pressed.
