Performance Series HREP2 4-, 8-, and 16-Channel DVR
1 Installation
The Performance Series HREP2 DVRs come in three offerings:
• HREP24, 4-channel Digital Video Recorder
• HREP28, 8-channel Digital Video Recorder
• HREP216, 16-channel Digital Video Recorder

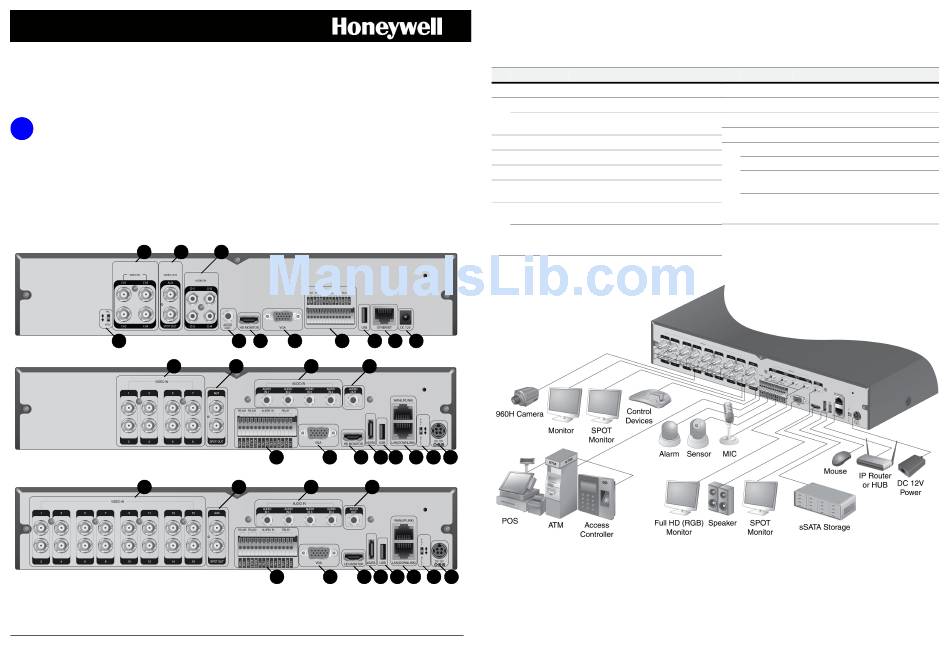

Rear Panel Connections
HREP24, 4-channel DVR
1 2
6
HREP28, 8-channel DVR
1
HREP216, 16-channel DVR
1

Quick Start Guide

Document 800-15801 — Rev A — 12/2013
3
4 10 11 12 8 7
2 3 4
12 11 10 9 8
2 3 4
12 11 10 9 8
Document 800-15801 – Rev A – 12/2013
Table 1
No. Name Description
1 VIDEO IN Video input terminal for cameras.
MONITOR H Monitor video output port.
2
Exclusive port for SPOT output only (use HDMI
SPOT OUT
cable to connect to an HD monitor).
3 AUDIO IN Port for audio input.
4 AUDIO OUT Port for speaker connection.
5 DC 12V Power input port. Connect to a 12V adapter.
Switch to change unit's video standard between
DIP Switch
6
NTSC and PAL.
Network port for connection to the Internet, router
WAN(UPLINK)
or hub.
7
Port for connecting the dedicated network device.
LAN(DOWNLINK)
Note
Basic System Layout
5
7 6 5
Note Signal connection for POS and ATM is scheduled to be upgraded later.
CAUTION
Since the cable quality may affect directly to the video quality depending on the distance
7 6 5
between the camera and DVR, it is recommended to consult an authorized installer when installing the DVR.
Rear Panel Connections
No. Name
8 USB
9 eSATA
10 HD-MONITOR
11 VGA
ALARM IN
RELAY 1/2
12
RS-485
RS-232
Do not share it with other device.
Performance Series HREP2 DVR Quick Start Guide
Description
Used for connecting USB storage or mouse.
Connection port for external eSATA storage.
HD monitor video output port.
VGA monitor video output port.
Alarm input signal port
Relay terminal output port.
Ports for communication with external devices
such as PTZ camera and system keyboard.
Connection ports for signal cables to external
devices such as PTZ camera, POS and ATM
devices.
