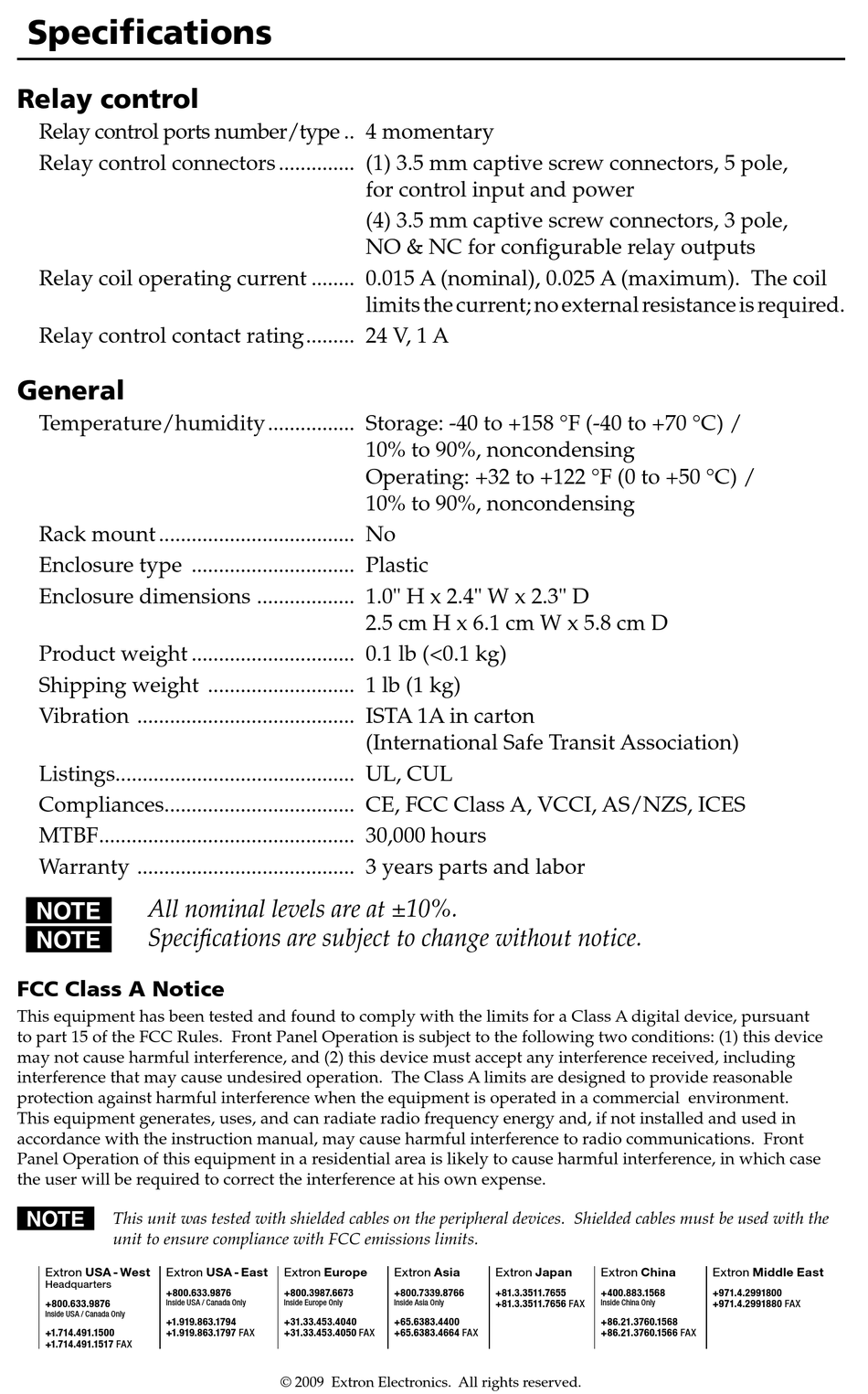

Specifications

Relay control
Relay control ports number/type .. 4 momentary
Relay control connectors .............. (1) 3.5 mm captive screw connectors, 5 pole,
Relay coil operating current ........ 0.015 A (nominal), 0.025 A (maximum). The coil
Relay control contact rating ......... 24 V, 1 A
General
Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) /
Rack mount .................................... No
Enclosure type .............................. Plastic
Enclosure dimensions .................. 1.0" H x 2.4" W x 2.3" D
Product weight .............................. 0.1 lb (<0.1 kg)
Shipping weight ........................... 1 lb (1 kg)
Vibration ........................................ ISTA 1A in carton
Listings............................................ UL, CUL
Compliances ................................... CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF ............................................... 30,000 hours
Warranty ........................................ 3 years parts and labor
All nominal levels are at ±10%.
N
Specifications are subject to change without notice.
N
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. Front Panel Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. The Class A limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Front
Panel Operation of this equipment in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
N
This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the
unit to ensure compliance with FCC emissions limits.
Extron USA - West Extron USA - East
Headquarters
+800.633.9876
+800.633.9876 Inside USA / Canada Only
Inside USA / Canada Only
+1.919.863.1794
+1.714.491.1500 +1.919.863.1797 FAX
+1.714.491.1517 FAX
for control input and power
(4) 3.5 mm captive screw connectors, 3 pole,
NO & NC for configurable relay outputs
limits the current; no external resistance is required.
10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) /
10% to 90%, noncondensing
2.5 cm H x 6.1 cm W x 5.8 cm D
(International Safe Transit Association)
