Connections
N
IPA T RLY4
Typical Stewart Low Voltage Controller
NOTE

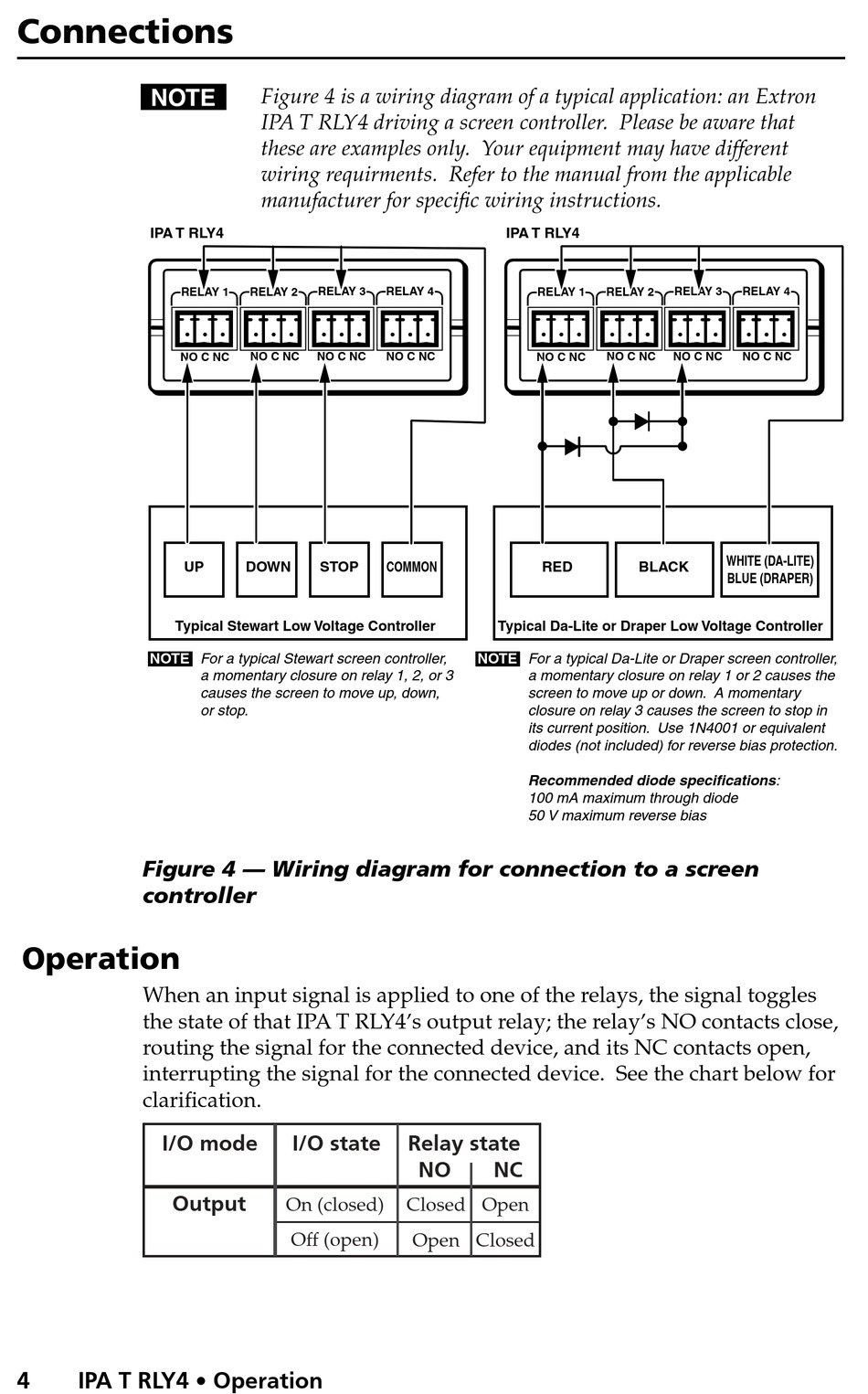

Figure 4 — Wiring diagram for connection to a screen
controller

Operation

When an input signal is applied to one of the relays, the signal toggles
the state of that IPA T RLY4's output relay; the relay's NO contacts close,
routing the signal for the connected device, and its NC contacts open,
interrupting the signal for the connected device. See the chart below for
clarification.
I/O mode
Output
4 IPA T RLY4 • Operation
Figure 4 is a wiring diagram of a typical application: an Extron
IPA T RLY4 driving a screen controller. Please be aware that
these are examples only. Your equipment may have different
wiring requirments. Refer to the manual from the applicable
manufacturer for specific wiring instructions.
RELAY 1 RELAY 2 RELAY 3
NO C NC NO C NC
NO C NC
UP DOWN STOP
For a typical Stewart screen controller,
a momentary closure on relay 1, 2, or 3
causes the screen to move up, down,
or stop.
I/O state
On (closed)
Off (open)
IPA T RLY4
RELAY 4 RELAY 1
NO C NC
NO C NC
COMMON RED
Typical Da-Lite or Draper Low Voltage Controller
NOTE For a typical Da-Lite or Draper screen controller,
a momentary closure on relay 1 or 2 causes the
screen to move up or down. A momentary
closure on relay 3 causes the screen to stop in
its current position. Use 1N4001 or equivalent
diodes (not included) for reverse bias protection.
Recommended diode specifications:
100 mA maximum through diode
50 V maximum reverse bias
Relay state
NO NC
Closed Open
Open Closed
RELAY 2 RELAY 3 RELAY 4
NO C NC NO C NC NO C NC
WHITE (DA-LITE)
BLACK
BLUE (DRAPER)
