Summary of Contents for DVIGear DVI-3120a
-

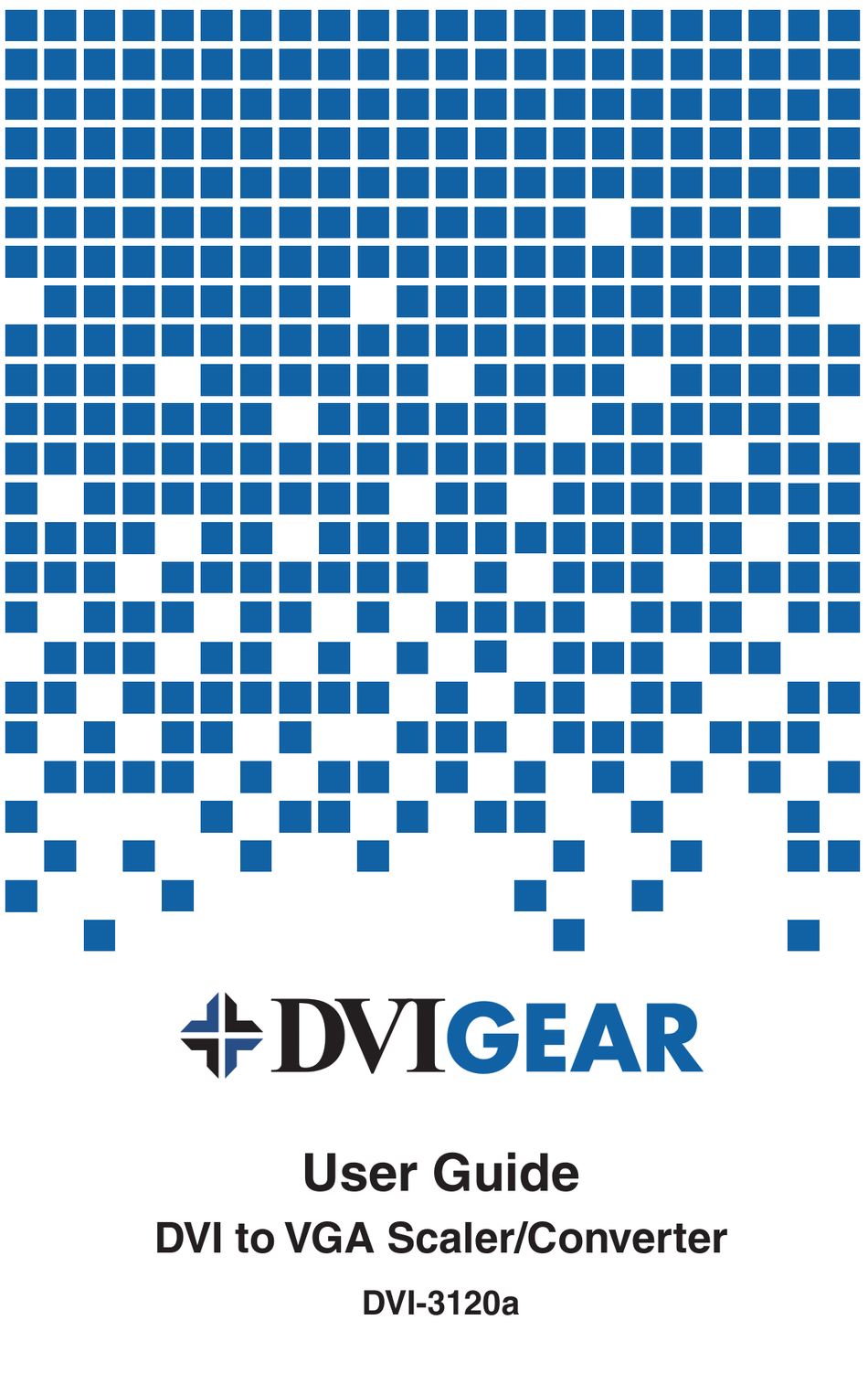

Page 1: User Guide
User Guide DVI-D Fiber Optic Cable DVI to VGA Scaler/Converter DVI-3120a... -
Page 2: Table Of Contents
Table of Contents Section Page 1.0 Introduction ........1 2.0 Specifications . -
Page 3: Introduction
Converters, as well as Signal Switchers and Distribution Amplifiers. Liability Statement Every effort has been made to ensure that this product is free of errors. DVIGear cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. - Page 4 Getting the Best Results There are many factors affecting the quality of results when scaling video signals. Some basic precautions will ensure the best possible performance from your Video Scaler. Output Display Device – The quality of the output signal will depend largely upon the type and quality of display device used.
-
Page 5: Specifications
SPECIFICATIONS Input Signal Specifications: Input Format Digital RGBHV, YPbPr or YCbCr Input Signal Digital RGB Data Bitstream Output Format Analog RGBHV, YPbPr RGBHV: 0.7 V p-p, 75Ω , H/V: 3 to 5 p-p TTL, Output Signal Y: 1 V p-p 75Ω, Pb/Cb, Pr/Cr: 0.7 V p-p 75Ω Input Connector Type 24 Pin DVI Connector Output Connector Type... -
Page 6: Checking Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or DVIGear immediately. Please have the Model Number, Serial Number and Invoice Number available for reference when you call. -
Page 7: Operating The Unit
Connecting Power to the Unit This unit is shipped with an Plug-In Power Adapter that converts 100~240VAC@ 50-60Hz to 5VDC. Connect the DC Output Cord from the Power Adapter to the back of the unit and then plug the Power Adapter into an AC power receptacle. When AC power is applied in this fashion, the Power LED indicator will illuminate. - Page 8 OSD Menus If you select the first item on the main menu, Input Set up, a secondary menu will show the following items: 5.1.1 Input set up – When it is selected, a simple, two-selection sub menu will appear. This menu allows you to manually select the type of input you are feeding to the scaler.
-
Page 9: Troubleshooting
System information – When selected, this shows the input/output resolutions and their vertical refresh rate on the screen. Auto adjust – When selected, the DVI-3120a will automatically adjust all the parameters to the factory presets. Exit – Select to exit from the current menu page. -
Page 10: Limited Warranty
The liability of DVIGear with respect to any defective products will be limited to the repair or replacement of such products. In no event shall DVIGear be responsible or... - Page 11 Your Digital Connectivity Experts Toll Free 888.463.9927 DVIGear, Inc. Phone 770.421.6699 1059 Triad Court, Suite 8 Toll Free 888.463.9927 400 Meadowmont Village Circle 770.234.4207 Marietta, Georgia 30062-2258 Phone 919.969.6681 Suite 425 919.869.1310 Chapel Hill, NC 27517 www.dvigear.com www.dvigear.com DVI-3120a-UG-02 / Dec.2008...
