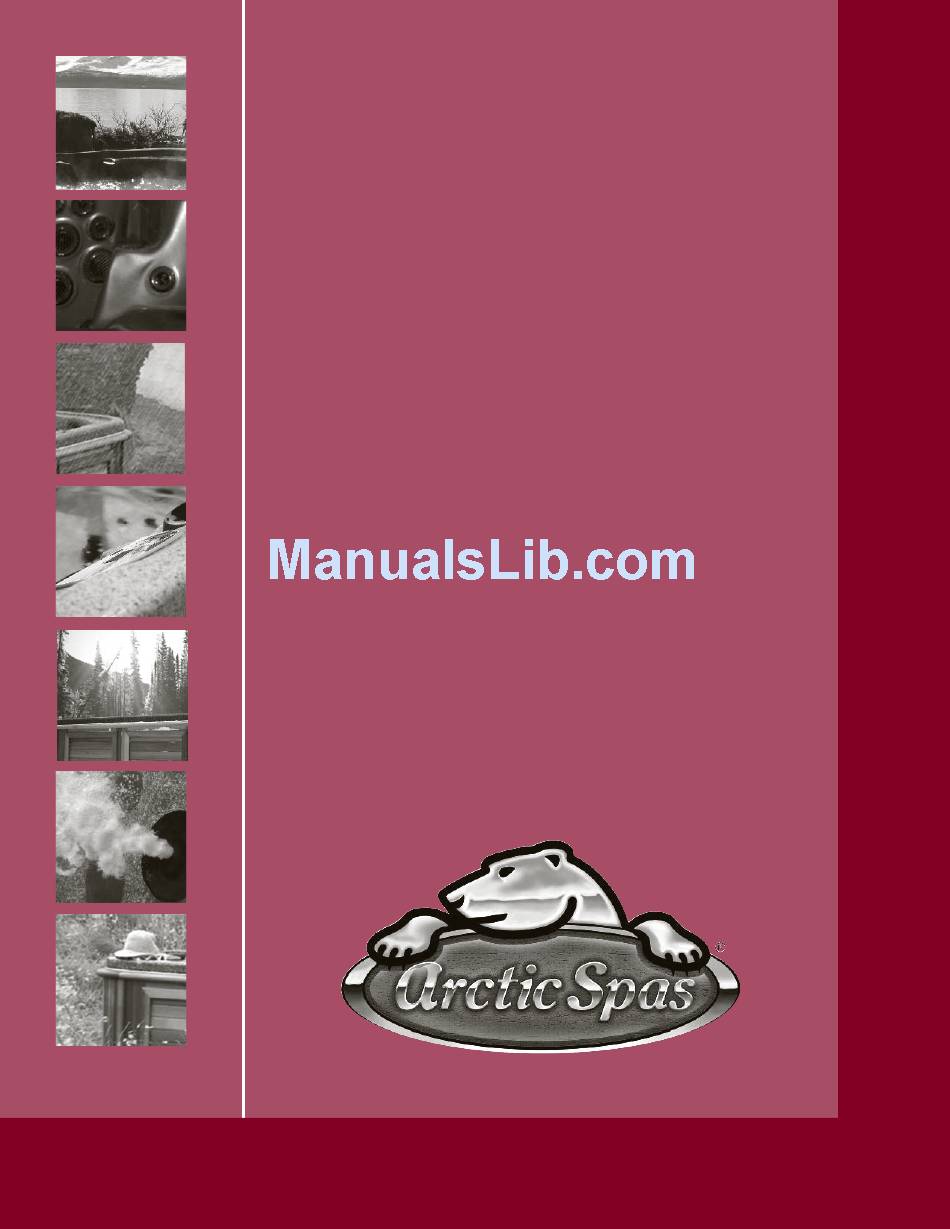

- Page 1 O w n e r s M a n u a l I n t e r n a t i o n a l en g i n ee re d fo r t h e wor ld ’s hars hes t clim ate s ®. . . (wh e rever yo u h app en to li ve )
- Page 2 If you require additional information, please call your local Arctic Spas ® dealer or check our website at www.arcticspas.com. IMPORTANT!
-
Page 3: Table Of Contents
Contents Important Safety Instructions ............4 Hyperthermia ..................6 Spa Specifications................7 Installation Instructions ..............8 Electrical Specifications ............... 9 Electrical Installation Instructions ............ 9 Startup Procedures ................10 ™ Fusion Jetting System ..............11 Read and Follow Venturi Controls ................11 All Instructions Arctic Chiller .................. -
Page 4: Important Safety Instructions
Important Safety Instructions: READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY When installing and using this electrical equipment, basic safety precautions should always be followed, including: 1) WARNING: Do not use spa if power supply cable has been damaged. 2) WARNING: To reduce the risk of injury, do not permit children or infirm persons to use this prod- uct unless they are closely supervised at all times. -
Page 5: Save These Instructions
b) Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy, pregnant or possibly pregnant women should limit hot tub wa- ter temperatures to 38°C. If pregnant, please consult your physician before using a hot tub. -
Page 6: Hyperthermia
WARNING: The use of alcohol or drugs can greatly increase the risk of fatal hyperthermia in hot tubs. WARNING: People using medications and / or having an adverse medical history should consult a physician before using a spa or hot tub. Hyperthermia Prolonged immersion in hot water may induce hyperthermia. -
Page 7: Spa Specifications
INTERNATIONAL SPA SPECIFICATIONS Weight per Water Electrical Outside Heights Heater Filled square meter Capacity Requirements Dimensions Weight Weight* (Watts) 230 Volt, 32 Arctic 630 Kg 171” x 94.5” 50.5” Amp Single Phase or 5500 6090 Litres 748 Kg 6573 Kg per square meter Ocean 434 cm x 240 cm... -
Page 8: Installation Instructions
Installation Instructions Site Preparation Please ensure the following: • Always put your spa on a structurally sound, level surface. A filled spa can weigh a great deal. Make certain that the location you choose can support the weight of your filled spa. •... -
Page 9: Electrical Specifications
This diagram is for reference only! Electrical Installation Instructions ARCTIC SPAS MUST BE WIRED IN ACCORDANCE WITH ALL ® APPLICABLE LOCAL ELECTRICAL CODES. ALL ELECTRICAL WORK SHOULD BE DONE BY AN EXPERIENCED, LICENSED ELECTRICIAN AND APPROVED BY A LOCAL BUILDING/ELECTRICAL INSPECTION AUTHORITY. -
Page 10: Startup Procedures
Startup Procedures IMPORTANT: Your Arctic Spa has been thoroughly tested during the manufacturing process to ensure reliability and long-term customer satisfaction. Before filling the spa, wipe the spa shell clean with a soft rag. The following instructions must be read and followed exactly to ensure a successful start-up or refill. 1) Ensure the electrical connections have been made in accordance with this manual and that the supply cable has not been damaged in any way. -
Page 11: Fusion Jetting System
the water temperature to stabilize (approximately 16 hours). Make sure you secure the cover in place using the cover locks. Periodically check the spa water temperature. When the wa- ter temperature climbs above 29°C, proceed to the next step. 9) Test and Adjust Sanitizer level (Chlorine ideal 1 - 3 ppm or Bromine ideal 3 - 5 ppm). 10) You can set the temperature (between 38°C and 40°C, 100°F to 104°F) by pressing the TEMP ( + ) and TEMP ( - ) buttons on the control panel. -
Page 12: Jets
Jets Single Pulse Five Inch (5”) Jets The five-inch Hydro-massage jets give a wide circular massage. These jets are adjustable by turn- ing the face of the jet clockwise for a stronger flow and counter-clockwise for a softer flow and eventually off. -
Page 13: Topside Control Panel
Topside Control Panel Your spa control has been specifically designed so that by simply connecting the spa to a properly grounded source, and following the start-up procedures in this manual, the spa will automatically heat to the set temperature. Many other functions, such as filtration, safety checks and maintenance reminders have been automated so that your spa experience will be as carefree as possible. - Page 14 Main Functions • Start Pump 1 • Start Pump 2 • Start Pump 3 • Start Light • Starting Blower • Starting Super Jet Blower • Stand-By Mode This menu allows control of all pumps, blower and spa light, as well as the •...
- Page 15 Programming • Filter cycles • Economy Mode • Reminders • Warnings Programming spa system Setting filter cycles start time Setting cycle duration Here we set a value for the filter To program the filter cycle, you The display will show the starting hour previously set.
- Page 16 Setting maintenance reminder Turning reminders on/off Resetting prompt messages Viewing spa reminders prompts • Use Left or Right keys to review • Use (+) or (-) key to activate or The reminder icon will show up one by one all active maintenance This menu allows you to activate/ deactivate prompt(s).
- Page 17 Other Settings • Keypad display • Sound • Regional • Security To program keypad settings Setting keypad display options Adjusting contrast • Press Mode key This sub-menu is used to set • Use Left or Right keys to adjust • Select Options menu keypad display settings such as: desired level of contrast.
- Page 18 System info • Spa • Heater • Keypad Viewing information about • Reset the system • Upgrade Viewing information on Viewing information about spa To view spa equipment data such as: heater software system, heater and keypad software version, to reset programmed settings Heater software ID number and version Spa software ID number and version and to upgrade keypad software.
-
Page 19: Spa Care And Maintenance
6. Refill the spa BEFORE restoring power. IMPORTANT: With reusable filters, it is necessary to rinse the filter cartridges weekly. Every month, and each time the spa is drained for cleaning, clean the cartridges in filter cleaner. (With Arctic Spas ®... - Page 20 5. To reinstall the filter cartridge, reverse the order of steps in which it was removed. Care of Spa Pillows The spa pillows used in many of the Arctic Spas models will provide years of comfort if treated ® with care. They have been positioned above the water level to minimize the bleaching effects of chlorinated water and other spa water chemicals.
-
Page 21: Care Of The Spa Cover
MANUAL SAFETY COVER CLASSIFIED TO MANUAL SAFETY COVER ASTM F1346-91 MANUFACTURING DATE: CONTROL NO. RISING DRAGON WARNING AVERTISSEMENT ENFANTS DE SUBSISTANCE PARTIS. DES KEEP CHILDREN AWAY. CHILDREN ENFANTS OU LES OBJETS NE PEUVENT PAS OR OBJECTS CANNOT BE SEEN AVOID UNDER COVER. -
Page 22: Vacation Care Instructions
LED Light Replacement All Arctic Spas ® come equipped with two 12 volt blue LED underwater lights for night use. The Northern Lights™ option uses two multicoloured LED assemblies. The Northern Lights™ Deluxe option comes with five lights. Should you need to change any light, follow these simple steps: 1. -
Page 23: Water Maintenance
For Onzen System: Please refer to your Onzen User Guide for direction in water maintenance. Methods For Testing The Spa Water Accurate water testing and analysis are an important part of effectively maintaining your spa water. To follow the Arctic Spas ® recommended program, you must have the ability to test for: •... - Page 24 • Rinse the test cells before and after each use. • Do not dispose of test samples into the spa water. • When adding drops of chemicals from the kit (the reagents) into the test block, hold the bottle vertically and add the drops slowly to be sure the correct quantity is used. •...
- Page 25 circulation of water can cause the erosion of metals from spa equipment which can present possible scaling and staining problems in your spa. Cases of source water with high minerals (such as some well water): 1. We recommend you add 3 1/2 tablespoons (48 grams) of Arctic Pure Best Defense per 1000 ®...
- Page 26 If the pH is too high, it can be decreased by adding Arctic Pure Adjust Down to the spa water. ® 5. It is important to check the pH on a regular basis. The pH will be affected by the bather load, the addition of new water, the addition of various chemicals, and the type of sanitizer used.
- Page 27 Start-up: 1. Add pucks to floating dispenser and open to setting 4. 2. Add 7 tablespoons (100 grams) of Arctic Pure ® Refresh per 1500 litres (396 gallons) of water. 3. Add 1 tablespoon (14 grams) of Arctic Pure ® Boost per 1000 litres (265 gallons) of water.
-
Page 28: Common Spa Water Problems~Cause & Remedy
Common Spa Water Problems~Cause & Remedy PROBLEM POSSIBLE CAUSES A. Poor Filtration CLOUDY WATER B. Suspended particles C. Organic contaminants build up D. pH high E. Total alkalinity high F. Combined chlorine in the water G. High dissolved solids H. Hardness too high A. - Page 29 SOLUTIONS ® A. Dirty filter, clean with Arctic Pure Filter Restore (not with disposable filter). Increase Filter cycle. ® B. Add Arctic Pure Easy Clear ® C. Shock treatment with Arctic Pure Refresh ® D. Add Arctic Pure Adjust Down until level reads 7.2-7.6 ®...
-
Page 30: Troubleshooting Spa Problems
Troubleshooting Spa Problems 1. Nothing functions: The RCD Breaker has tripped or there is a power failure. Test RCD Breaker. Turn breaker back on and see if spa powers up, if not contact your factory authorized dealer. 2. Spa does not heat: Check to see if the heat indicator is on or there are any error messages on the topside control panel. - Page 31 Performance and Reliability is the Arctic Spas Customer Guarantee. ® If your spa cannot be repaired under our extensive warranty, Arctic Spas will provide a replacement spa equal in value to the original purchase price of the defective spa. Our philosophy Guarantees you...
- Page 32 10.01 en gin eered fo r th e wor ld ’s h arsh est climate s ®. .. (wh e reve r you h app e n to live ) ww w.a rc ti cs pa s. com...
