Symbols; Specifications - Homelite CSP3816 - UT74123D Operator's Manual

Petrol
Oil
Mix Petrol and Oil
Weight - No bar, chain, fuel or oil ................................................................................................................................... 4.4 kg (9.7 lbs)
Fuel tank capacity ...................................................................................................................................................... 575 cm
Oil tank capacity .......................................................................................................................................................... 350 cm
Bar lengths .......................................................................................................................................................... 41 - 50 cm (16 - 20 in.)
Chain pitch ............................................................................................................................................................... 8.26 mm (0.325 in.)
Chain gauge ............................................................................................................................................................ 1.27 mm (0.050 in.)
Chain type ................................................................................................................................................................ Semi-Chisel, LoPro
Drive sprocket ............................................................................................................................................................................. 7 - tooth
Engine displacement ............................................................................................................................................... 45 cm
Maximum engine power (ISO 7293) .............................................................................................................................. 1.9 kW (2.5 HP)
Maximum engine speed with attachment ........................................................................................................................... 12,500 min
Idling engine speed ................................................................................................................................................... 2,800 - 3,400 min
Sound pressure level ............................................................................................................................................... LpA av = 103.9 dBA
Sound power level ..................................................................................................................................................... LwA av = 110 dBA
Vibration (ISO 7505):
Front Handle ........................................................................................................................................................................ 3.5 m/s
Rear Handle ......................................................................................................................................................................... 7.7 m/s

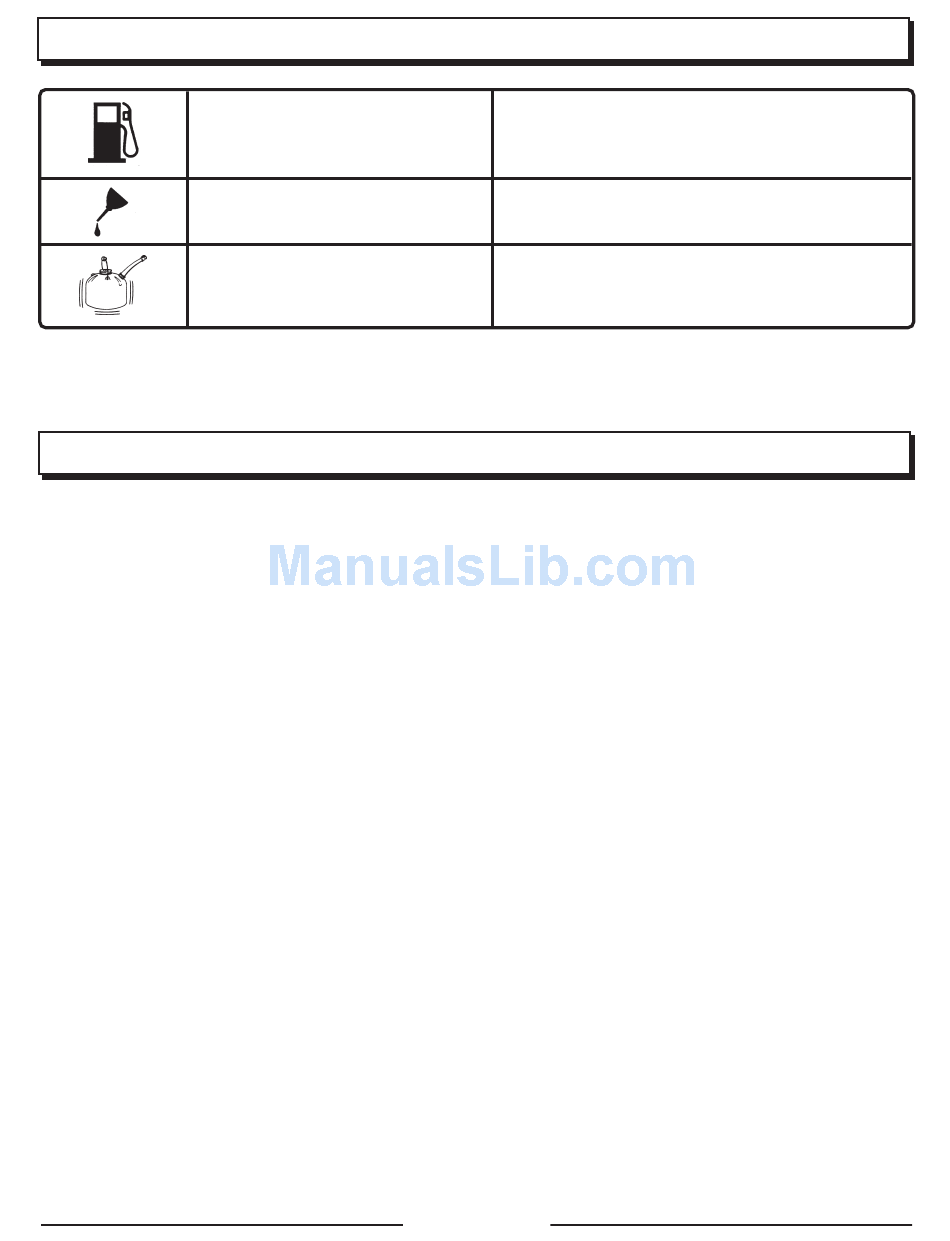

SYMBOLS

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

UK - Page 7
Use unleaded petrol intended for motor vehicle use
with an octane rating of 87 ([R + M] / 2) or higher.
Use 2-cycle oil for air cooled engines.
Mix the fuel mix thoroughly and also each time
before refuelling.
3 (19.4 oz.)
3 (11.8 oz.)
3 (2.75 cu. in.)
-1
-1
2
2
