Operator's Manual
Homelite
PARTS LIST
Zip Start™
Trimmers/Brushcutters
EasyTrim™
UT20693
d825cdp
UT20705
Trim N' Edge™
UT20694,
UT20707,
d725cde
UT20695,
Easy Reach™
UT20699,
UT20737,
d825sd
UT20700,
Expand-it™
UT20710,
UT20735
d825ca
UT20711,
VersaTool™
UT15151,
UT20723
d825sb
UT15152,
ST2517CR
UT20726R, UT20823
ST2537S
UT20734R, UT20827
BC2500 MR
UT15159R, UT15204
UT20697,
UT20698, UT20702,
UT20728
UT20713
UT20703,
UT20704, UT20730,
UT20738
UT20701,
UT20709, UT20729
UT20712,
UT20736
UT15154,
UT15157, UT20722,
UT15160
®
PART NO. PS05001
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homelite UT15152
Summary of Contents for Homelite UT15152
-

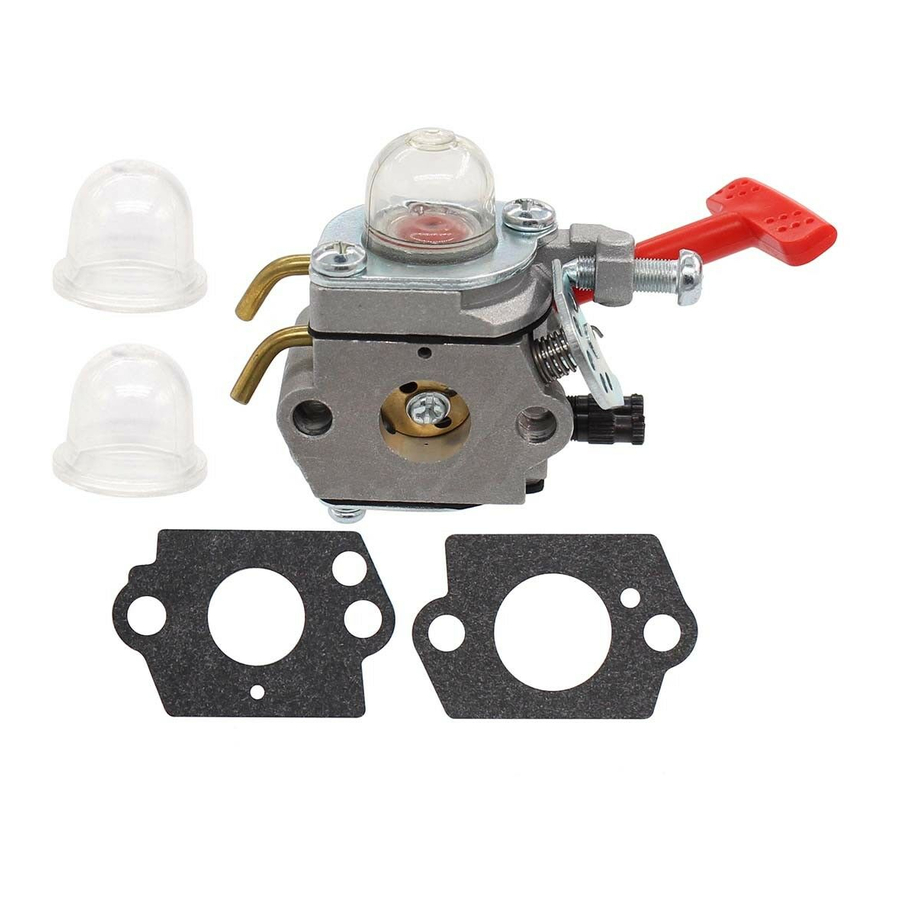

Page 1: Parts List
UT20738 d825sd UT20700, UT20701, Expand-it™ UT20710, UT20712, UT20735 d825ca UT20711, UT20736 VersaTool™ UT15151, UT15154, UT20723 d825sb UT15152, UT15160 ST2517CR UT20726R, UT20823 ST2537S UT20734R, UT20827 BC2500 MR UT15159R, UT15204 ® UT20698, UT20702, UT20704, UT20730, UT20709, UT20729 UT15157, UT20722, PART NO. PS05001... -
Page 2: Spark Plug
Non-Clutch EasyTrim™ ... (UT20693) d825cdp ... (UT20705) d825cde ... (UT20695, UT20713) d825sd ... (UT20700, UT20701, UT20709, UT20729) Part No. Description • A 07174 IGNITION KIT UP 03868 TERMINAL & COVER UP 03896 SCREW-Taptite (8-32 X 1") UP 03883 SPARK PLUG UP 04690 LEAD-Electrical •... - Page 3 Non-Clutch Trim N' Edge™ ... (UT20694, UT20697, UT20698, UT20702, UT20707, UT20728) Easy Reach™ ... (UT20699, UT20703, UT20704, UT20730, UT20737, UT20738) ST2517CR ... (UT20826R, UT20823) ST2537S ... (UT20734R, UT20827) Part No. Description • A 07174 IGNITION KIT UP 03868 TERMINAL & COVER UP 03896 SCREW-Taptite (8-32 X 1") UP 03883...
- Page 4 Clutch d825ca ... (UT20711, UT20736) d825sb ... (UT15152, UT15160) Part No. Description • A 07174 IGNITION KIT UP 03868 TERMINAL & COVER UP 03896 SCREW-Taptite (8-32 X 1") UP 03883 SPARK PLUG UP 04537 LEAD-Electrical UP 04536 LEAD-Electrical • UP 03009...
- Page 5 Clutch Expand-it™ ... (UT20710, UT20712, UT20735) VersaTool™ ... (UT15151, UT15154, UT15157, UT20722, UT20723) BC2500MR ... (UT15159R, UT15204) Part No. Description • A 07174 IGNITION KIT UP 03868 TERMINAL & COVER UP 03896 SCREW-Taptite (8-32 X 1") UP 03883 SPARK PLUG UP 04537 LEAD-Electrical UP 04536...
- Page 6 ST2517CR ... (UT20726R, UT20823) ST2537S ... (UT20734R, UT20827) Clutch Expand-it™ ... (UT20710, UT20712, UT20735) VersaTool™ ... (UT15151, UT15154, UT15157, UT20722, UT20723) d825ca ... (UT20711, UT20736) d825sb ... (UT15152, UT15160) BC2500MR ... (UT15159R, UT15204) Part No. Description • UP 02994 SHORT BLOCK (Non-Clutch) •...
- Page 7 ST2517CR ... (UT20726R, UT20823) ST2537S ... (UT20734R, UT20827) Clutch Expand-it™ ... (UT20710, UT20712, UT20735) VersaTool™ ... (UT15151, UT15154, UT15157, UT20722, UT20723) d825ca ... (UT20711, UT20736) d825sb ... (UT15152, UT15160) BC2500MR ... (UT15159R, UT15204) Part No. Description UP 04308 GASKET-Heat Dam UP 04131 SCREW-Machine (10-24 X 2 1/4")
-
Page 8: Muffler Assy
ST2517CR ... (UT20726R, UT20823) ST2537S ... (UT20734R, UT20827) Clutch Expand-it™ ... (UT20710, UT20712, UT20735) VersaTool™ ... (UT15151, UT15154, UT15157, UT20722, UT20723) d825ca ... (UT20711, UT20736) d825sb ... (UT15152, UT15160) BC2500MR ... (UT15159R, UT15204) Part No. Description • UP 04634 MUFFLER ASSY. - Page 9 SHAFT - SPOOL & STRING - GRASS DEFLECTOR EasyTrim™ ... (UT20693, UT20705) ST2517 CR ... (UT20726R, UT20823) Part No. Description • UP 06959 HANDLE-Anti-Vibe UP 04262 NUT-Wing, Washer Faced (1/4-20) UP 06523 SCREW-Cap Hex Hd. • UP 00710 DRIVESHAFT HOUSING ASSY . UP 03031 SHAFT-Flexible UP 04352...
- Page 10 SHAFT - SPOOL & STRING - GRASS DEFLECTOR Trim N' Edge™ ... (UT20694, UT20697, UT20698, UT20702, UT20707), UT20728 d725cde ... (UT20695, UT20713) Part No. Description • UP 06959 HANDLE-Anti-Vibe UP 04262 NUT-Wing, Washer Faced (1/4-20) UP 06523 SCREW-Cap Hex Hd. •...
- Page 11 SHAFT - SPOOL & STRING - GRASS DEFLECTOR Expand-it™ ... (UT20710, UT20712, UT20735) d825ca ... (UT20711, UT20736) Part No. Description • UP 06959 HANDLE-Anti-Vibe UP 04262 NUT-Wing, Washer Faced (1/4-20) UP 06523 SCREW-Cap Hex Hd. (1/4-20 x 2") • UP 00029 DRIVESHAFT ASSY.
- Page 12 SHAFT - SPOOL & STRING - GRASS DEFLECTOR Easy Reach™ ... (UT20699, UT20703, UT20704, UT20730, UT20737, UT20738) d825sd ... (UT20700, UT20701, UT20709, UT20729) ST2537S ... (UT20734R, UT20827) Part No. Description • UP 06959 HANDLE-Anti-Vibe UP 04262 NUT-Wing, Washer Faced (1/4-20) UP 06523 SCREW-Cap Hex Hd.
- Page 13 STRINGHEAD-Pro-Cut w/line (UT15151, UT15154, UT20722, UT20723, UT15157) UP 04102 SCREW-(5/16-18 x 5/8") D 09365 LINE-Replacement • DA 04591 A STRINGHEAD-Complete (.095") (UT15152, UT15160, UT15159R, UT15204) UP 06567 HOUSING & EYELET (Dual Line) UP 06526 SPRING-Compression UP 00147 SPOOL & STRING (.095") DA 98866 A RETAINER-Spool (R.H.
- Page 14 Expand-it™ ... (UT20710, UT20712, UT20735) d825ca ... (UT20711, UT20736) Part No. Description • UP 06790 DRIVESHAFT HOUSING UP 04116 DECAL-Warning UP 04542 CABLE-Flex UP 04142 CLAMP UP 06874 UPPER HOUSING • UP 06875 BEARING HOUSING UP 04713 ADAPTER-Arbor UP 06876 BUSING UP 04699 SHAFT-Arbor...
- Page 15 Expand-it™ ... (UT20710, UT20712, UT20735) d825ca ... (UT20711, UT20736) Part No. Description GM 23610 3 LOWER COVER A 07934 UPPER HOUSING • A 07930 DRIVESHAFT HOUSING A 08177 FLEX CABLE GM 97030 7 BOLT-Sems (1/4 - 28 x 1") GM 23670 6 SUPPORT-Tine GM 97690 3 TINE...
- Page 16 Expand-it™ ... (UT20710, UT20712, UT20735) d825ca ... (UT20711, UT20736) 10 9 Part No. Description • A 07931 DRIVESHAFT HOUSING UP 04369 SHAFT-Flexible UP 04116 DECAL-Warning UP 05572 SCREW-Cap Socket Hd. (1/4-20 X 7/8") UP 04254 SCREW-Sems Hex Hd. (10-24 X 1/2") UP 04124 GEAR HEAD •...
- Page 17 Expand-it™ ... (UT20710, UT20712, UT20735) d825ca ... (UT20711, UT20736) Part No. Description • A 07904 DRIVESHAFT HOUSING UP 04116 DECAL-Warning UP 04369 SHAFT-Flexible • UP 06534 FRONT HANDLE (“J”) UP 03409 WASHER-Lock (1/4") UP 04154 SCREW-Hex Hd. (1/4-20 X 1/2") UP 04158 SCREW-Hex Hd.
- Page 18 GREASE, MULTI-PURPOSE ... 18453 MODULE AIR GAP SHIM ... PS 24306 GRASS ANTI-WRAP KIT ... A 04191 STARTER ROPE (250 Ft. Reel) ... 98052 A TORX BIT (T25) ... UP 06544 (For Clutch Drums) TORX BIT (T27) ... UP 07160 IGNITION TEST SPARK PLUG ...
