Agri-Fab 45-03052 Owner's Manual

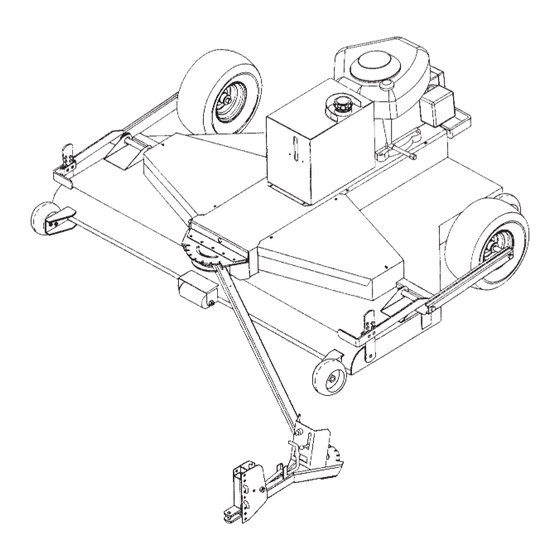

63" finish cut trailmower
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNERS
MANUAL
Model No.
45-03052
CAUTION:
Read Rules for
Safe Operation
and Instructions
Carefully
PRINTED IN U.S.A.
™
IMPORTANT: BATTERY REQUIRED!! The battery is NOT included
with the deck but must be purchased separately. A 12 volt lawn tractor
battery with 260/300 cold cranking amps and dimensions of 6-1/8"H x
7-5/8"L x 5-1/8"W is recommended to operate the machine.
• Assembly
• Operation
• Maintenance
• Parts
the fastest way to purchase parts www.speedepart.com
63" FINISH CUT
TRAILMOWER
FORM NO. 40104 (8/21/07)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 45-03052 and is the answer not in the manual?

Questions and answers

Related Manuals for Agri-Fab 45-03052

Summary of Contents for Agri-Fab 45-03052

  • Page 1 ™ OWNERS MANUAL Model No. 45-03052 63" FINISH CUT TRAILMOWER IMPORTANT: BATTERY REQUIRED!! The battery is NOT included with the deck but must be purchased separately. A 12 volt lawn tractor battery with 260/300 cold cranking amps and dimensions of 6-1/8"H x 7-5/8"L x 5-1/8"W is recommended to operate the machine. CAUTION: Read Rules for • Assembly Safe Operation • Operation and Instructions • Maintenance Carefully • Parts the fastest way to purchase parts www.speedepart.com PRINTED IN U.S.A.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY RULES ..........3-4 CUSTOMER RESPONSIBILITIES ....18-21 SAFETY AND OPERATION DECALS ....5-6 STORAGE ............22 PARTS BAG CONTENTS ........7 WIRING DIAGRAM .......... 23 ASSEMBLY ...........8-11 REPAIR PARTS ...........24-30 OPERATION ..........12-17 PARTS ORDERING ......BACK PAGE...

  • Page 5: Safety And Operation Decals

    SAFETY AND OPERATIONAL DECALS Replace decal immediately if damaged. Order by part number. See back cover.
  • Page 6 SAFETY AND OPERATIONAL DECALS Replace decal immediately if damaged. Order by part number. See back cover.

  • Page 7: Parts Bag Contents

    CONTENTS OF PARTS BAG SHOWN FULL SIZE NOT SHOWN FULL SIZE KEY QTY. DESCRIPTION KEY QTY. DESCRIPTION A Bolt, Hex 1/4" x 3/4" H "S" Hook B Screw, Pan Head #10-24 x 1/2" Cable Clip C Screw, Self Tapping #10-16 x 1/2" D Nut, Hex with Washer, 1/4" K Switch Cover E Nut, Hex #10-24 L Switch Nut F Lock Washer, #10 Switch G Battery Hold Down Strap N Throttle Control Knob...

  • Page 8: Assembly

    ASSEMBLY...
  • Page 9 ASSEMBLY...
  • Page 10 ASSEMBLY...
  • Page 11 NOTES...

  • Page 12: Operation

    OPERATION...
  • Page 13 OPERATION...
  • Page 14 OPERATION...
  • Page 15 OPERATION MOWER HEIGHT ADJUSTMENT FRONT TO BACK RAKE ADJUSTMENT To obtain the best cutting results and to reduce engine load, the mower housing should be adjusted so that the CAUTION: SHUT OFF MOWER ENGINE front is approximately 1/2" to 1" lower than the rear. To AND REMOVE SPARK PLUG WIRE FROM check front to back adjustment, measure from the bottom SPARK PLUG BEFORE MAKING ANY edge of the deck to the ground at both front and rear of ADJUSTMENTS TO THE MOWER. the deck. The cutting height range is approximately 1-1/2 to 4-1/2 inches. The heights are measured from the ground to TO ADJUST MOWER FROM FRONT TO BACK the blade tip with the engine shut off. The average lawn • Remove two hair cotter pins from two clevis pins in the should be cut to approximately 2-1/2 inches during the tow bar adjustment. (See Fig. 6) cool season and to over 3 inches during hot months. The • Remove two clevis pins from tow bar adjustment. particular height may vary depending on soil conditions, • Raise or lower the tow bar to obtain the proper front to type of grass and height of grass being mowed. For back adjustment.
  • Page 16 OPERATION...
  • Page 17 OPERATION IMPORTANT: Avoid prolonged mowing of ditches with slopes greater than 15 degrees. Small engines become starved for oil at angles greater than 15 degrees and should only be used for brief periods on such slopes. Be sure the engine is filled to the maximum oil level when mowing on slopes.

  • Page 18: Customer Responsibilities

    CUSTOMER RESPONSIBILITIES...
  • Page 19 CUSTOMER RESPONSIBILITIES...

  • Page 20: Customer Responsibilities

    CUSTOMER RESPONSIBILITIES FIG. 11...
  • Page 21 CUSTOMER RESPONSIBILITIES CHECKING CLUTCHING V-BELT TENSION ADJUSTING CLUTCHING V-BELT TENSION Disconnect spark plug wire. • TO INCREASE CLUTCHING V-BELT TENSION: Remove left side panel from Engine Mounting Plate. • Place the Mower Blade Clutch Lever in the • Place Mower Blade Clutch Lever in the • "ENGAGED" position. "DISENGAGED" position. Check spring tension by checking spring length. • Loosen the Outer Nut of the Clutch Cable. (See Fig. • (Refer to Fig. 11, page 20.) • Spring tension is correct if spring length measures Tighten the Inner Nut to increase spring tension. • from 2-5/8 inches to 2-7/8 inches. (See Fig. 12) • If spring length does not measure from 2-5/8 inches to 2-7/8 inches, an adjustment will be required. NOTE: For every 1/8 inch of adjustment made to the Cable you will change the spring length by 1/8 inch. FIG. 12...

  • Page 22: Storage

    STORAGE...

  • Page 23: Wiring Diagram

    WIRING DIAGRAM...
  • Page 24 63" FINISH CUT TRAILMOWER - MODEL 45-03052...
  • Page 25 63" FINISH CUT TRAILMOWER - MODEL 45-03052 the fastest way to purchase parts www.speedepart.com...
  • Page 26 63" FINISH CUT TRAILMOWER - MODEL 45-03052 1. 714-0117 Hair Cotter Pin (Large) 23 712-0121* Hex Nut #10-24 2. 47134 Hair Cotter Pin (Medium) 24. HA23749 Starter Switch 3. HA15200 Flat Washer 13/32 x 1-3/16 x 3/16 25. HA23750 Switch Mounting Nut 4. HA19445 Compression Spring 26. HA23751 Switch Cover 5. HA20186 Extension Spring 27. HA23752 Switch Key 6. HA20988 Clevis Pin 28. HA23760...
  • Page 27 63" FINISH CUT TRAILMOWER - MODEL 45-03052 1. 48925 Nut, 9/16-18 Nylock 13. HA180132 Bolt, 3/8-16 x 2-1/4 the fastest way to purchase parts www.speedepart.com...
  • Page 28 63" FINISH CUT TRAILMOWER - MODEL 45-03052 the fastest way to purchase parts www.speedepart.com...
  • Page 29 63" FINISH CUT TRAILMOWER - MODEL 45-03052 the fastest way to purchase parts www.speedepart.com...
  • Page 30 63" FINISH CUT TRAILMOWER - MODEL 45-03052 the fastest way to purchase parts www.speedepart.com...
  • Page 31 NOTES 31 31...

  • Page 32: Repair Parts

    REPAIR PARTS Agri-Fab, Inc. 809 South Hamilton Sullivan, IL. 61951 217-728-8388 www.agri-fab.com © 2001 Agri-Fab, Inc.
