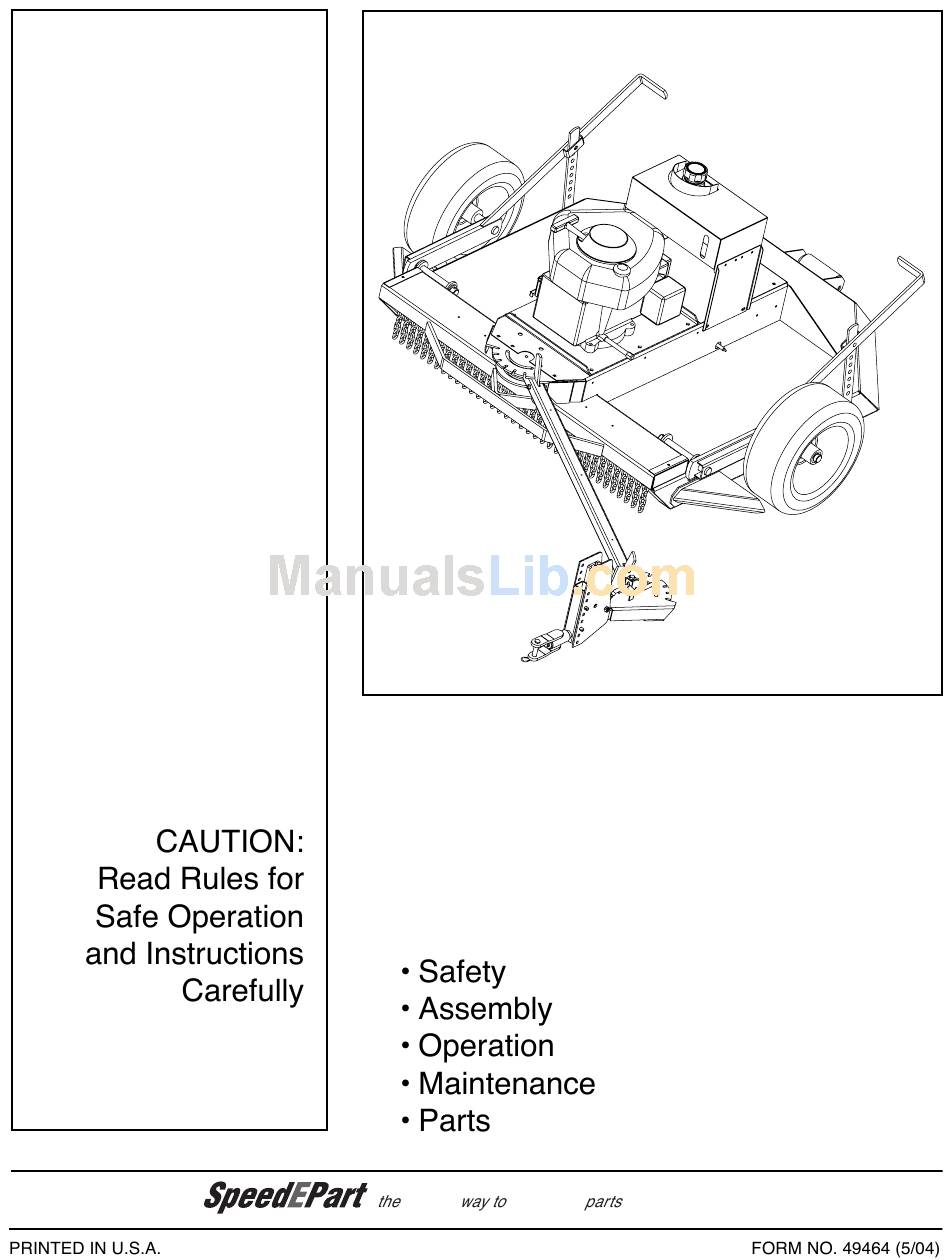

- Page 1 OWNERS MANUAL Model No. 45-03072 45-03611 42" ROUGH CUT TRAILMOWER fastest purchase www.speedepart.com...
- Page 2 TABLE OF CONTENTS...
-
Page 7: Contents Of Parts Bag
CONTENTS OF PARTS BAG SHOWN FULL SIZE NOT SHOWN FULL SIZE REF. QTY. DESCRIPTION REF. QTY. DESCRIPTION... - Page 8 INSTALL TOWBAR TUBE TO REAR QUADRANT • Remove Hex Bolts and lift Front Drive Cover from mower housing. • Rest end of Tow Bar Tube on front edge of mower. • Feed Wire Harness in end of Tow Bar Tube through large hole in back wall of Rear Quadrant.
- Page 9 ASSEMBLY FIG. 1...
-
Page 10: Clutch Cable Adjustment
FIG. 2 ASSEMBLY CLUTCH CABLE ADJUSTMENT • Remove four screws from Rear Drive Cover. Lay aside cover and screws. • Place Clutch Lever in "DISENGAGED" position • The Cable should be under slight tension but should not pull the Clutch Lever more than 1/8" away from the Switch Body. - Page 11 INSTALL REAR ROLLER TO DECK • Install Rear Roller Mounting Bracket to rear of deck using two 5/16 x 3/4 Hex Bolts and two 5/16 Hex Lock Nuts. (See Fig. 3.) • Install Roller to Rear Roller Bracket using 1/2 x 7 Hex Bolt and 1/2 Hex Lock Nut.
-
Page 12: Operation
OPERATION FIG. 4... - Page 13 OPERATION...
- Page 14 HAIR COTTER PIN LOCATING PIN HAIR COTTER PIN CLEVIS PIN TOW BAR TOW BAR ADJUSTMENT OPERATION HEIGHT ADJUSTMENT LIFT LEVER GROUND LEVEL FIG. 6 HEIGHT ADJUSTMENT STRAP CUTTING HEIGHTS 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" CUTTING HEIGHT...
- Page 15 The adjustable hitch gives you three offset cutting positions plus straight behind for narrow paths. MODEL 45-03071 The adjustable hitch of this mower can be set in seven positions including straight and offsets of 15", 29" and 39"...
- Page 16 OPERATION...
-
Page 17: Customer Responsibilities
CUSTOMER RESPONSIBILITIES... -
Page 18: Cleaning The Mower
CUSTOMER RESPONSIBILITIES BLADE CARE AND SERVICE CAUTION: BLADE CARE BLADE SERVICE • • • • • • • NOTE: CAUTION: • • • • • • • • • BLADE ASSEMBLY FIG. 9 WARNING: CLEANING THE MOWER DAILY MAINTENANCE REPAIR PARTS... - Page 19 CUSTOMER RESPONSIBILITIES CLUTCH CABLE ADJUSTMENT • Remove four screws from Rear Drive Cover. Lay aside cover and screws. • Place Clutch Lever in "DISENGAGED" position • The Cable should be under slight tension but should not pull the Clutch Lever more than 1/8" away from the Switch Body.
-
Page 20: V-Belt Replacement
CUSTOMER RESPONSIBILITIES V-BELT REPLACEMENT • V-belt must be replaced if it becomes stretched to the point that it can no longer be adjusted, or if it becomes frayed or otherwise can not function properly. • Move Blade Clutch Lever to the "DISENGAGED" position. - Page 21 STORAGE...
- Page 23 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION fastest purchase www.speedepart.com...
- Page 25 ITEM PART NO. DESCRIPTION fastest purchase www.speedepart.com...
- Page 26 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION fastest purchase www.speedepart.com...
-
Page 27: Wiring Diagram
WIRING DIAGRAM BLACK WIRE FROM MODULE TO ENGINE GROUND BLACK WIRE FROM ON/OF SWITCH TO MAGNETO GROUND ENGINE ON/OFF SWITCH BLACK WIRE FROM ON/OFF SWITCH TO ENGINE GROUND SWITCH BLACK WIRE FROM MODULE TO SWITCH RED WIRE FROM MODULE TO MAGNETO GROUND ENGINE BLACK WIRE FROM MODULE... - Page 28 fastest purchase www.speedepart.com REPAIR PARTS...
