Agri-Fab 45-0362 Owner's Manual

42" rough cut trailmower
Hide thumbs Also See for 45-0362:
Table of Contents

Advertisement

Quick Links

For Agri Fab Discount Parts Call 606-678-9623 or 606-561-4983
Agri-Fab
OWNERS
MANUAL
Model No.
45-0362
CAUTION:
Read Rules for
Safe Operation
and Instructions
Carefully
PRINTED IN U.S.A.
¨
NOTE: Your mower deck will require a 12 volt battery to operate.
This battery is NOT included with the deck but must be purchased
separately. Any 12 volt tractor battery with about 230 cold cranking
amps. will operate the machine.
• Safety
• Assembly
• Operation
• Maintenance
• Parts
the fastest way to purchase parts www.speedepart.com
www.mymowerparts.com
42" ROUGH CUT
TRAILMOWER
FORM NO. 49202 (3/04)

Advertisement

Table of Contents
loading

Related Manuals for Agri-Fab 45-0362

Summary of Contents for Agri-Fab 45-0362

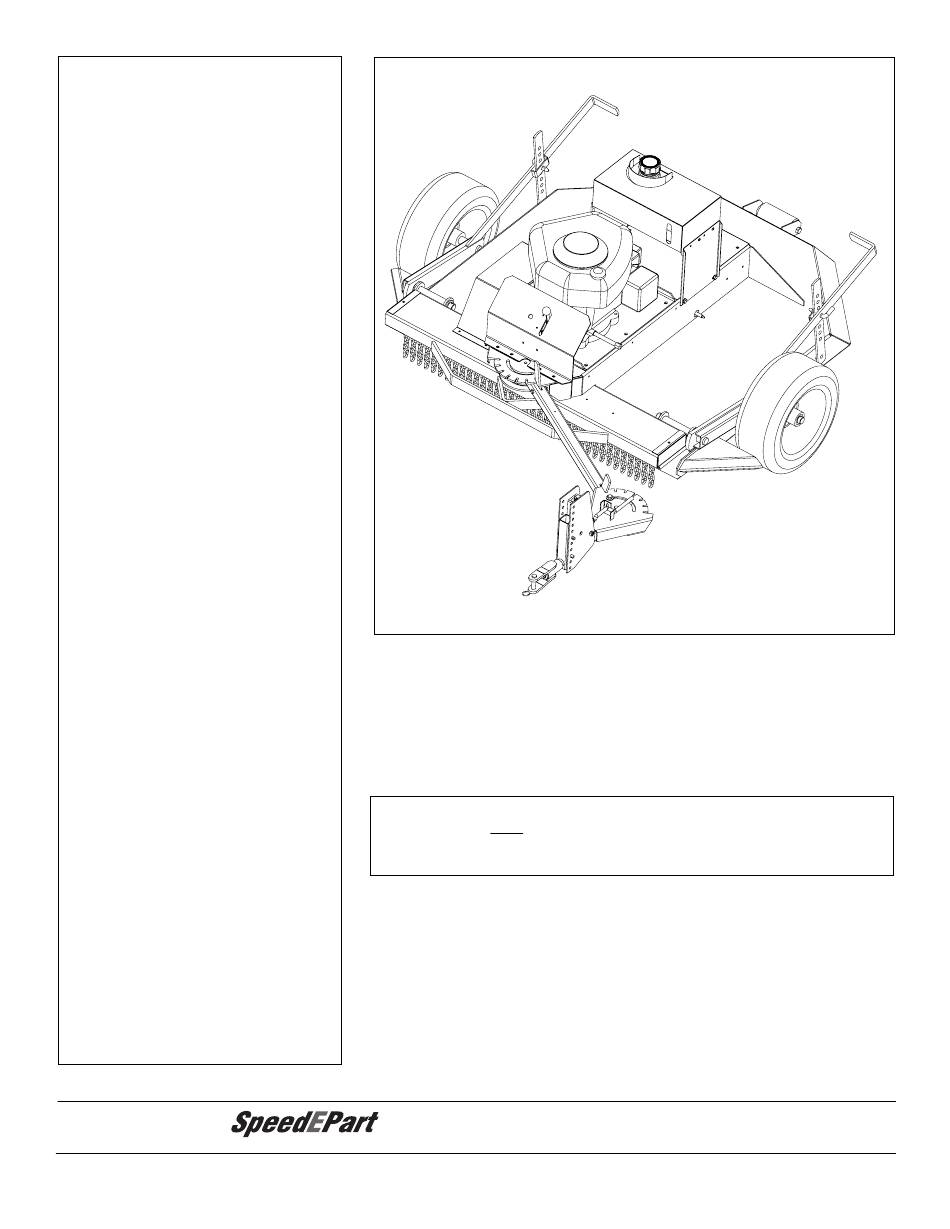

  • Page 1 For Agri Fab Discount Parts Call 606-678-9623 or 606-561-4983 ¨ Agri-Fab OWNERS MANUAL Model No. 45-0362 42" ROUGH CUT TRAILMOWER CAUTION: NOTE: Your mower deck will require a 12 volt battery to operate. This battery is NOT included with the deck but must be purchased Read Rules for separately.
