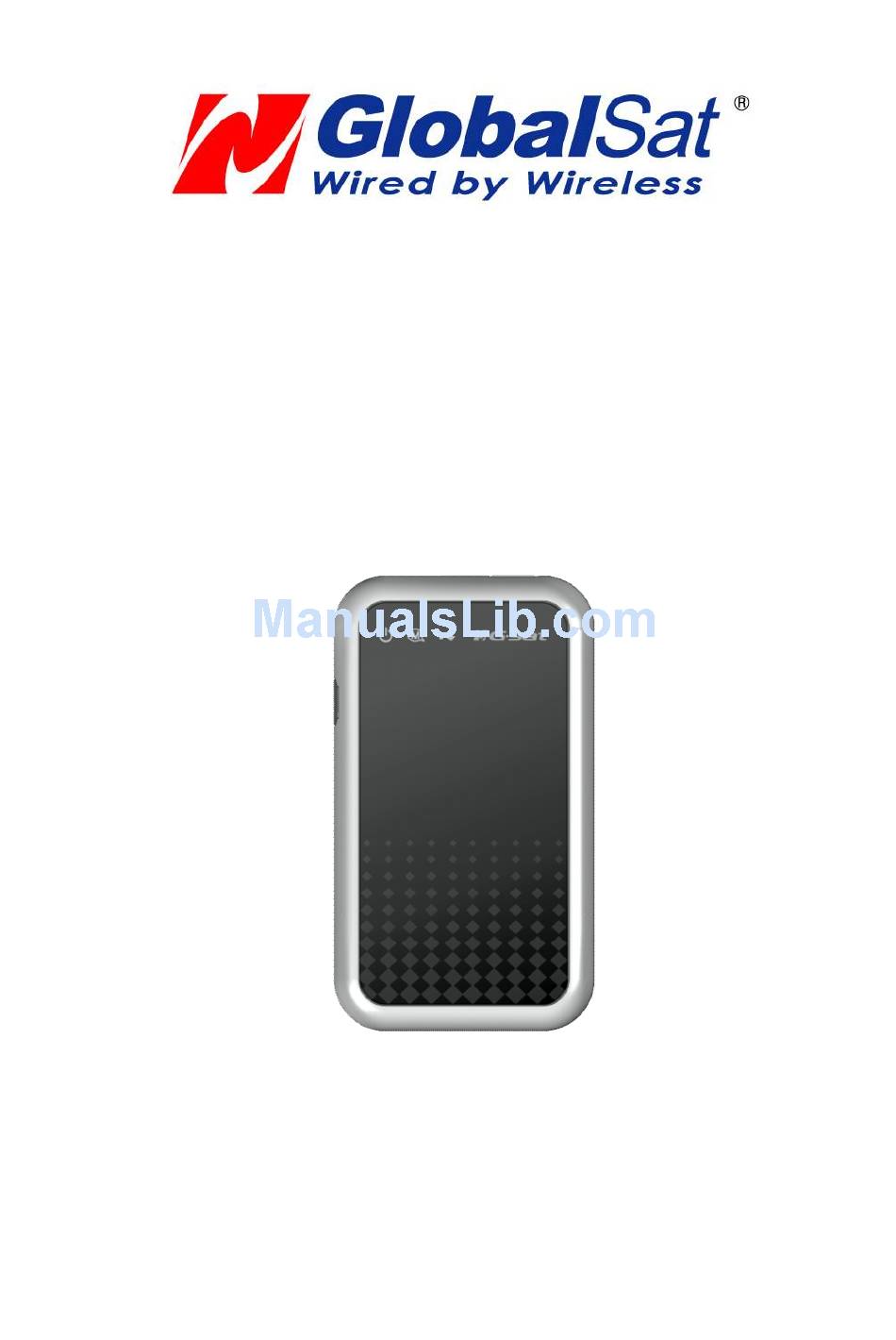

DG-200 GPS Data Logger

User Manual

Version: 1.1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Globalsat DG-200

Summary of Contents for Globalsat DG-200

  • Page 1: User Manual

    DG-200 GPS Data Logger User Manual Version: 1.1...

  • Page 2: Table Of Contents

    DG-200 Operation ................7 DG-200 Power Off ................7 DG-200 Connection with PC ............. 7 Chapter 3: DG-200 PC Utility Installation ......9 3-1 PC Utility Function ................. 9 3-2-1 Install USB Driver ....................9 3-2-2 Install PC Utility ....................12 Chapter 4：DG-200 PC Utility Operation ......

  • Page 3: Chapter 1：Function And Specification

    Chapter 1：Function and Specification Function and Feature  DATA LOGGER for recording the traveled path data  Compact and portable, 70mm x 40mm x 9mm,36 g  Built-in 4M bytes memory, could save up to 190,000 points (with location/ time/ date/ speed) ...

  • Page 4: Specifications

    Specifications Electronics GPS Chipset SiRF StarIII GPS Antenna Built-in GPS antenna Operation Time Up to 20 hours Charging Time 3 hours Charging port Mini USB port @350mA Power Button Function Turn on/ turn off Press and hold for 3 seconds to turn on/ turn off Save Under power-on status, short click to save the GPS location data On : no GPS fix...
  • Page 5 GPS Specification Electronics GPS chipset SiRF StarIII L1， 1575.42 MHz Frequency C/A Code 1.023 MHz chip rate Channel 20 channel all-in-view tracking Sensitivity Tracking:-159dBm Accuracy 10 Meter，2D RMS Horizon Position 1-5 Meter，2D RMS，WAAS Speed 0.1meter/second Time 1 micro-second synchronized to GPS time Datum Datum Default: WGS-84...

  • Page 6: Accessories

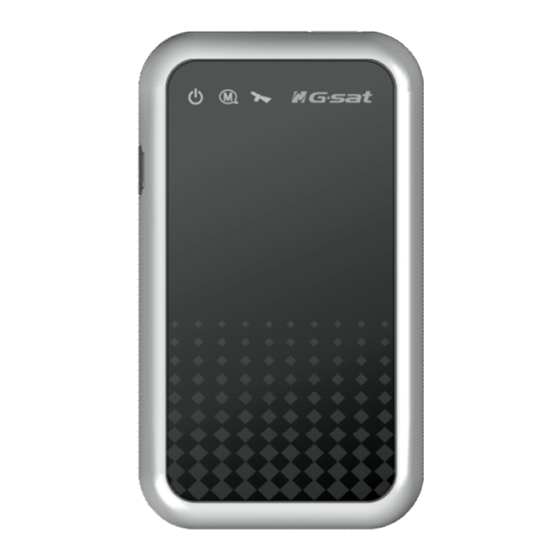

    Accessories Quick Guide DG-200 Main Unit USB Cable Hang Tape (Option) Charger (Option) Note： If any accessories is lost or damaged, please contact with your local dealer. Appearance Power/ Save button Power LED (Red/ orange) Mini USB (Charging/ transmitting) GPS LED (Green)

  • Page 7: Chapter 2：Start To Use

    Chapter 2：Start to Use DG-200 Operation Press and hold the power button for three seconds to turn on DG-200. Then you would see GPS LED on. After getting GPS fix and starting to record traveled path, GPS LED would flash.
  • Page 8 USB Cable connection...

  • Page 9: Chapter 3: Dg-200 Pc Utility Installation

    Chapter 3: DG-200 PC Utility Installation 3-1 PC Utility Function Uploading the Upload the traveled path data into PC and save it recorded data (1) KML format for Google Earth Saving data into (2) Show on Google Maps (3) GPX format file。...
  • Page 10 Click on “Next.” Choose “I accept..” and click on “Next” button.
  • Page 11 Click on “Finish” button.

  • Page 12: Install Pc Utility

    3-2-2 Install PC Utility Put CD into CD ROM. And click on Choose I Agree. Click on Next button.
  • Page 13 If you do not want to install the PC utility in the default location, please click the “Browse” button and direct to the location of you’d like to install the utility. Otherwise, just click on the “Install” button. Click on “Close” button when you see the screenshot below.

  • Page 14: Chapter 4：Dg-200 Pc Utility Operation

    Chapter 4：DG-200 PC Utility Operation 4-1 Main Screen Introduction  Menu bar  Tool bar： Open the file in the PC Save data to PC Filter function Connect DG-200 with PC Disconnect DG-200 from PC Upload DG-200 traveled data Delete all data in DG-200...

  • Page 15: Pc Connection Setting

    Show the selected point of the traveled data list on Google Map 4-2 PC Connection Setting Start to connect Power on DG-200. Connect DG-200 with PC by USB cable. Double click the icon Or select [Start][Programs][DG200]DG-200 You would see the main screen of DG-200 PC Utility as the screenshot below.
  • Page 16 Go to [Setup][Serial port] Select the COM port that connect DG-200 You could check the COM port at Start  Settings  Control Panel  System  Hardware  Device Manager Click the icon on tool bar.

  • Page 17: Downloading And Setting The Traveled Path Data

    When DG-200 is connecting to the PC utility, the tool bar would be displayed as . If tool bar does not be shown as the screenshot, please check if the COM port is correct at “Device Manager.” 4-3 Downloading and setting the traveled path data Connect PC and DG-200 according to 4-2.
  • Page 18 Downloading the traveled path data. The downloaded data would be displayed on the traveled path data list. Each data would be displayed the date and the starting time. You could display the traveled path data on Google Map by selecting the data in the traveled path list.
  • Page 19 You could display any point on Google Map by click on that point in the traveled path information field. That point would be marked as on Google map. The manually saved points would be displayed on Google map at the same time. You could select several traveled paths to display on Google map.

  • Page 20: Filter The Traveled Points By

    You could check the details of each point in the traveled path information field. The manually saved points would be marked with start signs. 4-4 Filter the Traveled Points by Connect PC and DG-200 according to 4-2. And download the traveled path data according to 4-3. Click on the icon on tool bar.

  • Page 21: Save / Read The Traveled Path Data

    Select would display all the manually saved points. 滑鼠左鍵雙擊紅框處,Google Map 視窗上會出現 資料點位置,此時手動紀錄點之 圖示同時進行顯示. 4-5 Save / Read the Traveled Path Data icon or selecting [File]  You could save the traveled path data by clicking on [Save As] You could saved the data in the format of *.gsr or *.kml or *gpx or *.csv.

  • Page 22: Setting The Traveled Points

    [File]  [Open]. You could only open the file of *.gsr format. 4-6 Setting the Traveled Points Connect DG-200 and PC according to the steps in 4-2. icon on tool bar or select [Device]  [Setting…] Click on You would see the screenshot as below.

  • Page 23: Dg-200 Pc Utility Auto Update

    Show the present memory usage status. DG-200 could not record any points when usage is up to 100%. 4-7 DG-200 PC Utility Auto update DG-200 PC Utility had auto update function. When your PC/NB is connected to internet, DG-200 PC Utility will be search and download the newest program to install.

  • Page 24: Chapter 5: Troubleshooting

    Chapter 5: Troubleshooting It requires more time to get GPS fix while DG-200 is moving. Please keep DG-200 stationary when powering on DG-200. This will shorten the time to get a GPS fix. Keep DG-200 away from excessive moisture and extreme temperatures.

  • Page 25: Appendix 1：Fcc Notices

    Appendix 1：FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference， and (2) This device must accept any interference received， including interference that may cause undesired operation.
