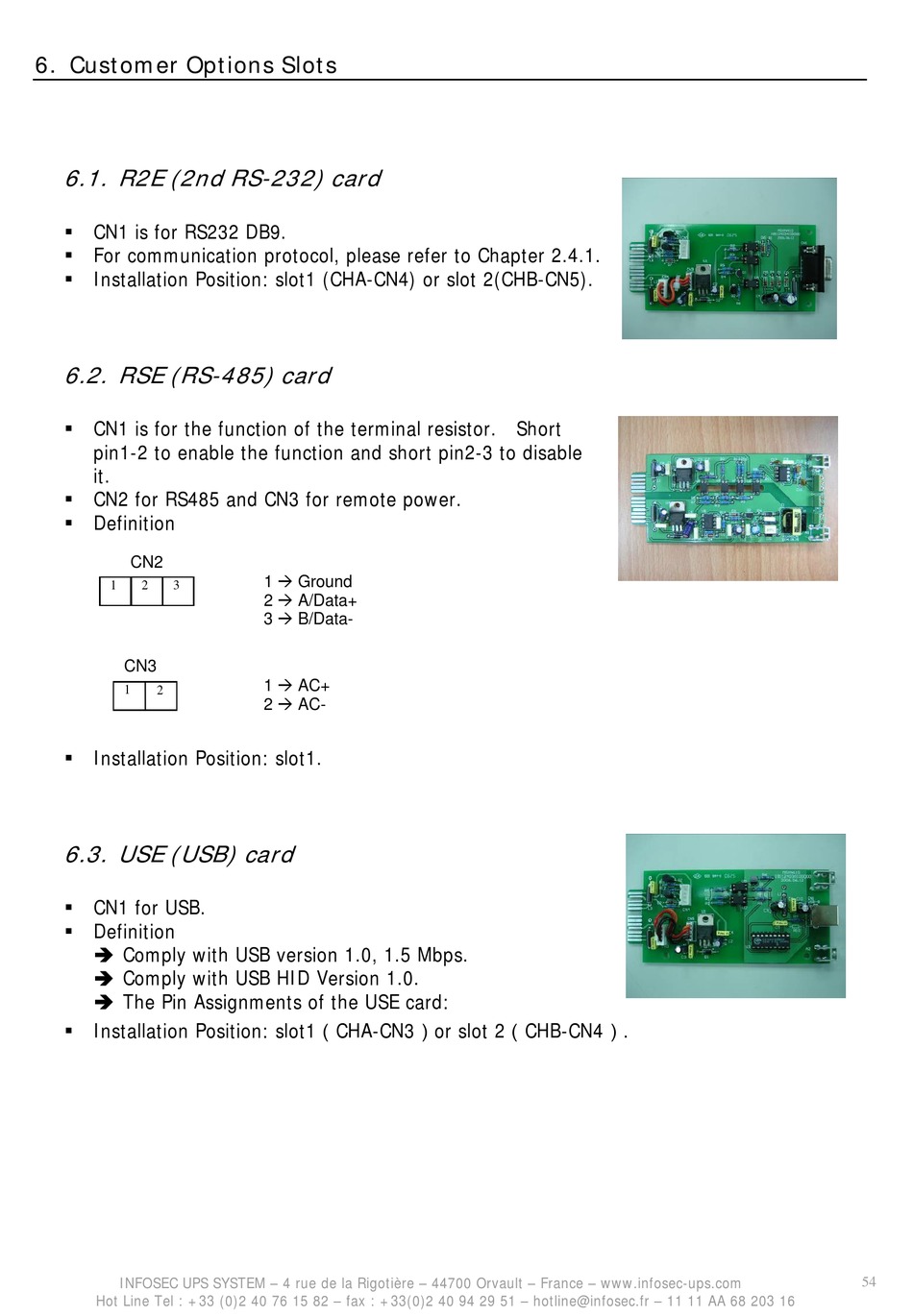

6. Customer Options Slots

6.1. R2E (2nd RS-232) card

 CN1 is for RS232 DB9.
 For communication protocol, please refer to Chapter 2.4.1.
 Installation Position: slot1 (CHA-CN4) or slot 2(CHB-CN5).

6.2. RSE (RS-485) card

 CN1 is for the function of the terminal resistor. Short
pin1-2 to enable the function and short pin2-3 to disable
it.
 CN2 for RS485 and CN3 for remote power.
 Definition
CN2
1 2 3
CN3
1
2
 Installation Position: slot1.
6.3. USE (USB) card
 CN1 for USB.
 Definition
 Comply with USB version 1.0, 1.5 Mbps.
 Comply with USB HID Version 1.0.
 The Pin Assignments of the USE card:
 Installation Position: slot1（CHA-CN3）or slot 2（CHB-CN4）.
