8. In case of failure in self-test, the LCD display will illustrate from Drawing D to drawing
E2, then an error code or error status will be shown on the screen.
9. Your start-up operation of the UPS is completely now. Make sure the UPS is plugged
onto the wall receptacle for charging at least 8 hours and the batteries of the UPS are
fully charged.
3.5.2. Start-up in Battery Mode (Cold Start)
1. Make sure the UPS you have has already been installed at least 1 set (20pcs) of 12V
batteries.
2. Push the UPS "ON" Switch
the buzzer sounds twice. The LCD display will illustrate from drawing A to drawing G,
and keep awake for approx. 15 seconds.
3. Press the UPS "ON" Switch
illustrates from drawing G to drawing H, then the UPS will be in self-test Mode. The UPS
may offer energy to the output in a minute, and the LCD display illustrates as drawing I.
In case of failure in pushing the UPS "ON" Switch within 15 seconds, the UPS will
automatically turn off. You then have to go through step 1 to 3 once again.
INFOSEC UPS SYSTEM – 4 rue de la Rigotière – 44700 Orvault – France – www.infosec-ups.com
45
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 11 11 AA 68 203 16

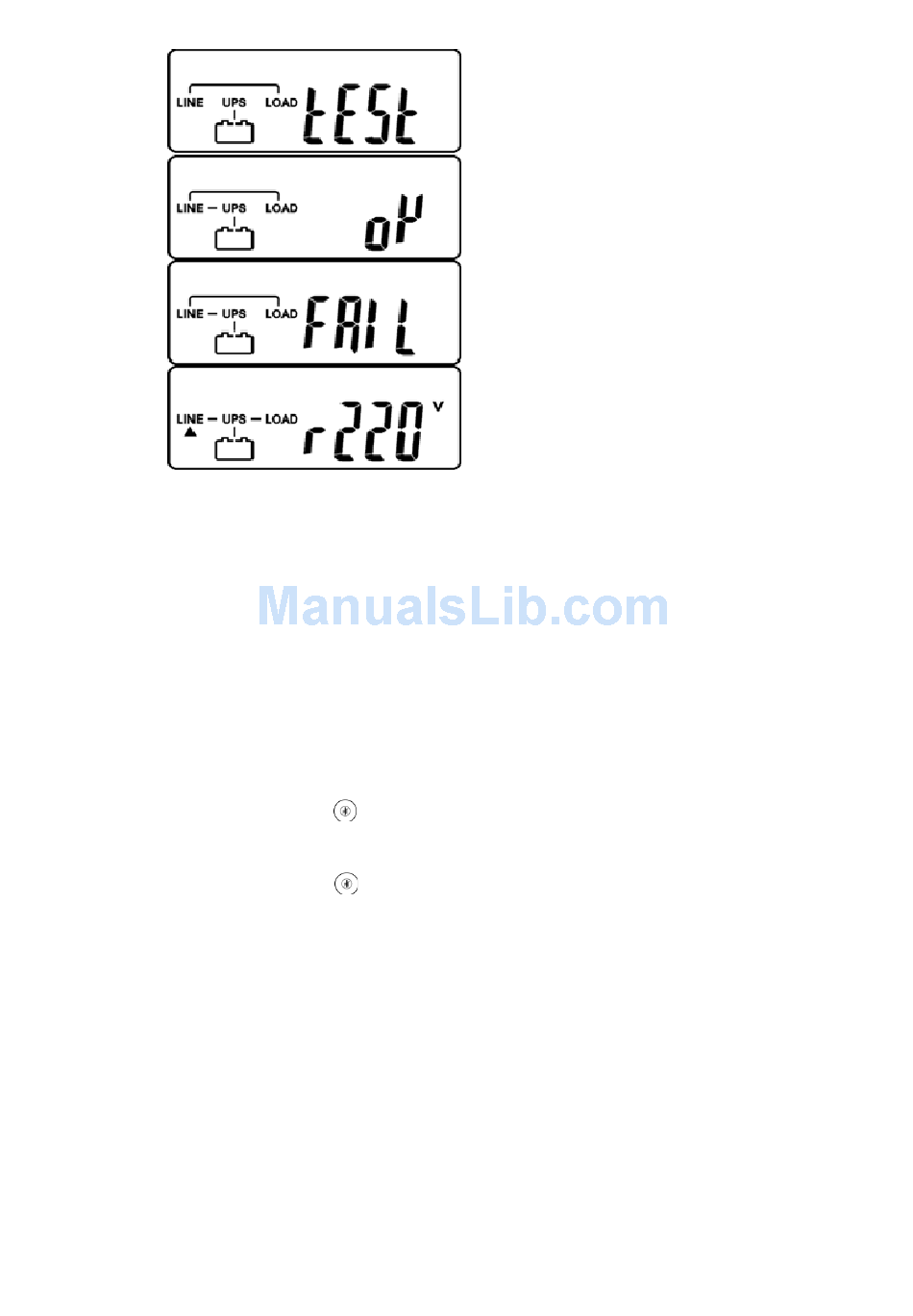

* It shows "OK" in self-test.
