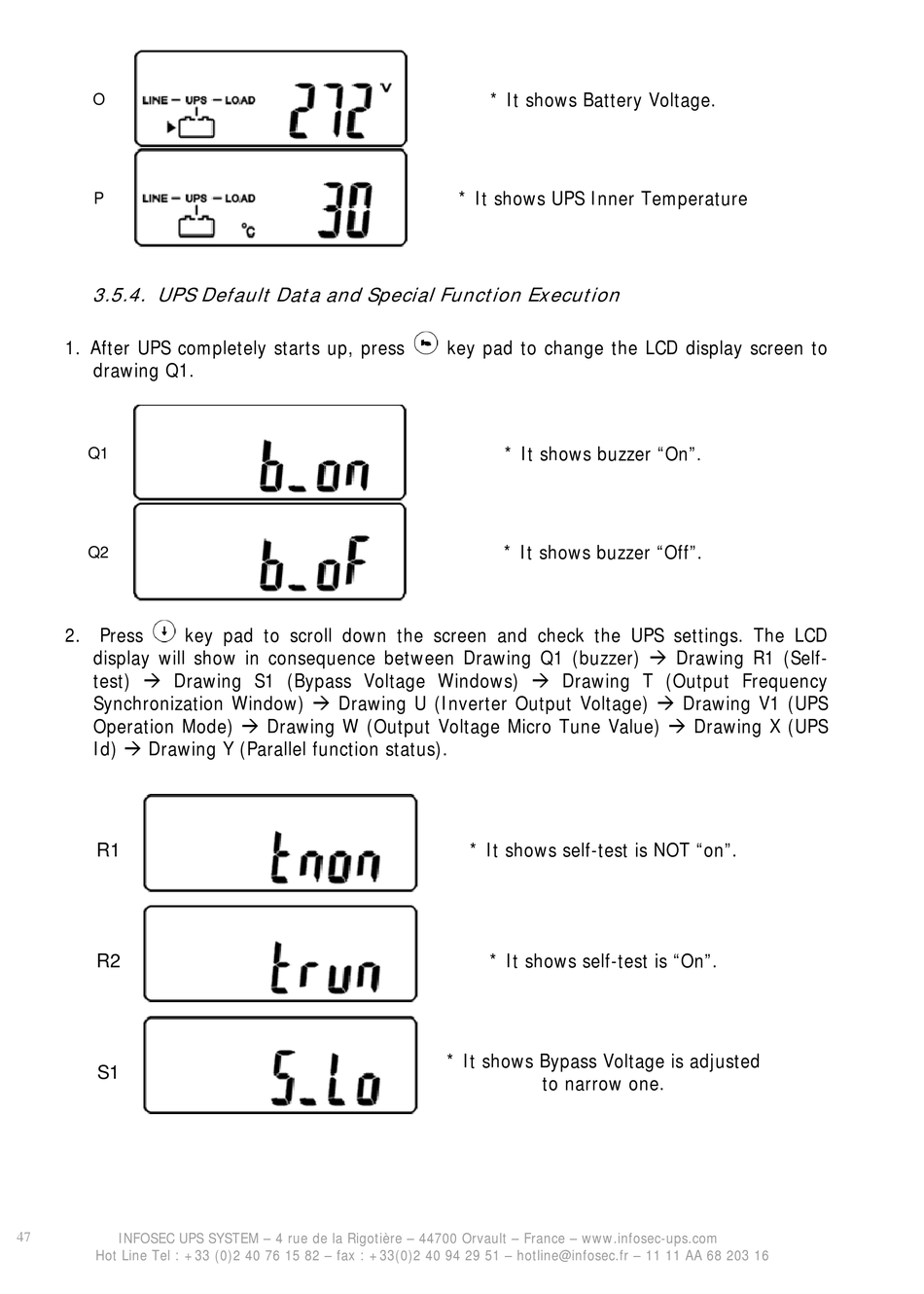

3.5.4. UPS Default Data and Special Function Execution
1. After UPS completely starts up, press
drawing Q1.
Q1
Q2
2. Press
display will show in consequence between Drawing Q1 (buzzer)  Drawing R1 (Self-
test)  Drawing S1 (Bypass Voltage Windows)  Drawing T (Output Frequency
Synchronization Window)  Drawing U (Inverter Output Voltage)  Drawing V1 (UPS
Operation Mode)  Drawing W (Output Voltage Micro Tune Value)  Drawing X (UPS
Id)  Drawing Y (Parallel function status).
R1
R2
S1
INFOSEC UPS SYSTEM – 4 rue de la Rigotière – 44700 Orvault – France – www.infosec-ups.com
47
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 11 11 AA 68 203 16
key pad to scroll down the screen and check the UPS settings. The LCD
* It shows Battery Voltage.
* It shows UPS Inner Temperature
key pad to change the LCD display screen to
* It shows buzzer "On".
* It shows buzzer "Off".
* It shows self-test is NOT "on".
* It shows self-test is "On".
* It shows Bypass Voltage is adjusted
to narrow one.
