INFOSEC E6 LCD-RT User Manual page 47

G
H
I

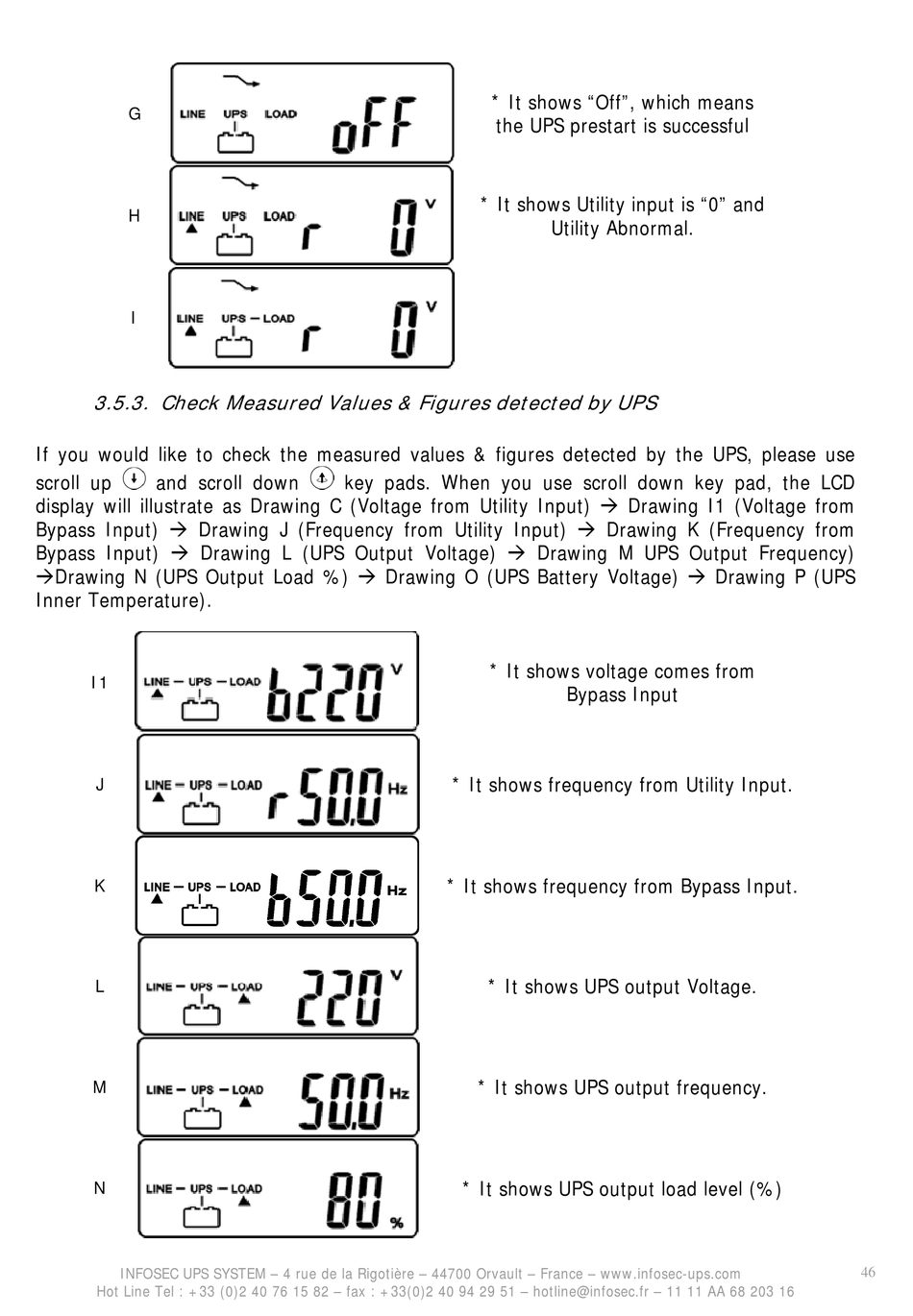

3.5.3. Check Measured Values & Figures detected by UPS
If you would like to check the measured values & figures detected by the UPS, please use
scroll up and scroll down
display will illustrate as Drawing C (Voltage from Utility Input)  Drawing I1 (Voltage from
Bypass Input)  Drawing J (Frequency from Utility Input)  Drawing K (Frequency from
Bypass Input)  Drawing L (UPS Output Voltage)  Drawing M UPS Output Frequency)
Drawing N (UPS Output Load %)  Drawing O (UPS Battery Voltage)  Drawing P (UPS
Inner Temperature).
I1
J
K
L
M
N
INFOSEC UPS SYSTEM – 4 rue de la Rigotière – 44700 Orvault – France – www.infosec-ups.com
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 11 11 AA 68 203 16
* It shows "Off", which means
the UPS prestart is successful
* It shows Utility input is "0" and
key pads. When you use scroll down key pad, the LCD
* It shows voltage comes from
* It shows frequency from Utility Input.
* It shows frequency from Bypass Input.
* It shows UPS output Voltage.
* It shows UPS output frequency.
* It shows UPS output load level (%)
Utility Abnormal.
Bypass Input
46
