II. Installation Instructions

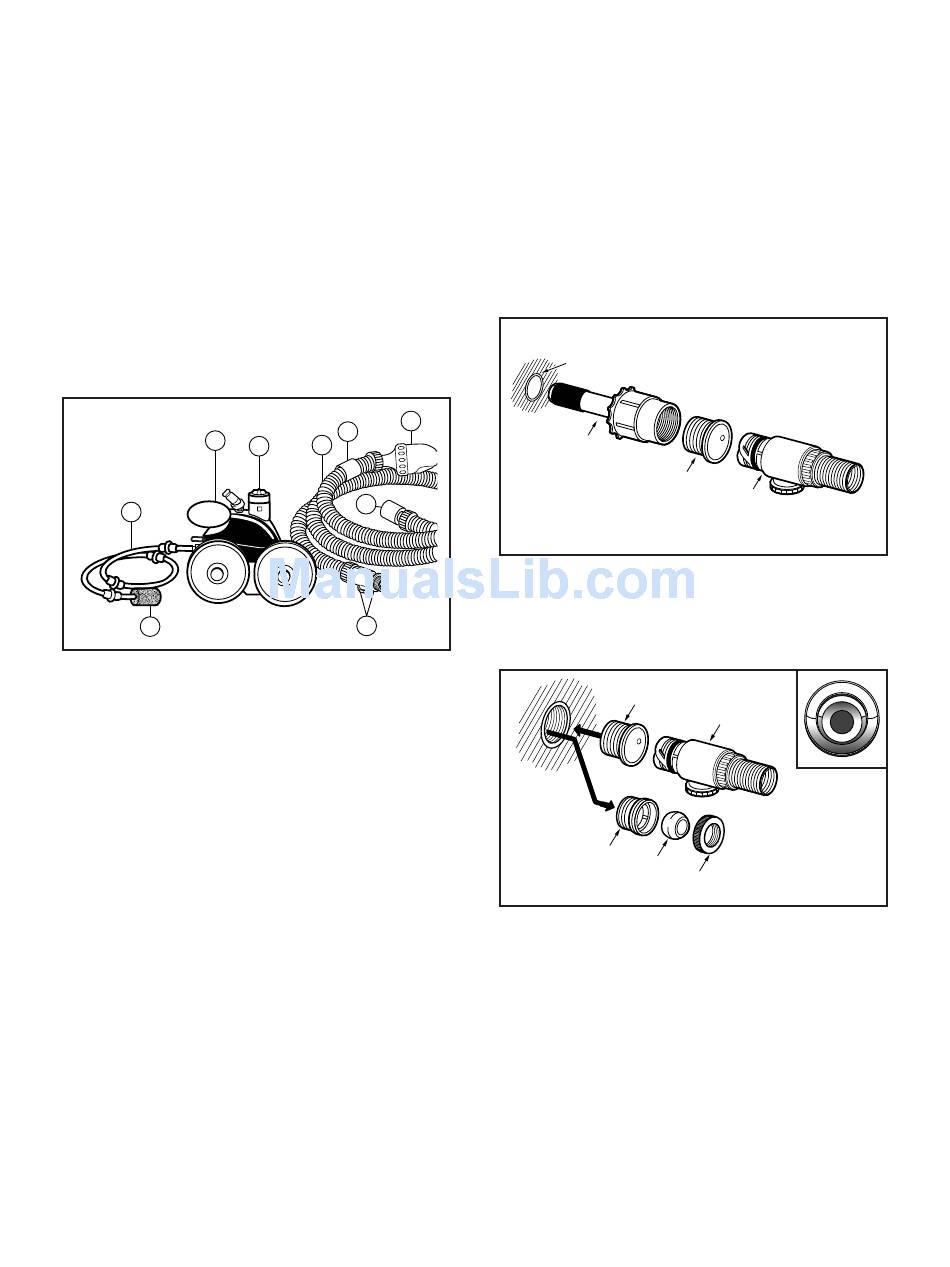

A. Polaris 360 Components
The Polaris 360 box contains:
1. All-Purpose Bag
2. Sweep Hose
3. Cleaner Head
4. Complete Feed Hose
5. Three Floats
6. Back-up Valve
7. Pressure Tester
8. Sweep Hose Scrubber
9. Quick Disconnect with Universal
Wall Fitting
3
2
8
Remove only the feed hose assembly from
the box until you have determined that you
have sufficient water pressure.
See Sections B - D below.
B. Pool Connections
The Polaris 360 comes equipped to connect to a
1-1/2" female pipe fitting on a dedicated return
line. An adjustable valve and pressure gauge
should be installed to allow you to adjust the
water flow to the Polaris. For further information,
contact our Customer Service Department at
1-800-VAC-SWEEP (USA and Canada only).
If the pool doesn't have a dedicated return line,
you may be able to connect the Polaris 360 to
one of the other return lines using a special
adapter kit. The following is a list of the adapter
kits available for purchase at your participating
Polaris dealer. All of the kits connect to plastic
pipe only.
6
5
4
1
7
9
For pools with return lines (without pipe threads)
that are cut off flush with the pool wall and the
pipe size is:
•
1" in diameter, obtain the 1" Stub Pipe
Connection Kit (part #9-100-8002).
•
1-1/4" in diameter, obtain the 1" Stub Pipe
Connection Kit (part #9-100-8002)
and the 1-1/4" Sleeve Kit (part #8-841-00).
•
1-1/2" in diameter, obtain the 1-1/2" Stub
Pipe Connection Kit (part #9-100-8003).
1" Return Line
xpansion
Connector
Wall Fitting
For pools with return lines that have directional
eyeball fittings, which when removed expose a
1-1/2" threaded socket, obtain the Eyeball Fitting
Connection Kit (part #9-100-8001).
Universal
Wall Fitting
yeball
yeball
Seat
For pools with return lines that have directional
eyeball fittings, which when removed expose
something other than a 1-1/2" threaded socket,
obtain the Eyeball Adapter Connection Kit
(part #9-100-8005).
4
Universal
Quick
Disconnect
Quick
Disconnect
Retainer
Ring
