6.

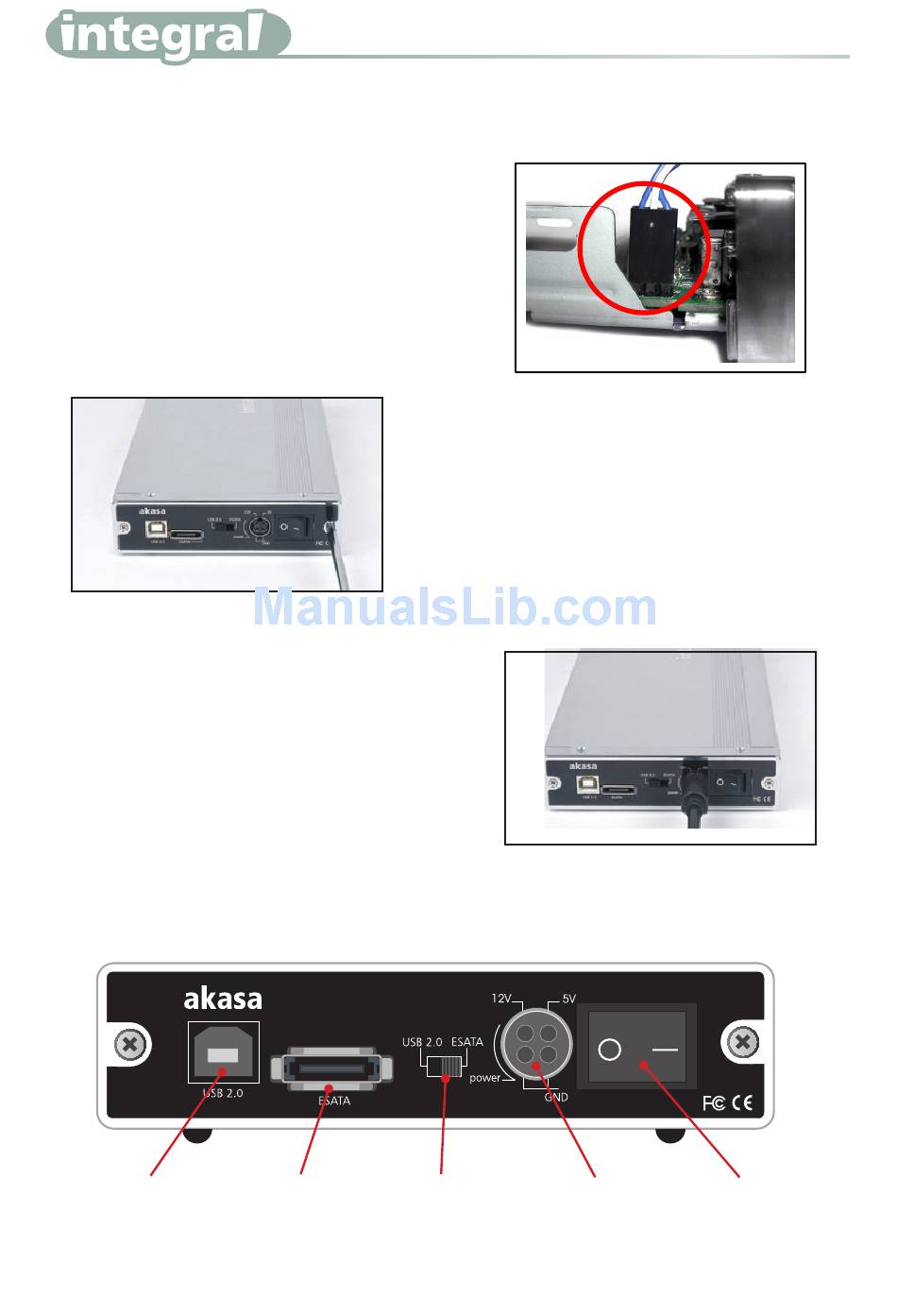

Before fully inserting the tray, connect the HDD activity LED to
the -pin connector.
8.
Connect the round end of the DC power cord to the back
of the enclosure, making sure it is correctly aligned. Plug
the AC cable into the power pack, and then connect the
supplied adapter into an available AC socket.
NOTE:
Please ensure that you are using the supplied power
pack only.
9.
The eSATA back panel connector and switch arrangement.
NOTE:
Please check the "USB CONNECTION or eSATA CONNECTION " chapter for the USB2.0 /eSATA switch
usage.
USB port
5
7.
Insert the tray completely into the housing and secure the
enclosure face plate to the enclosure using the screws
provided.
eSATA port
USB/eSATA
switch
Harddisk Installation
DC input
Power
switch
