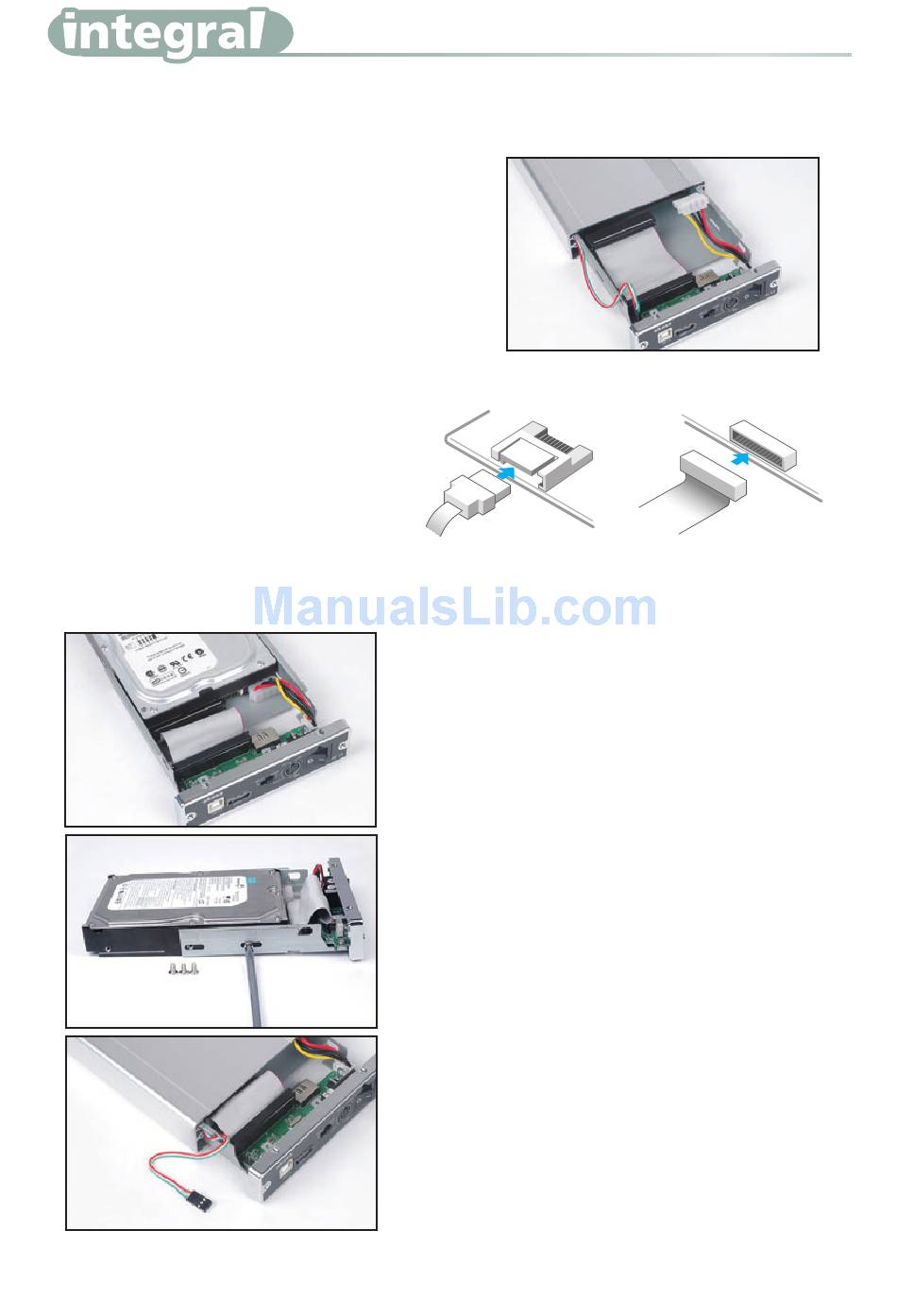

Hard Disk Installation

1.
Open the back of the enclosure by undoing
the securing screws and sliding the tray out
of the aluminum housing.
NOTE: Disconnect the LED cable before
completely sliding the HDD tray out .
2.
Before installing the hard disk in the enclosure,
please check your hard disk interface type. To
install the SATA hard disk you need to ex-
change the power and data cables (included).
PATA is the default confiiguration.
NOTE: The installation steps show the IDE
interface but the procedure for SATA drives
follows the same steps.
4
SATA
3.
Place the HDD in the tray aligning the correct IDE and
power connectors. Then connect the IDE and power
connectors to the HDD.
NOTE:
If you use IDE drive, make sure the jumper
setting of the hard drive is set to master mode,
please consult the hard drive guide for the jumper
setting.
4.
Position the HDD in the tray so that the mounting
holes on the HDD line up with the tray mounting
holes. Use the four screws supplied in the
mounting kit to secure the HDD in the tray.
5.
Gently insert the tray into the enclosure aligning
the guide rail with the grooves of the enclosure
housing.
Harddisk Installation
IDE
