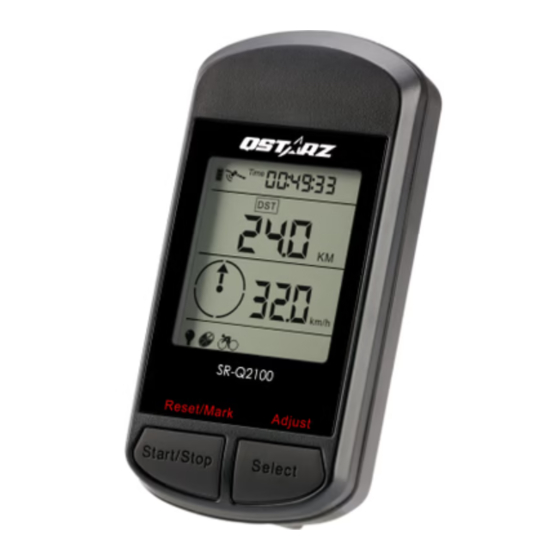

Qstarz SR-Q2100 User Manual

Gps bike computer
Hide thumbs Also See for SR-Q2100:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR-Q2100 and is the answer not in the manual?

Questions and answers

Related Manuals for Qstarz SR-Q2100

Summary of Contents for Qstarz SR-Q2100

  • Page 3: Table Of Contents

    6-1. I Q2100 ............13 NSTALL THE DRIVER AND SOFTWARE UTILITY FOR 6-2. I ......................17 NSTALL OOGLE ARTH 7. START TO USE SR-Q2100..................... 18 7-1. C ......................18 HARGE THE BATTERY 7-2. B .......................... 18 IKE MODE 7-3. L ......................

  • Page 4: Overview

    140℉/60℃ to prevent the battery inside SR-Q2100 from overheating, exploding or burning itself. The built in battery inside the SR-Q2100 should be recycled.  It is recommended to turn SR-Q2100 off in the hospital. Wireless GPS receiver may interfere with the medical equipments which use radio frequency.

  • Page 5: Features

    Explore 2000 ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. solvents, chemicals, alcohol, or strong detergents.  Do not attempt to open SR-Q2100 by yourself. Unauthorized hacking may damage the unit, and void your warranty. On Battery & Safety  Charging time is about 4 hour typically for this unit. We suggest disconnecting the unit from the cigarette charger or AC charger after the unit has been fully charged.

  • Page 6: Product Specification

    <18,000m Velocity <515m/sec Acceleration <4g Protocol Default: NMEA-0183 GPS Output Data GGA, GSA RMC Data bit : 8, stop bit : 1(Default) Baud Rate 4800~38400 bps Power Built-in rechargeable Li-ion battery, Up to 25 hrs after fully charged ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...

  • Page 7: Hardware Introduction

    Operating Temperature - 20 ℃ to + 75 ℃ Storage Temperature 5. Hardware Introduction 5-1. Appearance 1. Power/Mode Select Button 2. Start/Stop/Mark/Reset Button 3. Select/Adjust Button 4. Power jack (mini USB type) 5. Internal antenna 6. LCD Screen ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...

  • Page 8: Hardware Function

    -Press and hold for 1 sec to power On -Press and hold for 3 sec to power Off. Power/Mode select Button -After power on SR-Q2100, press and hold for 1 sec to switch between Bike/Location Back/Route Plan mode. After power on SR-Q2100:...

  • Page 9: Lcd Screen

    (Flash) Show Current Time Distance To Go Odometer Distance Azimuth Temperature Temperature Unit Distance unit Directional Arrows MAX/AVG Maximum/Average Speed Calorie Unit Speed Unit LCD Backlight Enabled Storage indicator Bike Mode Location Back Mode Route Mode Setup Mode ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...

  • Page 10: Charging Your Battery

    ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. 5-4. Charging your battery For the first time using the SR-Q2100, please charge battery until it is fully charged. Take the power cable and connect it to the power jack (mini USB type) and recharge through USB cable, travel charger, or car cigarette adaptor. This will begin to charge the battery.

  • Page 11: Bike Mount Installation

    Explore 2000 ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. 5-5. Bike Mount installation Part List: Device cradle *1 Rubber pad* 1 Cable tie *2 Installing the bike mount on the horizontal bar As shown in the figure, insert the device cradle into the rubber pad. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
  • Page 12 SR- Q2100 ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. As shown in the figure, insert the two cable ties into the device cradle. Fasten the cable ties around the horizontal bar of the bicycle. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
  • Page 13 Beyond Navigation Explore 2000 ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. Cut off the extra cable ties. Upon completion, slide in Q2100 along the direction indicated by the arrow in the figure until it snaps. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
  • Page 14 SR- Q2100 ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. Installing the device cradle on the vertical bar As shown in the figure, insert the device cradle into the rubber pad. As shown in the figure, insert the two cable ties into the device cradle. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
  • Page 15 Beyond Navigation Explore 2000 ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. Fasten the cable ties around the vertical bar of the bicycle. Cut off the extra cable ties. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...

  • Page 16: Setup Sr-Q2100

    Upon completion, slide in Q2100 along the direction indicated by the arrow in the figure until it snaps. 6. Setup Q2100 6-1. Install the driver and software utility for Q2100 System Requirement (compatible with Microsoft Windows XP / Vista/Win7) Recommended Minimum System Requirement System Requirement ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
  • Page 17 - 800x600, "16-bit High Color" screen - 1280x1024, "32-bit True Color" screen Please insert the software CD to your computer, and find the folder “Utility\Qstarz PC Suite\”. Double click “Qstarz_PC_Suite_installer_Q2100.exe” to install the software utility package. This software package contains USB driver, Qtravel , QSports™, and GPS Planner.
  • Page 18 SR- Q2100 ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. 2. System would pop up the utility installation dialog. Please click <Next> for the next step. 3. Please select “QSports”, “QTravel”, ”QPlanner”, “GPS Device Driver”, and then click <Next> to the next step. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
  • Page 19 4. Click <Next> if you want to install the program in default target folder or you can click <Browse> to change the install folder. 5. Give a folder’s name for quick links in start menu and click <Install> to install the program. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...

  • Page 20: Install Google Earth

    Q2100 supports showing your travel path directly on Google Earth. Please go to http://earth.google.com for the free download of Google Earth, and then install it to your computer. For the operation procedure of Google Earth, please refer to http://earth.google.com/support/ ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...

  • Page 21: Start To Use Sr-Q2100

    Beyond Navigation Explore 2000 ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. 7. Start to use SR-Q2100 7-1. Charge the battery Please charge the device for at least 4 hours before you begin using it. A fully charged battery can last up to 25 hours continuously operation.
  • Page 22 5. After pressing the Select button a four time, the displayed items become: 1) Current local time. 2) Current azimuth and arrow pointing north: Shown as AZM and ° 3) Current speed shown as mi/h or km/h 4) Directional compass arrow ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...

  • Page 23: Location Back Mode

    In Bike mode, press the “Power” button to switch to Location back mode. At startup, waypoint “A” is displayed. Press the “Select” button to cycle through waypoint A~D. When the “Power” button is pressed to exit or to access this mode, it will remember which waypoint (A~D) was last displayed ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
  • Page 24 This item can only be calculated or displayed when GPS coordinates are available. When GPS fix has not been acquired, time is shown as --:--:--, distance as ---- and speed as ---. If speed is less than 5km/hr, time is shown as --:--:--. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...

  • Page 25: Route Plan Mode

    When GPS fix has not been acquired, time is shown as --:--:-- and distance as ----. If speed is less than 5km/hr, time is shown as --:--:-- Estimated time of arrival shown as TOA. Estimated direct line distance shown as DTG in MI or KM. Current waypoint ID between 1~99. Directional Compass arrow pointing north. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...

  • Page 26: Enable/Disable Log Mode

    Setup Mode. Bike Mode: Time, DTG, MAX and AVG, Kcal, ODO Reset, Cycle Unit. Location back Mode: Reset Waypoints A, B, C, D (Mark Waypoint), Cycle Unit. Route Plan Mode: Reset Destinations 01~99(Mark Waypoint), Cycle Unit. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
  • Page 27 (3) Calories. Pressing the "Select" button for the first time Blinking items include: ODO and distance display. Pressing the "Reset/Mark" button (i.e. "Start/Stop" button) resets the odometer. After reset it continues to blink and display the number 0.00. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
  • Page 28 2. Pressing the "Select" button for a third time reverts back to the first blinking item. Under any display mode, holding down "Select" for 3 seconds closes Setup mode and the display then reverts back to user mode. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...

  • Page 29: Start The Software Utility

    7-8. Start the software utility Power on SR-Q2100. Connect SR-Q2100 with your PC by mini USB cable. NOTE: PC Suit (2100) V3 only support Q2100. Any intention to use PC Suit (2100) V3 connecting GPS units other than Q2100 would result in software disconnection automatically.
  • Page 30 ID 1~20 is for route 1; ID 22~30 is for route 2, and so on. These can then be uploaded to the device and used for navigation. Click from <Start> / <All Programs> / <Qstarz PC Suite (2100)> / GPS Planner(2100) Users have to input product key at the first time of use.
  • Page 31 Beyond Navigation Explore 2000 ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. 6. Upload the POIs to your device by clicking on <File>\<Sync To Device>. 7. The POIs are successfully uploaded to your device, you may now use Location Back mode for navigation. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
  • Page 32 To Edit, Remove or change line’s Properties, click on the line to open the info window Edit the line:  Drag the square icon to move the point.  Drag the transparent square icon to add a new point.  Click on the square icon to delete the point. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
  • Page 33 Beyond Navigation Explore 2000 ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. Click on icon to finish Line/Route editing. Upload the Turn Points to your device by clicking on <File>\<Sync To Device>. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
  • Page 34 QSports™ statistics to have good health control. Different sport gear will generate corresponding category for better management and analysis. 1. Click from <Start> / <All Programs> / <Qstarz PC Suite> / QSports Users have to input product key at the first time of use.
  • Page 35 QTravel is the best Geotagging software to integrating your travel track and photo together easily. Support track editing, playback, and import/export Wizard. 1. Click from <Start> / <All Programs> / <Qstarz PC Suite (Q2100)> / Travel Recorder Users have to input product key at the first time of use.

  • Page 36: Useful Reference Applications On Internet

    After the integration, the current GPS coordinates also can be imported to your digital photos for the further application. Please find the installation file for Windows XP/Vista or Symbian system in Qstarz software CD. Go to http://www.locr.com for the further information.

  • Page 37: Gpsbabel

    Beyond Navigation Explore 2000 ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. 8-2. GPSBabel This utility can transfer your NMEA file to GPX file or other format. Please go to http://www.gpsbabel.org for free download. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...

  • Page 38: Sportsmate

    SR- Q2100 ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. 8-3. SPORTSMATE This web site can share your travel log with your friends. Before sharing your trip, please apply a new account first. Please go to http://www.ttsm.com for the further information. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...

  • Page 39: Jetphoto Studio

    This utility can integrate travel log and digital photos by date/time to show your photos on the map directly. After the integration, the current GPS coordinates also can be imported to your digital photos for the further application. Please go to http://www.jetphotosoft.com for free download. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
  • Page 40 SR- Q2100 ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. 8-5. VeoGeo This website allows you to combine travel log and video by date/time to show your video on the map directly. Please go to www.veogeo.com for further information and register for a free new account. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...

  • Page 41: Trouble Shooting

    ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. 9. Trouble Shooting Question Answer SR-Q2100 cannot power Battery low or damaged, please recharge the battery 1. Check satellite icon to see if it is blinking. If it stops blinking, it has acquired fix on satellites. GPS signal not detected? 2.
  • Page 42 This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Spec. is subject to change without prior notice. All rights reserved. All registered trademark is belong to their respected companies. ……………………………………………..………………………………………………………………………………………………………………………………….……………………………………………………………………………. www.Qstarz.com...
