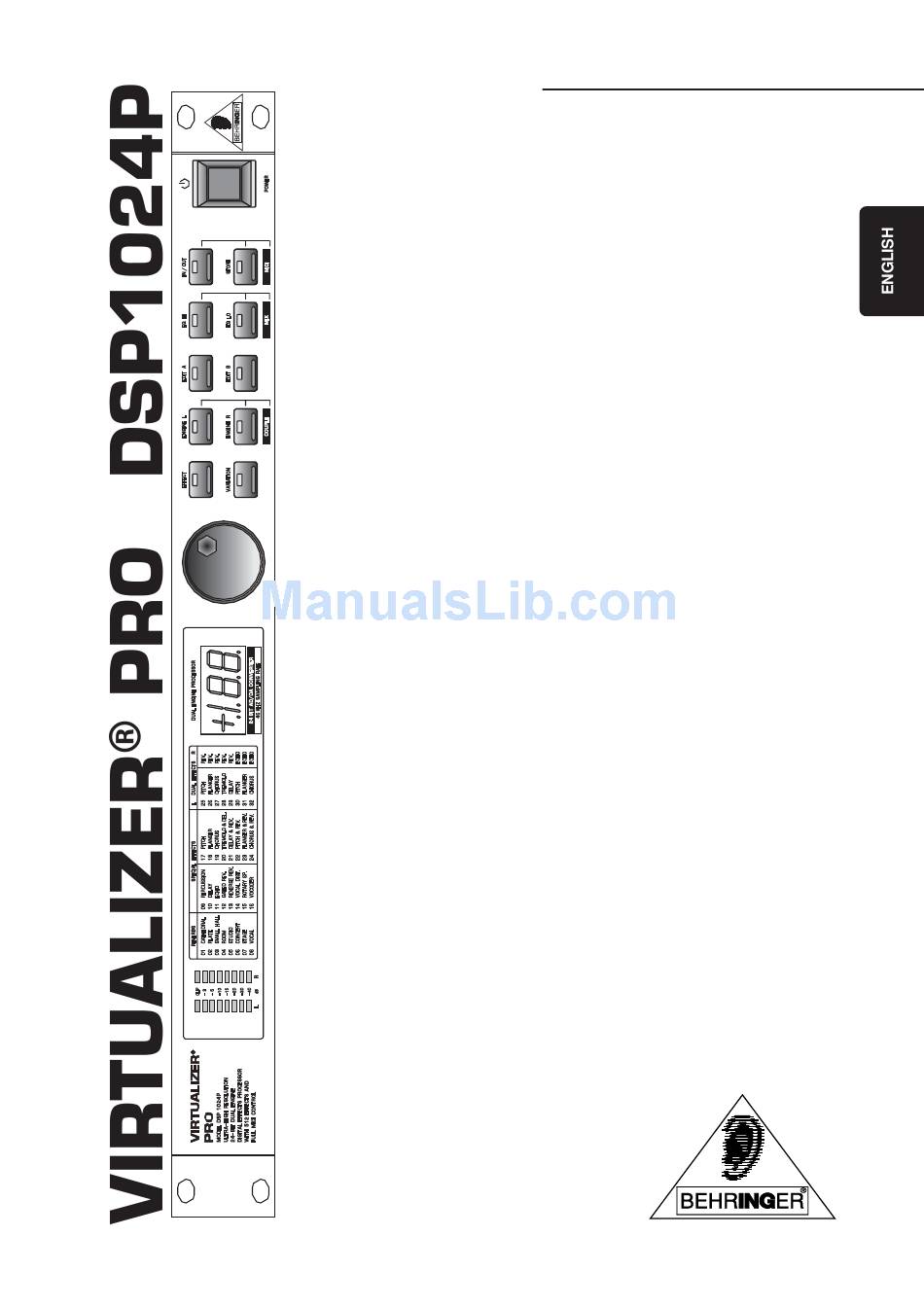

- Page 1 User´s Manual Version 1.0 August 2000 www.behringer.com...
-
Page 2: Safety Instructions
VIRTUALIZER PRO DSP1024P SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electrical shock, do not remove the cover (or back). No user serviceable parts inside; refer servicing to qualified personnel. WARNING: To reduce the risk of fire or electrical shock, do not expose this appliance to rain or moisture. - Page 3 It is our philosophy to share our joy with you, because you are the most important member of the BEHRINGER family. With your highly competent suggestions for new products you’ve greatly contributed to shaping our company and making it successful.
- Page 4 True stereo processing performance allows separation of left and right channels in the stereo field for open-sounding enhancement of the sound sources Free VIRTUALIZER design software allows for total remote control via PC (download at www.behringer.com) 24-bit A/D and D/A converters with 64/128 times oversampling for ultra-high headroom and resolution Internal 24-bit processing with professional 46 kHz sampling rate Servo balanced inputs and outputs on XLR and 1/4"...
-
Page 5: Table Of Contents
VIRTUALIZER PRO DSP1024P TABLE OF CONTENTS 1. INTRODUCTION ........................6 1.1 The design concept ......................... 6 1.2 Before you begin ..........................7 1.3 Control elements ..........................7 1.4 The effect algorithms ........................10 1.4.1 Reverb and delay algorithms ....................11 1.4.2 Special effects ........................12 1.4.3 Modulation and pitch shifter effects .................. -
Page 6: Introduction
To generate reverberation that is very natural in character, we at BEHRINGER developed innovative virtual acoustics algorithms which allow for computing all room and reverb parameters with absolute pro-level quality and a highly natural sound character. -
Page 7: Before You Begin
Shipping claims must be made by the consignee. The BEHRINGER VIRTUALIZER PRO fits into one standard 19" rack unit of space (1 3/4"). Please allow at least an additional 4" depth for the connectors on the back panel. - Page 8 VIRTUALIZER PRO DSP1024P Fig. 1.2: Display section of the DSP1024P The two LED CHAINS display the input signal level in dB, referenced to the internal digital maximum. Please note that the nominal level of the VIRTUALIZER PRO can be selected with the +4 dBu / -10 dBV switch located on the back panel.
- Page 9 VIRTUALIZER PRO DSP1024P Use the ENGINE R key to select the right audio channel (similar to : ENGINE L). If you wish to process the left and right audio channels simultaneously (couple mode), press both ENGINE keys together. In couple mode both ENGINE LEDs light up. Whenever you edit one of the two audio channels and then switch to couple mode, the parameters of the active channel will be copied to the other;...
-
Page 10: The Effect Algorithms
14 days after the date of purchase, so as to be entitled to benefit from our extended warranty. Or use our online registration option available on the World Wide Web under www.behringer.com. These are the VIRTUALIZER PRO’s MIDI connectors (MIDI OUT / THRU / IN). Total remote control is possible via MIDI. -
Page 11: Reverb And Delay Algorithms
VIRTUALIZER PRO DSP1024P 1.4.1 Reverb and delay algorithms Cathedral: Reverb program that generates long and dense reverberation, much like the natural reverb ambience found in churches or cathedrals. Particularly suitable for solo instruments and voices. VARIATION modifies the decay time, EDIT A adjusts the differences between tiled and angular walls (diffusion), while EDIT B –... -
Page 12: Special Effects
VIRTUALIZER PRO DSP1024P Reverse Reverb: A reverb program with an inverted amplitude envelope, i.e. the effect starts softly and then increases in volume. This effect used to be created by playing a tape in reverse direction, recording the reverb signal, and then playing back the tape in forward direction again, with the result that the reverb signal was played back before the actual input signal. -
Page 13: Dual-Mode Effects Algorithms
VIRTUALIZER PRO DSP1024P Tremolo & Delay: Since trip hop has become trendy, this effect – originally found in guitar amps – is used to produce a more or less fast and intensive variation of volume (with an additional panorama effect included in the DSP1024P). -
Page 14: Operation
VIRTUALIZER PRO DSP1024P 2. OPERATION 2.1 Effects structure Fig. 2.1: Effects structure 2.2 Selecting presets The VIRTUALIZER PRO stores 100 user-definable presets. After power-up, the unit automatically recalls the preset last used. To select another preset, use the JOG WHEEL to enter the preset number of your choice. -
Page 15: Editing Programs
VIRTUALIZER PRO DSP1024P loading the data, the VIRTUALIZER PRO enables the preset and the dot disappears. This brief interruption avoids the direct activation of every preset, as you scroll through the preset list with the JOG WHEEL. Otherwise incomplete “parameter remnants” of presets could reach the audio outputs of the VIRTUALIZER PRO, with possibly disastrous consequences, especially when using a high-power P.A. - Page 16 VIRTUALIZER PRO DSP1024P The third page allows for configuring controller commands. On its right-hand side, the DISPLAY shows a capital “C” (= Controller). The JOG WHEEL selects one of the following four controller modes: Display Mode No controller data are transmitted.
-
Page 17: Applications
VIRTUALIZER PRO from your personal computer. 3. APPLICATIONS The BEHRINGER VIRTUALIZER PRO is a highly flexible device that can be used for a wide variety of applications. Prior to a presentation of the VIRTUALIZER PRO’s many uses, please note the following remarks on how to set signal levels correctly. -
Page 18: Using The Virtualizer Pro In The Insert Path
Connect the two Input phone jacks with the Aux Send outputs of the mixing console, and the Output jacks of the VIRTUALIZER PRO with the Aux Return inputs of the console. If you want to use the BEHRINGER VIRTUALIZER PRO in mono or dual mode, connect one audio channel (left or right) to one aux bus. -
Page 19: Using The Virtualizer Pro As An Effects Device For Instruments
Instrumentalists can benefit from a variety of advantages offered by the VIRTUALIZER PRO‘s MIDI implementation. For example, you can use a MIDI footswitch board, e.g. the BEHRINGER MIDI FOOT CONTROLLER FCB1010, to send program change commands via MIDI. Connect the MIDI OUT jack of your MIDI board to the MIDI IN jack on the VIRTUALIZER PRO. -
Page 20: Using The Virtualizer Pro In A Midi System
VIRTUALIZER PRO DSP1024P The VIRTUALIZER PRO may also be inserted between the outputs of a keyboard and the inputs of a mixing console. If required, adjust the levels with the OPERATING LEVEL switch. 3.5 Using the VIRTUALIZER PRO in a MIDI system With its built-in MIDI interface the VIRTUALIZER PRO can be integrated into any MIDI system. -
Page 21: Technical Background
VIRTUALIZER PRO DSP1024P 4. TECHNICAL BACKGROUND 4.1 Reverberation and reflection Prior to simulating the physical phenomena of reverberation and reflection, it is necessary to analyze how reverb is generated, and how it is perceived by human hearing. In a concert hall the sound the listener hears comprises both the source signals (e.g. acoustical instruments, P.A. -
Page 22: Reverberation Chambers
“pure” reverb programs, because “common” reverb is still the most important effect for mix-down or live applications. Therefore, we at BEHRINGER want to provide you with a variety of reverb programs, so that you have appropriate presets available for each specific application. -
Page 23: Digital Reverb
VIRTUALIZER PRO DSP1024P Room Plate Speaker Sender Microphone Receiver Fig. 4.2: Room reflections and reverb plate reflections Spring reverb devices use a similar principle, but their reverb sound is of inferior quality compared to a properly adjusted reverb plate. In particular, dynamic signals such as drums have a highly compressed and “flat” sound when they are reproduced with a spring reverb. -
Page 24: Installation
This can cause fire and electric shocks and will endanger your life and the lives of others. 5.2 Audio connections As standard, the BEHRINGER VIRTUALIZER PRO is installed with electronically servo-balanced inputs and outputs. The new circuit design features automatic hum and noise reduction for balanced signals and thus allows for trouble-free operation, even at high operating levels. -
Page 25: Midi Connections
VIRTUALIZER PRO DSP1024P Unbalanced use of Balanced use of mono 1/4" jack plugs stereo 1/4" jack plugs Tip = Tip = Signal hot (+ve) Ring = cold (-ve) Sleeve = Ground / Shield Sleeve = Ground / Shield Ring Sleeve... -
Page 26: Operating Level Switch
VIRTUALIZER PRO DSP1024P 5.4 Operating Level switch To adapt the VIRTUALIZER PRO to the used operating level, the unit can be switched between homerecording level (-10 dBV) and professional level (+4 dBu). Use the LED bars on the frontpanel to determine the optimal setting. The Level indicators should read somewhere around -6 / -10 dB, while the clip LED should not light up at all. -
Page 27: Delay Values / Increments For Presets 10 And 11
VIRTUALIZER PRO DSP1024P 6.2 Delay values / increments for presets 10 and 11 Variation Step Size Type Edit A (L & R) Delay (L) Delay (R) From (ms) Until (ms) From (ms) Until (ms) 1275 1275 1275 1275 1275 1280... -
Page 28: Midi Implementation
VIRTUALIZER PRO DSP1024P 6.3 MIDI Implementation MIDI Implementation Chart Function Transmitted Recognized Remarks Basic Default OFF, 1 - 16 OFF, 1 - 16 memorized Channel Changed OFF, 1 - 16 OFF, 1 - 16 Default 1,2,3,4 1,2,3,4 Mode Messages Altered... -
Page 29: Default Settings
VIRTUALIZER PRO DSP1024P 6.4 Default settings Engine Left Engine Right Effect Variation Edit A Edit B Edit A Edit B Cathedral Plate Small Hall Room Studio Concert Stage Vocal Percussion Delay Echo Gated Reverb Reverse Reverb Vocal Distortion Rotary Speaker... -
Page 30: Specifications
3 kg BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated. -
Page 31: Warranty
(user included) will void the warranty. at its sole discretion, either repair or replace the product. 6. If an inspection of the product by BEHRINGER shows that the 2. If the warranty claim proves to be justified, the product will be defect in question is not covered by the warranty, the inspection returned to the user freight prepaid.
