Bosch MBE Series Installation Manual

Mbe series mounts and adapters

Advertisement

Quick Links

MBE Mounts and Adapters
MBE Series
en
Installation Guide

Advertisement

Table of Contents
loading

Summary of Contents for Bosch MBE Series

  • Page 1 MBE Mounts and Adapters MBE Series Installation Guide...
  • Page 3: Table Of Contents

    MBE Mounts and Adapters Table of Contents | en Table of Contents Important safety instructions MBE Series Mounts and Adapters Unpacking Parts Lists MBE-27/28 Wall Mount Applications Mounting the MBE-27/28 to a Wall Mounting the MBE-27/28 with the MBE-17 Wall Adapter...
  • Page 4: Important Safety Instructions

    If not avoided, this could result in minor or moderate bodily injury. CAUTION! Low risk: Indicates a potentially hazardous situation. if not avoided, this could result in property damage or risk of damage to the unit. | 3.0 | 2011.10 Installation Guide Bosch Security Systems, Inc.
  • Page 5 You can view and print the full version of this Installation Manual with Adobe Acrobat Reader, available online. This user guide is the intellectual property of Bosch Security Systems; protected by copyright. Contact: www.boschsecurity.com Bosch Security Systems, Inc.
  • Page 6: Mbe Series Mounts And Adapters

    Verify that all the parts listed in the product's Parts List below are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. The original packing carton is the safest container in which to transport the unit and must be used if returning the unit for service.
  • Page 7: Parts Lists

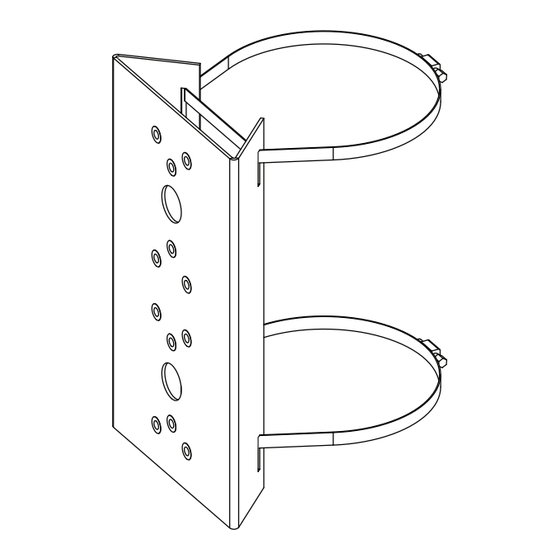

    MBE Mounts and Adapters MBE Series Mounts and Adapters | en Parts Lists MBE-15B / MBE-15W Pole Mount Adapter Quantity Description Pole mount adapter plate, black or white Metal bands with gear clamps M6 x 20 mm bolts M6 flat washers...
  • Page 8: Mbe-27/28 Wall Mount Applications

    MBE-28: If routing cables through the wall, drill a 25 mm (1 in.) hole placed exactly in the middle of the four (4) marked holes. | 3.0 | 2011.10 Installation Guide Bosch Security Systems, Inc.
  • Page 9: Mounting The Mbe-27/28 With The Mbe-17 Wall Adapter

    40 mm (3.71 x 1.57 in.) hole pattern with the MBE-27/28 bracket. (Use the 86 x 40 mm hole pattern with the old EXMB.023 or EXMB.028 bracket.) Refer to Section 6 Dimensional Outlines, page 20, for detailed dimensional drawings. Bosch Security Systems, Inc. Installation Guide | 3.0 | 2011.10...
  • Page 10 45 kg (100 lbs). Align the four holes on the MBE-27B, MBE-27W, or the MBE-28B bracket with the 94.2 x 40 mm (3.71 x 1.57 in.) hole pattern on the MBE-17 adapter. | 3.0 | 2011.10 Installation Guide Bosch Security Systems, Inc.
  • Page 11 MBE-17. Use the illustration below as a guide: Optionally, attach the EXMB.020B to the MBE-17 using the two (2) M6 x 20 hex bolts that shipped with the EXMB.020B. Use the illustration below as a guide: Bosch Security Systems, Inc. Installation Guide | 3.0 | 2011.10...
  • Page 12: Mbe-27/28 Pole Mount Applications

    Thread one end of the other metal band through the two bottom slots of the MBE-15. Then, wrap the metal band around the pole and thread the end of the metal band into the gear clamp. | 3.0 | 2011.10 Installation Guide Bosch Security Systems, Inc.
  • Page 13 Fasten the MBE-27 or MBE-28 bracket to the MBE-15 using the four (4) M6 x 20 hex bolts and washers that shipped with the MBE-15. Use the illustration below as a guide: Bosch Security Systems, Inc. Installation Guide | 3.0 | 2011.10...
  • Page 14 MBE Mounts and Adapters Optionally, attach the EXMB.020B to the MBE-15 using the two (2) M6 x 20 hex bolts that shipped with the EXMB.020B. Use the illustration below as a guide: | 3.0 | 2011.10 Installation Guide Bosch Security Systems, Inc.
  • Page 15: Attaching Cameras To The Brackets

    The EX27 camera is an all-weather system that includes all of the best features of a “plug and play” camera without compromise to CCD optics and lens quality. Refer to the EX27/ EX27N/EX27D Installation Manual, located on the Bosch Security System Web site, for complete camera details. NOTICE!
  • Page 16 (item 2) and into the pan/tilt mounting bracket. Use the #6 hex key to tighten the M8 x 45 mm bolt (Item 3) and to secure the EX27 camera to the MBE-27 bracket. | 3.0 | 2011.10 Installation Guide Bosch Security Systems, Inc.
  • Page 17: Attaching A Reg-D1/L1 To An Mbe-28

    Refer to the REG-D1 Installation Instructions or to the REG-L1 Installation Instructions, both located on the Bosch Security System Web site, for complete camera details. NOTICE!
  • Page 18 MBE-28B and into the wall or through one of the plugs to facilitate cable management. Align the six (6) inner screw holes on the REG-D1 or REG- L1 with the bolt holes on the bracket mounting head. | 3.0 | 2011.10 Installation Guide Bosch Security Systems, Inc.
  • Page 19 #5 hex key. Place the camera at the desired pan angle and tighten the bolt. Refer to the REG-D1 Installation Instructions or to the REG- L1 Installation Instructions to configure and use the camera. Bosch Security Systems, Inc. Installation Guide | 3.0 | 2011.10...
  • Page 20: Dimensional Outlines

    | Dimensional Outlines MBE Mounts and Adapters Dimensional Outlines MBE-15B / MBE-15W Pole-Mount Adapter M6 Thread Typ 12 Places 1.61 40.8 3.71 3.39 94.2 2.44 2.44 11.06 1.75 44.5 [in.] | 3.0 | 2011.10 Installation Guide Bosch Security Systems, Inc.
  • Page 21 MBE Mounts and Adapters Dimensional Outlines | en MBE-17B / MBE-17W Wall-Mount Adapter 11.06 5.53 140.5 3.39 3.71 94.2 2.44 1.61 2.44 40.8 1.65 1.65 1.90 48.3 [in.] Bosch Security Systems, Inc. Installation Guide | 3.0 | 2011.10...
  • Page 22 | Dimensional Outlines MBE Mounts and Adapters MBE-27B / MBE-27W Bracket 9.193 233.50 8.150 2.717 [1.568] [in.] | 3.0 | 2011.10 Installation Guide Bosch Security Systems, Inc.
  • Page 23 MBE Mounts and Adapters Dimensional Outlines | en MBE-28B Bracket 3.54 9.19 233.5 1.57 [in] 2.87 Bosch Security Systems, Inc. Installation Guide | 3.0 | 2011.10...
  • Page 24 | Dimensional Outlines MBE Mounts and Adapters | 3.0 | 2011.10 Installation Guide Bosch Security Systems, Inc.
  • Page 26 Bosch Security Systems, Inc. 850 Greenfield Road Lancaster, PA 17601 U.S.A. www.boschsecurity.com © Bosch Security Systems, Inc., 2011...
