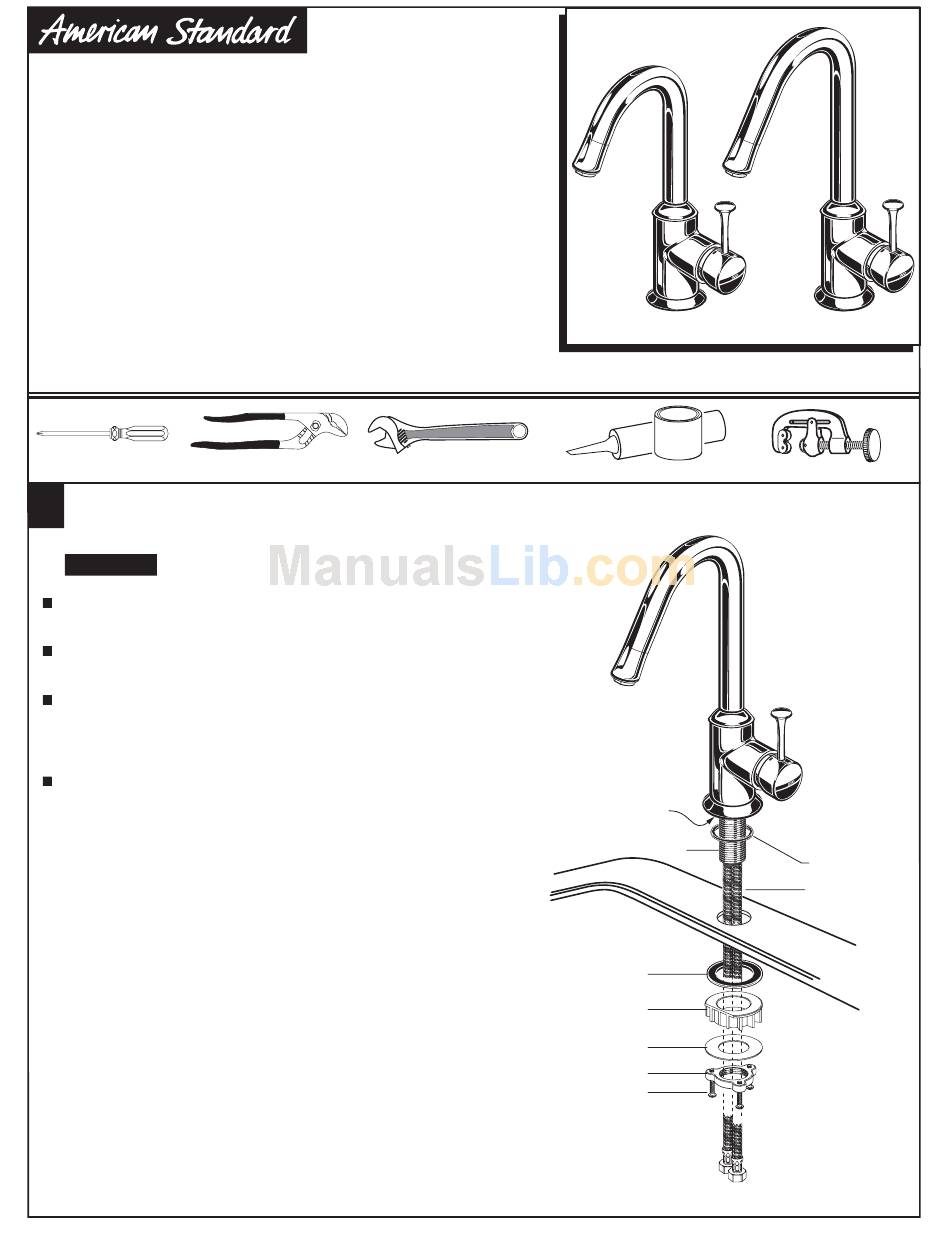

PEKOE
SINGLE FUCTION KITCHEN FAUCET
SINGLE FUCTION BAR FAUCET
Thank you for selecting American-Standard...the
benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly-
please read these instructions carefully before
you begin.
Recommended Tools
Phillips Screwdriver
1
INSTALL FITTING (4332.001/.400)
Turn off hot and cold water
CAUTION
supplies before beginning.
Make certain the SEAL (1) is properly seated in recess
of faucet body.
Insert supply HOSES (2) and SHANK (3) through center
hole of sink or mounting surface.
Assemble RUBBER WASHER (4), PLASTIC WASHER (5),
METAL WASHER (6) and threaded LOCKNUT (7) onto
SHANK (3) from underside of sink or mounting surface.
Hand tighten LOCKNUT (7) and check that faucet is centered.
Use a screwdriver to tighten SCREWS (8) on LOCKNUT (7).
Work your way around LOCKNUT (7), tightening the screws
slightly each time until all are snug to ensure even pressure.
Installation
Instructions
4332.001.XXX
4332.400.XXX
Channel Locks
Certified to comply with ANSI A112.18.1M
Adjustable Wrench
Plumbers' Putty or Caulking
RECESS
3
4
5
6
7
8
M 9 6 8 5 7 6
Tubing Cutter
1
2
Advertisement
Related Manuals for American Standard Pekoe 4332.001.XXX
Summary of Contents for American Standard Pekoe 4332.001.XXX
-
Page 1: Installation Instructions
PEKOE SINGLE FUCTION KITCHEN FAUCET SINGLE FUCTION BAR FAUCET Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly- please read these instructions carefully before you begin. Recommended Tools Phillips Screwdriver Channel Locks INSTALL FITTING (4332.001/.400) Turn off hot and cold water... - Page 2 MAKE WATER SUPPLY CONNECTIONS Turn off hot and cold water supplies before beginning. Connect FLEXIBLE SUPPLIES (1, 2) directly to wall supplies. Connection on fitting supplies are 3/8" compression. Connect left supply (Marked with a Red Stripe) to Hot and right supply (Marked with Blue Stripe) to Cold wall supply.
- Page 3 SERVICE Clogged CARTRIDGE outlets or inlets may cause reduced flow. To clean, first turn off water supply then: Loosen and remove LEVER HANDLE (1). Loosen HANDLE SCREW (2) with 2.5mm Hex Wrench and then pull HANDLE BASE (3) off. Unscrew ESCUTCHEON CAP (4). Unscrew the CARTRIDGE NUT (5).
- Page 4 M962708-0070A O-RING M962707-YYYOA SPOUT END M962706-YYYOA AERATOR M962648-0070A SPOUT BUSHING & O-RING KIT M962704-YYY0A PEDESTAL M962686-0070A M962672-0070A MOUNTING KIT M906667-0070A FIXATION RING HOT LINE FOR HELP For toll-free information and answers to your questions, call: 1 (800) 442-1902 Weekdays 8:00 a.m. to 6:00 p.m. EST IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093) Weekdays 8:00 a.m.
