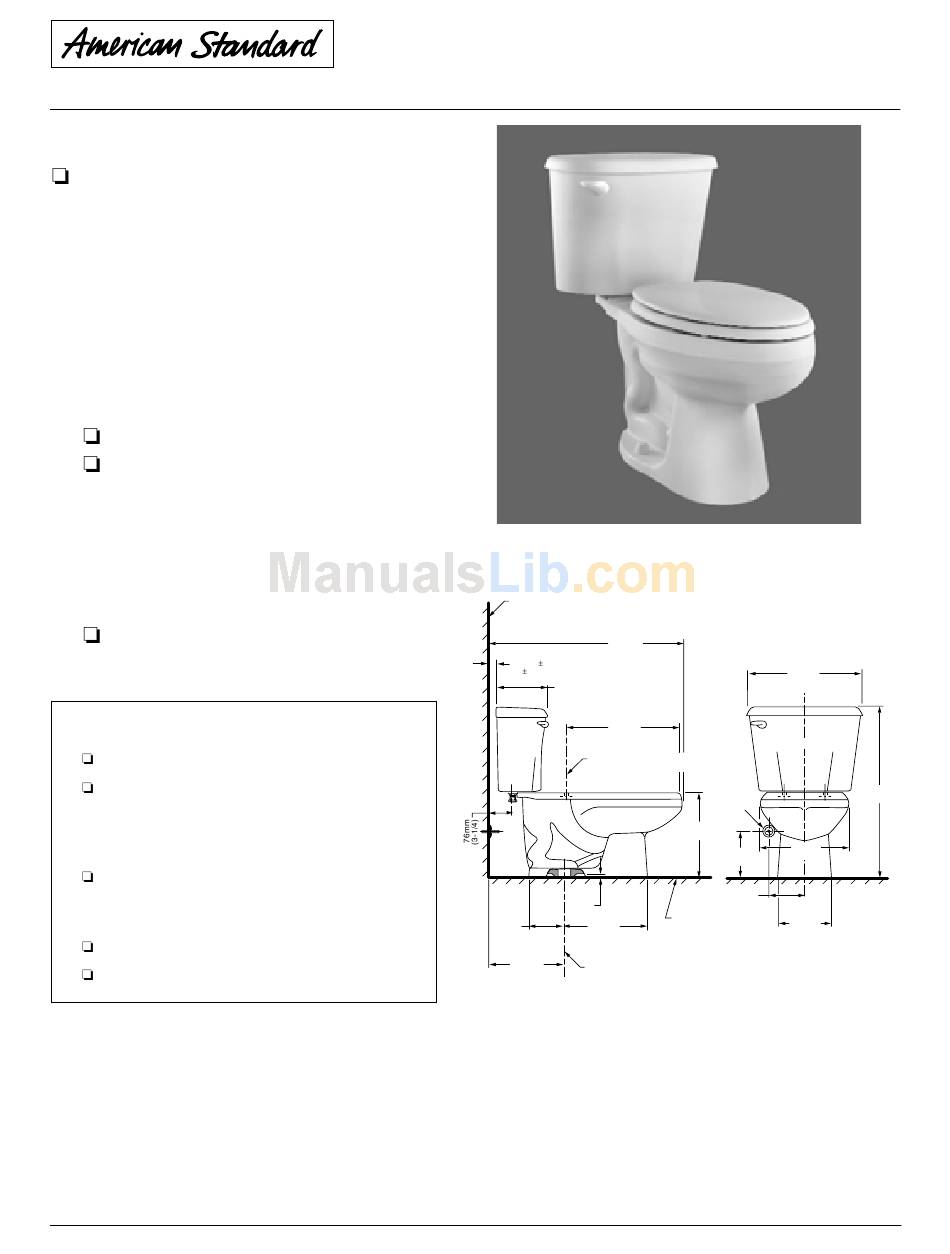

CADET™ SPECIFIER ELONGATED TOILET
2883.012
• Vitreous china
• Low-consumption (6.0 Lpf/1.6 gpf)
• Elongated siphon action jetted bowl
• Fully glazed 2" Ballpass trapway
• Fluidmaster Fill Valve
• Large 11" x 9" water surface area
• Close-coupled tank
• Color-matched trip lever
• Sanitary bar on bowl
• 2 bolt caps
• 100% factory flush tested
3459.016 Bowl
4392.001SMT Tank
Nominal Dimensions:
749 x 508 x 737mm
(29-1/2" x 20" x 28-3/4")
Fixture only, seat and supply by others
Alternate Tank Configurations Available:
4392.800SMT Tank complete with
Trip Lever Located on Right Side
To Be Specified
Color:
Seat: American Standard #5324.019 "Rise and
Shine" (with easy to clean lift-off hinge system)
solid plastic closed front seat with cover.
See pageTB-001.
Seat: American Standard #5311.012 "Laurel"
molded closed front seat with cover.
See pageTB-001.
Alternate Seat:
Supply with stop:
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2M (and 19.6M) for Vitreous
China Fixtures - includes Flush Performance,
Ball Pass Diameter, Trap Seal Depth and
all Dimensions
Revised 5/04
FINISHED WALL
25mm
6mm
(1
1/4)
232mm
(9-1/8)
16mm
178mm
(7)
305mm
(12)
NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 305MM
(12") FROM FINISHED WALL TO C/L OF OUTLET.
*
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerance
established by ANSI Standard A112.19.2
These measurements are subject to change or cancellation. No responsibility is assumed for use
of superseded or voided pages.
© 2004 American Standard Inc.
CADET™ SPECIFIER
ELONGATED TOILET
749mm
(29-1/2)
470mm
(18-1/2)
C/L OF SEAT POST HOLES
140mm (5-1/2 CENTERS)
SUPPLY
AS
REQ'D
381mm
(15)
*
222mm
(8-3/4)
146mm
(5-3/4)
(5/8)
FINISHED
FLOOR
305mm
(12)
C/L OF OUTLET
VITREOUS CHINA
508mm
(20)
C/L
730mm
(28-3/4)
381mm
(15)
241mm
(9-1/2)
