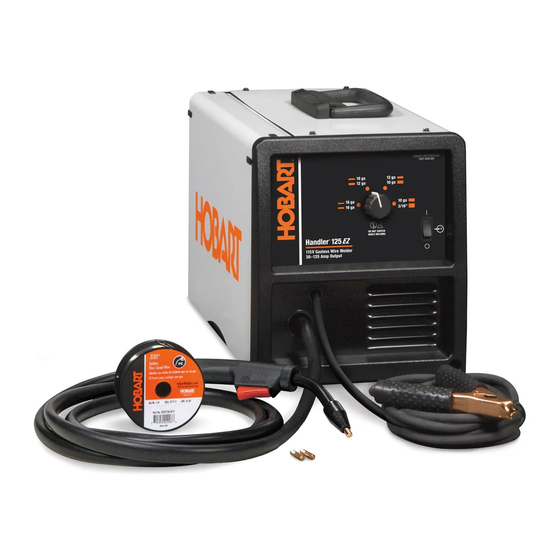

Hobart Welding Products Handler 125 EZ Specification Sheet

Handler
115V Gasless Flux-cored Wire Feed Welder
115 Volt
Includes:
Comfortable 8-ft. (2.4 m) H-9B gun
10-ft. (3 m) work cable with clamp
Sample spool of .030 in. (0.8 mm) self-shielding flux-cored wire
.030 in. (0.8 mm) contact tips
Spool shaft to accommodate 4 in. spools
(Optional hub kit available for 8 in. spools)
Power cord with plug
Informational door chart
Owner's manual with parts lists, installation, operation and
maintenance guidelines
Features
Single-knob EZ Dial
Max output of 125 amps
Built-in contactor
Durable feed head with quick-release
drive roll tension lever
Short circuit protection
Self-resetting thermal overload
Self-resetting motor protection
Hobart's 5/3/1 Industrial Warranty

Specifications

(SUBJECT TO CHANGE WITHOUT NOTICE.)
Rated Output Max Amps
85 A, 17.5 VDC, 125 A
at 20% Duty Cycle
60 A, 20 VDC
at 20% Duty Cycle*
* CSA rating.
125 EZ
®
Benefits
Adjust the knob to match the thickness of mild steel to be welded and you're ready to weld.
The EZ Dial adjusts both the voltage and wire feed speed.
Allows you to weld up to 3/16 in. steel with flux-cored wire.
Eases use and excellent safety feature which makes wire electrically "cold" until trigger is pulled.
Positive feed with adjustable tension plus easy accessibility to thread new wire.
Protects unit against current overload.
Protects power transformer to ensure reliability.
Protects wire feed system from overload, no fuses to change or circuit breaker buttons to reset.
Five-year warranty on transformers, three years on electronics (drive motors, rectifiers) and one year on guns.
Max. Open- Amps Input at Rated Output, 60 Hz, 1-Phase
Circuit Voltage 115 V
26 V 20
15*
*
he Handler 125 EZ has Hobart's unique
T
single-knob EZ Dial, making it the quickest and
easiest wire welder to set up and use. Just plug it
into 115 VAC, select the mild steel thickness with
EZ Dial the EZ Dial and you are ready to weld.
Just Set and Weld!
The Handler 125 EZ comes ready to weld 18 ga. to
3/16 in. mild steel with .030 in. (0.8 mm) self-
shielding flux-cored wire so no shielding gas bottle
is required. Also designed to use .035 in. (0.9 mm)
flux-cored wire with a .035 in. (0.9 mm) contact tip.
The Handler 125 EZ is a great portable welder for
farm and ranch projects, home hobbyists, light
fabrication projects, maintenance and repair.
#500521
Applications:
Home, farm and ranch and light fabrication projects.
Mower Decks/Brackets
Fences/Gates
Kennels
Signs
Window Security Guards
KVA KW
2.9 2.5
2.2* 1.77*
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
224820
March 2012
Grills/Smokers
Firewood Racks
Metal Furniture
Machinery and
Auto Repair, etc.
Net
Dimensions Weight
H: 16-7/8 in. (429 mm) 50 lb.
W: 9-7/8 in. (251 mm) (22.7 kg)
D: 12-1/8 in. (308 mm)
