Be sure to read the accompanying

User's Guide before using the projector.

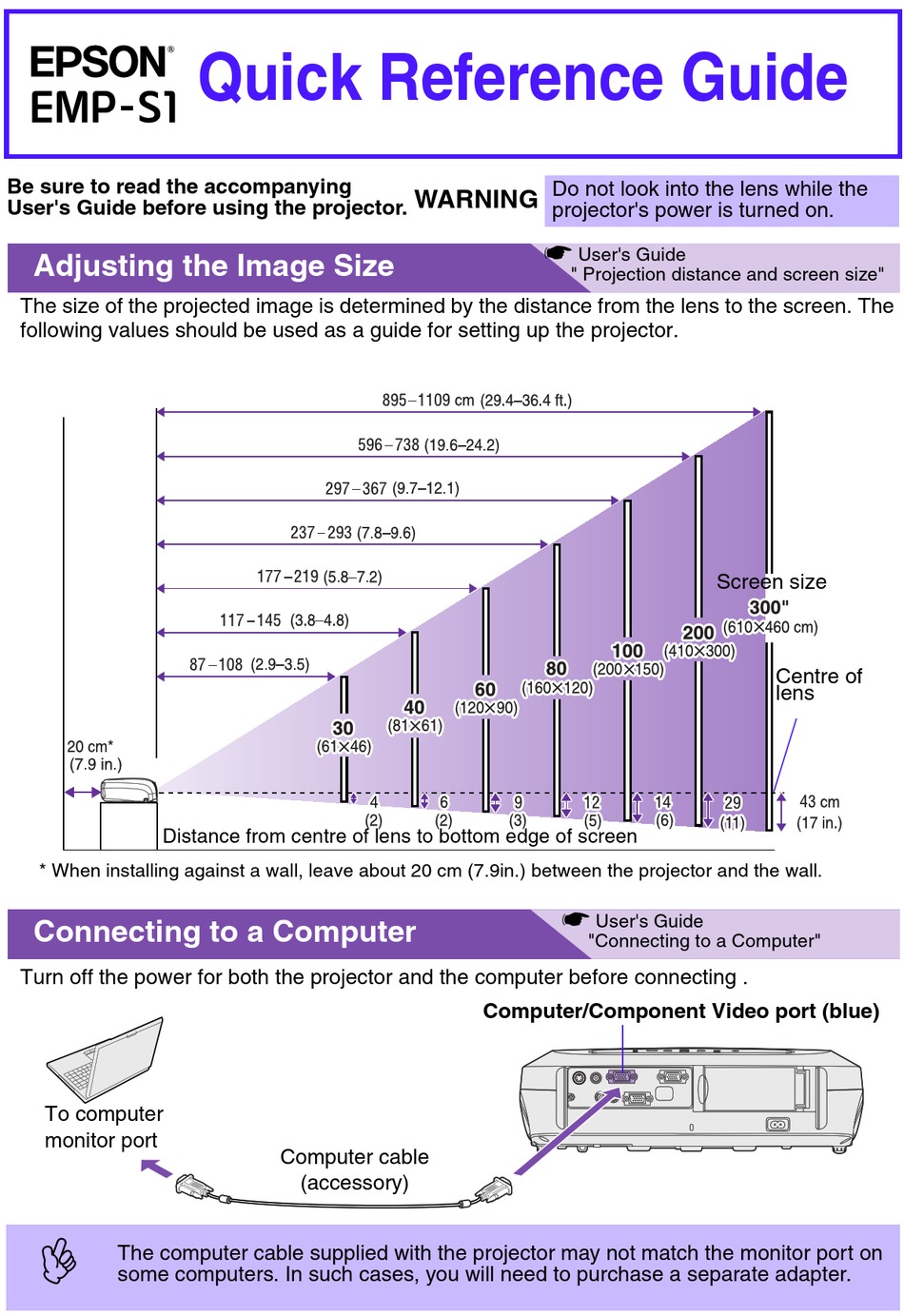

The size of the projected image is determined by the distance from the lens to the screen. The

following values should be used as a guide for setting up the projector.

Distance from centre of lens to bottom edge of screen

* When installing against a wall, leave about 20 cm (7.9in.) between the projector and the wall.

Turn off the power for both the projector and the computer before connecting .

To computer

monitor port

The computer cable supplied with the projector may not match the monitor port on

some computers. In such cases, you will need to purchase a separate adapter.

Quick Reference Guide

Computer cable

(accessory)

Do not look into the lens while the

WARNING

projector's power is turned on.

User's Guide

" Projection distance and screen size"

Computer/Component Video port (blue)

Screen size

User's Guide

"Connecting to a Computer"

Centre of

lens

Table of Contents

Page 1: Quick Reference Guide
Quick Reference Guide Be sure to read the accompanying Do not look into the lens while the WARNING User's Guide before using the projector. projector's power is turned on. User's Guide Adjusting the Image Size " Projection distance and screen size" The size of the projected image is determined by the distance from the lens to the screen.
Page 2: Connecting To Video Equipment
User's Guide Connecting to Video Equipment "Connecting to Video Equipment" Turn off the power for both the projector and video equipment before connecting. S-Video port When connecting to Video port (yellow) video equipment with an S-Video out port To S-Video out port S-Video cable (commercially available)
Page 3: Adjusting The Image Angle
User's Guide Adjustments "Adjusting the Display" • Adjusting the image angle • Adjusting the image size and focus Raise the front of the projector while pressing the feet buttons on both sides. Extend the front feet. Fine adjustments to image size Press the [Wide] or [Tele] buttons on the control panel to adjust the projection size.
Page 4: Useful Functions
Useful Functions The following five colour modes can be selected by pressing [Color s User's Guide Color Mode Mode] on the remote control. "Selecting a colour •Dynamic •Presentation • Theatre •Living Room •sRGB mode" Playback of images and sound can be paused and resumed each s User's Guide A/V Mute time [A/V Mute] is pressed on the remote control.
