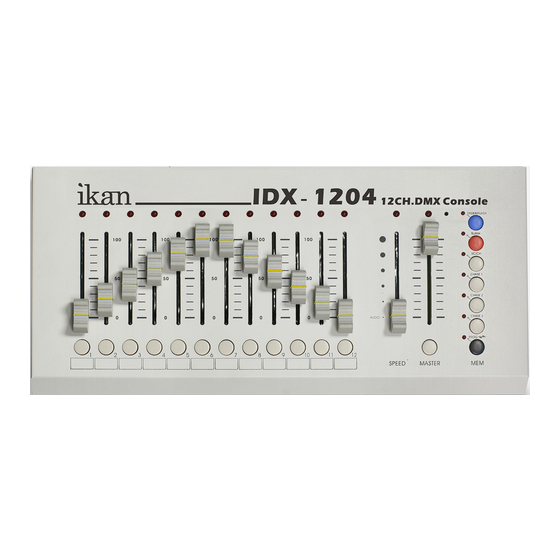

- Page 1 IDX-1204 12 Channel DMX Console User manual】 【 ikan Corporation website: www.ikancorp.com E-mail sales: sales@ikancorp.com E-mail support: support@ikancorp.com ikan Corporation IDX -1204 [EUM-A]...
-
Page 2: Table Of Contents
IDX- 1204 Instruction................2 1-1 Feature ....................... 2 1-2 Specification ....................2 1-3 IDX-1204 Function ..................3 1-4 IDX-1204 Rear Panel ................4 Chapter 2. IDX-1204 operation ................5 Scene Setting ..................5 Scene Recall ..................5 CHASE ..................... 6 2-3-1 Internal Chase Setting ( Speed Chase ) ........... -
Page 3: Chapter 1. Idx- 1204 Instruction
Chapter 1. IDX-1204 Instruction 1-1 Feature Standard DMX 512 signal control 12 channel variable dimming control 12 settings for scene control Chaser function: 1.) Channel chase 2.) Scene chase 3.) Fade chase 3.) Speeding control 4.) Chase Function Flash Audio input... -
Page 4: Idx-1204 Function
1-3 IDX-1204 Function MASTER-VR Master dimming control MASTER Master Flash control Audio / speed chase control SPEED/ AUDIO Pause BLANK Scene / Channel control SC/CH CHASE 1 Recall Chase 1 Mode CHASE 2 Recall Chase 2 Mode CHASE 3 Recall Chase 3 Mode... -
Page 5: Idx-1204 Rear Panel
1-4 IDX-1204 Rear Panel 16 20 18 17 Power supply: DC 12V / 1A Power switch Audio input: 100mV DMX connector: XLR 5-PIN DMX connector: XLR 3-PIN DMX connector: PHONE JACK (RJ11) Audio sensitivity control ikan Corporation IDX -1204 [EUM-A]... -
Page 6: Chapter 2. Idx-1204 Operation
Chapter 2. IDX-1204 operation Scene Setting Select【CH】mode, and move the fader to set the dimming value Press【PROG】+【1~12】 to save control scene. STEP-1 Press【SC / CH】to select the control channel LED : off in CH mode LED : on in SC mode STEP-2 Move【MASTER-VR】to the top... - Page 7 ○ STEP 4 ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ● Repeat STEP-3 Adjust the Chase speed by increasing or decreasing the 【SPEED-VR】 slider key. STEP-4 Press【PROG】to change the chase direction ikan Corporation IDX -1204 [EUM-A]...
-
Page 8: Chase
STEP-1 Slide 【SPEED-VR】to the bottom which audio is selected. 2-3-3 Fade Chase STEP-1：Press【SPEED】to fade chase. (Make sure appropriate key LED is “on”) 2-4 BLANK Press【BLANK】to pause the program. Press again to resume program / 【BLANK】 return to normal mode of operaiton. ikan Corporaiton IDX -1204 [EUM-A]...
