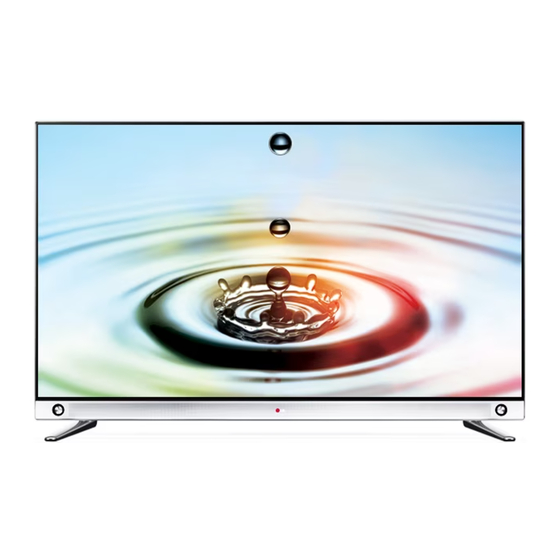

LG 55LA9650 Owner's Manual

Led tv
Hide thumbs Also See for 55LA9650:
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set
and retain it for future reference.
55LA9650
65LA9650
P/NO : MFL67652642 (1308-REV00)
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG 55LA9650

Summary of Contents for LG 55LA9650

  • Page 2: Important Safety Instructions

    Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product. Read these instructions. WARNING/CAUTION Keep these instructions. Heed all warnings. RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. TO REDUCE THE RISK OF ELECTRIC SHOCK DO Do not use this apparatus near water.
  • Page 3 Do not press strongly upon the panel with a hand Keep the packing anti-moisture material or vinyl or a sharp object such as a nail, pencil or pen, or packing out of the reach of children. Anti-moisture make a scratch on it. material is harmful if swallowed.
  • Page 4 Do not install in excessively Do not attempt to modify this product in any way dusty places. without written authorization from LG Electronics. If you smell smoke or other odors coming from Unauthorized modification could void the user’s the TV, unplug the power cord and contact an authority to operate this product.
  • Page 5 The Plasma or LCD panel is a high technology product with resolution of two million to six million pixels. In a very few cases, you could see fine dots on the screen while you’re viewing the TV. Those dots are deactivated pixels and do not affect the This equipment has been tested and found performance and reliability of the TV.

  • Page 6: Viewing 3D Imaging

    TV than the recommended distance. watching 3D content. Only use LG 3D glasses. Otherwise, you may not be able to view 3D videos Do not watch 3D content when you feel properly.

  • Page 7: Licenses

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com.

  • Page 8: Table Of Contents

    Image shown may differ from your TV. Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. The available menus and options may differ from the input source or product model that you are using. New features may be added to this TV in the future.

  • Page 9: Installation Procedure

    Open the package and make sure all the accessories are included. Attach the stand to the TV set. Connect an external device to the TV set. Make sure the network connection is available. You can use the TV network functions only when the network connection is made. Check your product box for the following items.
  • Page 10 (See page 29.) (See page 14.) 4 EA, M4 x 14 (See page 16.) (See page 14.) (See page 22.) (See page 22, 23.) The number of 3D glasses may differ depending on the model or country. (Depending on model)

  • Page 11: Optional Extras

    Optional extras can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models. The model name or design may be changed manufacturer’s circumstances or policies. Magic Remote Cinema 3D Glasses Dual Play Glasses Wireless IR Blaster...

  • Page 12: Parts And Buttons

    SETTINGS INPUT Scrolls through the saved channels. Adjusts the volume level. Selects the highlighted menu option or confirms an input. Accesses the main menus, or saves your input and exits the menus. Changes the input source. Turns the power on or off. To avoid possible SPEAKER damage or degradation in performance please keep contact of TV /Speaker out of reach of Children.

  • Page 13: Lifting And Moving The Tv

    When transporting a large TV, there should be at least 2 people. When transporting the TV by hand, hold the When moving or lifting the TV, read the following TV as shown in the following illustration. to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

  • Page 14: Setting Up The Tv

    You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment center or other furniture. If you are not mounting the TV to a wall, use the following instructions to attach the stand. When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

  • Page 15: Mounting On A Table

    (Depending on model) Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation. 10 cm (4 in ch es ) 1 0 c m 1 0 c m 1 0 c m Insert and tighten the eye-bolts, or TV...

  • Page 16: Tidying Cables

    If you are attaching the TV to other building materials, please contact qualified personnel to install the wall mount. Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. 10 cm (4 in ch es )
  • Page 17 If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. Do not over tighten the screws as this may cause damage to the TV and void your warranty.

  • Page 18: Making Connections

    You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to the manual provided with each device.

  • Page 19: Connecting To A Hd Receiver, Dvd Player Or Vcr

    Connect a HD receiver, DVD Player, or VCR to the TV and select an appropriate input mode. Transmits digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown in the following illustration. Use the latest High Speed HDMI™...

  • Page 20: Dvi To Hdmi Connection

    Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an audio cable. When using the HDMI/DVI cable, Single link only is supported. DVI OUT AUDIO OUT...

  • Page 21: Connecting To A Mobile Phone

    Mobile High-definition Link (MHL) is an interface for transmitting digital audio/visual signals from mobile phones to television sets. Connect the mobile phone to the HDMI IN 3 (MHL) port to view the phone screen on the TV. This only works with an MHL-enabled phone. With some MHL supporting mobile phones, you can use the TV remote to control the phone.

  • Page 22: Component Connection

    Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown in the following illustration. If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color.

  • Page 23: Composite Connection

    Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown in the following illustration. If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.

  • Page 24: Connecting A Pc

    It is recommended to use an HDMI connection for the best image quality. Depending on the graphics card, DOS mode video may not work if a HDMI to DVI Cable is in use. In PC mode, there may be noise associated with the resolution, vertical pattern, contrast, or brightness.
  • Page 25 AUDIO OUT DVI OUT...

  • Page 26: Connecting To An Audio System

    You can use an optional external audio system instead of the built-in speaker. Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown in the following illustration. Do not look into the optical output port.

  • Page 27: Connecting Headphones

    Listening to sound with headphones AUDIO menu options are disabled when using headphones. When changing AV MODE with headphones connected, the change is applied to video but not to audio. Optical Digital Audio Out is not available when headphones are connected. Headphone impedance 16 Max audio output: 0.6 mW to 1.3 mW Headphone jack size: 0.35 cm (0.13 inches)

  • Page 28: Connecting A Usb Device

    Connect a USB storage device such as USB flash memory, external hard drive, or a USB memory card reader to the TV and access the Smart Share menu to use various multimedia files. Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it directly to the USB port on the TV.

  • Page 29: Magic Remote Control Functions

    Change the battery. Magic remote control battery is low. When the message displayed, replace the battery. To install batteries, open the battery cover, replace batteries (1.5 V AA) matching ends to the label inside the compartment, and close the battery cover. Failure to match the correct polarities of the battery may cause the battery to burst or leak, resulting in fire, personal injury, or ambient pollution.

  • Page 30: Registering Magic Remote Control

    The Magic Remote Control operates by pairing with your TV. Please register the remote as follows. To register automatically, turn the TV on and press the When registration is completed, the completion message appears on the screen. If registration fails, turn the TV off If you press on the and back on, then press the...

  • Page 31: Watching Tv

    Confirms the setting options. Simple guide of Magic Remote Control (Depending on model) When you turn the TV on for the first time, the Initial setting screen appears. Select a language and customize the basic settings. Connect the power cord to a power outlet. Select when prompted.

  • Page 32: Using The User Guide

    An index of key words present in the User Guide. Provides the detailed information on the functions of LG Smart TV when the User Guide Internet is connected. (It may not be available depending on the country/language.) OPTION >...

  • Page 33: Specifications

    Product specifications may be changed without prior notice due to upgrade of product functions. AC 120 V~ 50/60 Hz NTSC-M, ATSC, 64 & 256 QAM VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135 Operating Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F) Operating Humidity Less than 80 % Storage Temperature...
  • Page 34 640 x 480 31.469 59.94 31.469 59.94 720 x 480 31.50 60.00 800 x 600 37.879 60.31 44.96 59.94 1024 x 768 48.363 60.00 1280 x 720 45.00 60.00 1152 x 864 54.348 60.053 33.72 59.94 1360 x 768 47.712 60.015 33.75 60.00...
  • Page 35 Video, which is input as below media contents is switched into the 3D screen automatically. 54.00 F/P, L/A 67.50 1080p 27.00 S/S, T&B, S/S Full 33.75 67.50 S/S, T&B 67.50 F/P, F/A 1080i 33.75 S/S, T&B, S/S Full 90.00 F/P, L/A 720p 45.00 S/S, T&B, S/S Full...

  • Page 36: External Control Device Setup

    2D to 3D, S/S, T&B 320 x 240 (Under) 2D to 3D 1024 x 768p 1280 x 720p 2D to 3D, S/S, T&B 1920 x 1080p Others 2D to 3D To obtain the external control device setup information, please visit www.lg.com.

  • Page 37: Maintenance

    Clean your TV regularly to keep it at peak performance and to extend the product lifespan. Before cleaning, turn the power off and disconnect the power cord and all other cables. When the TV is left unattended or unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.
  • Page 38 The home theater entertainment experience is a growing trend and larger flat panel displays are popular purchases. However, flat panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations. Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and cause injury.
  • Page 42 (TV) (PC)
  • Page 43 (PC) (TV) (TV) (PC) RS-232C IN (CONTROL & SERVICE)

  • Page 52: Image Shown May Differ From Your Tv

    * Image shown may differ from your TV. * Image shown on a PC or mobile phone may vary depending on the Operating System (OS).

  • Page 53: Network Setting

    Premium Apps are pre-installed on the TV. These may vary by country. The device automatically tries to connect to the Press the button to access the Home network available (wired network first). menu. Select and press More Connecting to the network. More Settings If you select...
  • Page 54 Press the button to access the Smart Home menu. Select and press Network Status More More Input List Settings Internet Tv Guide SmartSh Universal... User Guide Pr.List Recent List Unplug the power cord of the AP(Router), cable modem and try to connect after 5 seconds. Initialize(Reset) the AP(Router) or cable modem.
  • Page 55 Install the program on your PC. Go to . Then, select your region. Select . Then, search for your model. Select . Then, select You can run the program when installation is complete. DLNA service is only available if TV and other devices are connected via a single AP(Router).

  • Page 56: Updating The Tv Firmware

    Check that Wi-Fi is enabled on your smartphone. To use DLNA, both devices must on the same local network. Install/run the app for sharing content on your smartphone (It's called SmartShare on LG phones). Enable your smartphone to share content files with other devices.
  • Page 57 If a local network is not available, you can connect a portable device directly to the TV using Wi-Fi Direct. With Smart Share, you can share files or screens of devices connected to [Device Screen] is set to , a list of available devices Wi-Fi Direct [TV Screen] appears.
  • Page 58 Intel's WiDi is set to On. Connect your laptop to AP(Router). (Without AP, it is possible to use this function; it is recommended to connect to AP.) Your laptop runs the Intel WiDi( ) program. It detects LG Smart TVs available, which supports WiDi. In the list, select the TV you want and click Connect. Enter the number( ) shown on the screen into the input field( ) on your laptop and then click Continue.
  • Page 59 With the Magic Remote Control, you can easily control your set-top box, Blu-ray player, home theater system, and Sound Bar. Check if the device is connected to the TV. After pressing the ' ' button on the Magic Remote Control, select the device you want to control in the Change Device tab.
  • Page 61 To use the Magic remote control, pair it with your TV first. 1"1 How to Re-register the Magic remote control r· ~~~~=~~.=t~~~;~~~~~~gi;~~o~~;~~t:~~=-~!~~~;,=~~·~: How to use the Magic remote control pointer rr=========::::;, ;-··· _,.,, ..................................................... • Shake the Magic remote control slightly to the right and left or press SMART~ , ~, ,b~~~~~...
  • Page 62 Image shown may differ from your product. Installing Batteries , ......................................, • Press the end of the battery cover, slide it ~~:~ ::~ li~-~~: ::~:~ :~=== ~:I==~...
  • Page 63 Life's Good MBM51168889(1301 REV01)
  • Page 64 SpecifiUltions :it~ J:l~ Precautions IlreileS6.4xfl:lhe33lx!Jingel355 Magic Remote User · (Abweid1tr1g~1mm) (1)- repacement the battery, use the remote control OHfr~.Q.j J. . 1 1: : 1 l6 ~~.Xi ~ :g~tiAil (g~,;~~t~9n) folk::M'ing pairing in accordance with user manual. Gewicht £.!8 ?J%12.:!.2:] [KCC Nom de rnoctele AN·MR40IIG...
  • Page 66 Fill out and return this card Registering is important, quick and easy! Thank you for purchasing an LG product! We hope you are enjoying your new product and look forward to sharing some insider tips and tricks with you soon.
  • Page 67 CMF01 LG Electronics PROTECT YOUR INVESTMENT DON'T FORGET TO REGISTER! online at www.lgusa.com/register Fill out and return this card within the next 10 days Mrs. Miss First name Initial Last name I ..I I I I I I I I I I ..
  • Page 69 To assure proper credit and avoid unnecessary charges, you must obtain a Return Authorization before returning any product to the Factory Service Center. Contact the Customer Interactive Center for details. Service for your LGE Television is provided through LG Electronics Alabama, Inc., the authorized LGE Service Center for the United States.
