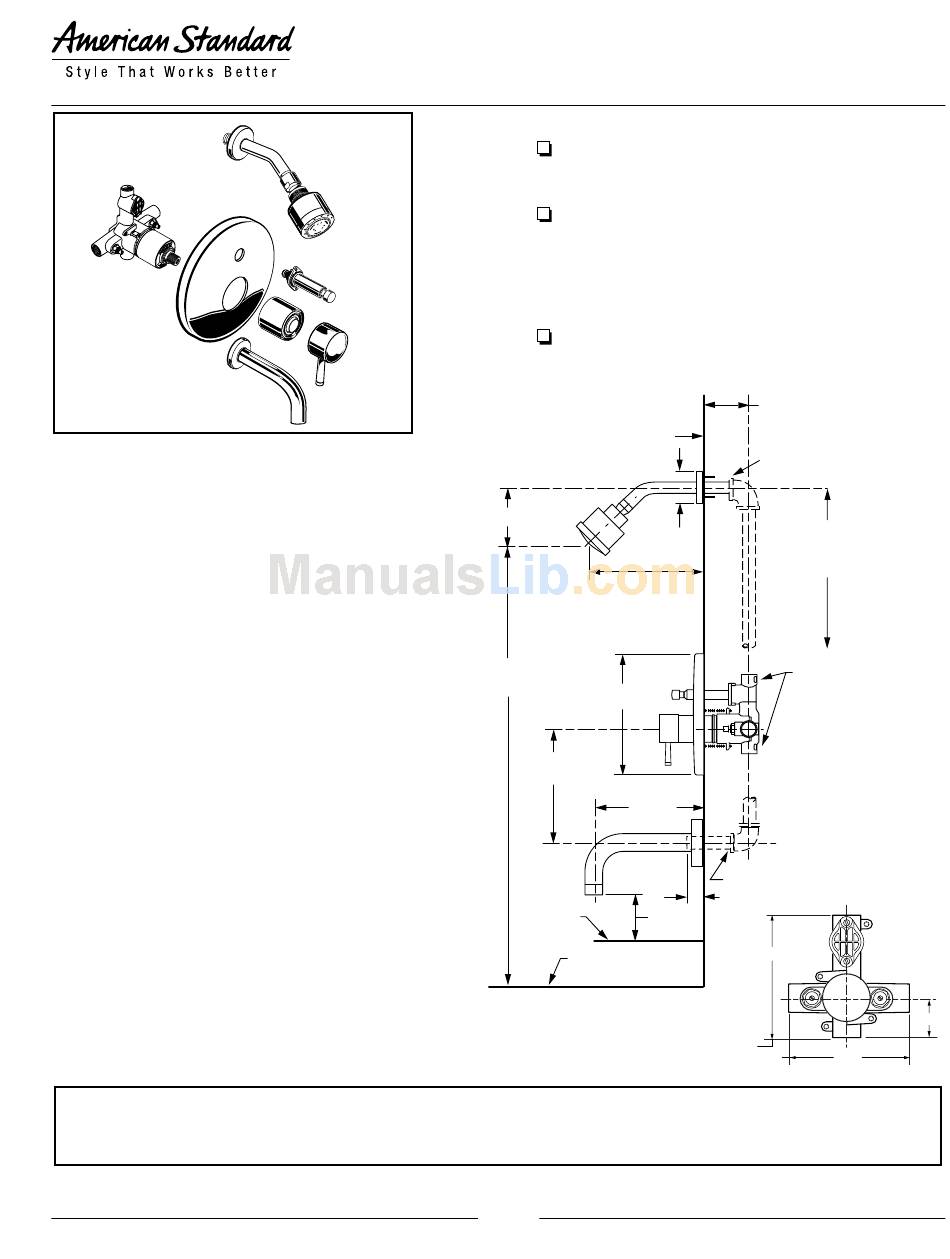

American Standard One Pressure Balance Bath/Shower Fitting R116SS Specification Sheet

T064.602 Shown with R116SS

GENERAL DESCRIPTION:

C
ast brass valve body. Washerless 47mm ceramic disc
valve cartridge cycles from "Off" to "Cold" to "Hot". Hot
limit safety stop. Pressure balancing cartridge maintains
constant output temperature in response to changes in
relative hot and cold supply pressures.
inlets/outlets with screwdriver stops.
2.5gpm/9.5L/min. flow restrictor. Integral diverter. Durable
brass wall escutcheon. Metal lever handle. Rough-in
plaster guard designed for use as thin-wall mounting
adapter. Brass tub spout.

PRODUCT FEATURES:

Solid Brass Construction:
prolonged contact with water.
Ceramic Disc Valve Cartridge:
drip-free performance.
Pressure Balancing Valve:
temperature in response to changes in relative hot and
cold supply pressure. Diaphragm system engineered to
eliminate cross flow and spool "thumping". Avoids failure
due to mineral deposits - ideal for use with hard water.
Built-in Diverter:
Easy to use, integrated in valve body
and includes positive shut-off. Allows spout and
showerhead in any desired installation location.
Adjustable Hot Limit Safety Stop:
amount of hot water allowed to mix with cold. Reduces
the risk of accidental scalding.
Integral Plaster Guard and Mounting Plate:
Plaster guard designed to protect valve during installation
and to serve as a mounting plate for thin wall installations.
SUGGESTED SPECIFICATION:
Bath/shower fitting shall be cast brass construction with all brass spout. Shall also feature washerless ceramic disc valve
cartridge. Fitting shall be equipped with a pressure balancing mechanism and hot limit safety stop. Fitting shall be American
Standard Model # R116SS with T064.___.___ trim kit.
© 2008 AS America Inc.
1/2" NPT threaded
Showerhead has
HEAD CLEARANCE
Durable, ideal material for
Assures a lifetime of
Maintains output
Limits the
PRESSURE BALANCE BATH/SHOWER FITTING
MODEL NUMBER:
R116SS Pressure Balance Rough Valve Body
With Built-in Diverter & Screw Driver Stops.
LESS Trim.
T064.602 Bath/shower Trim Kit
With Built-in Diverter
• Brass wall escutcheon with built-in diverter
• Adjustable "3 function" Showerhead
• Brass tub spout
• LESS Valve
T064.600 Valve Only Trim Kit
With Built-in Diverter
• Brass wall escutcheon
• LESS Valve
FINISHED WALL
5-5/8" REF.
2-3/8"
8-1/8" REF.
74" FOR
7-1/4" D.
18"
OPTIONAL
6-3/4"
TOP OF
TUB RIM
BOTTOM OF
TUB
PRESSURE BALANCE BATH/SHOWER
B15
WITH BUILT-IN DIVERTER
1-5/8" TO 3-1/4"
1/2" NPT
OPTIONAL TO
FINISHED FLOOR
USUALLY BETWEEN
80'' AND 86'
"SEE
SHW
ILLUSTRATION"
TUB
1/2" NPT
1/2" REF.
4"
5-5/8"
OUTLETS 1/2" NPT
INLETS
1/2" NPT
THREADED INLETS (STOPS)
ONE
1-3/4"
5-5/8"
