Mini Coupe Owner's Manual page 248

Mobility

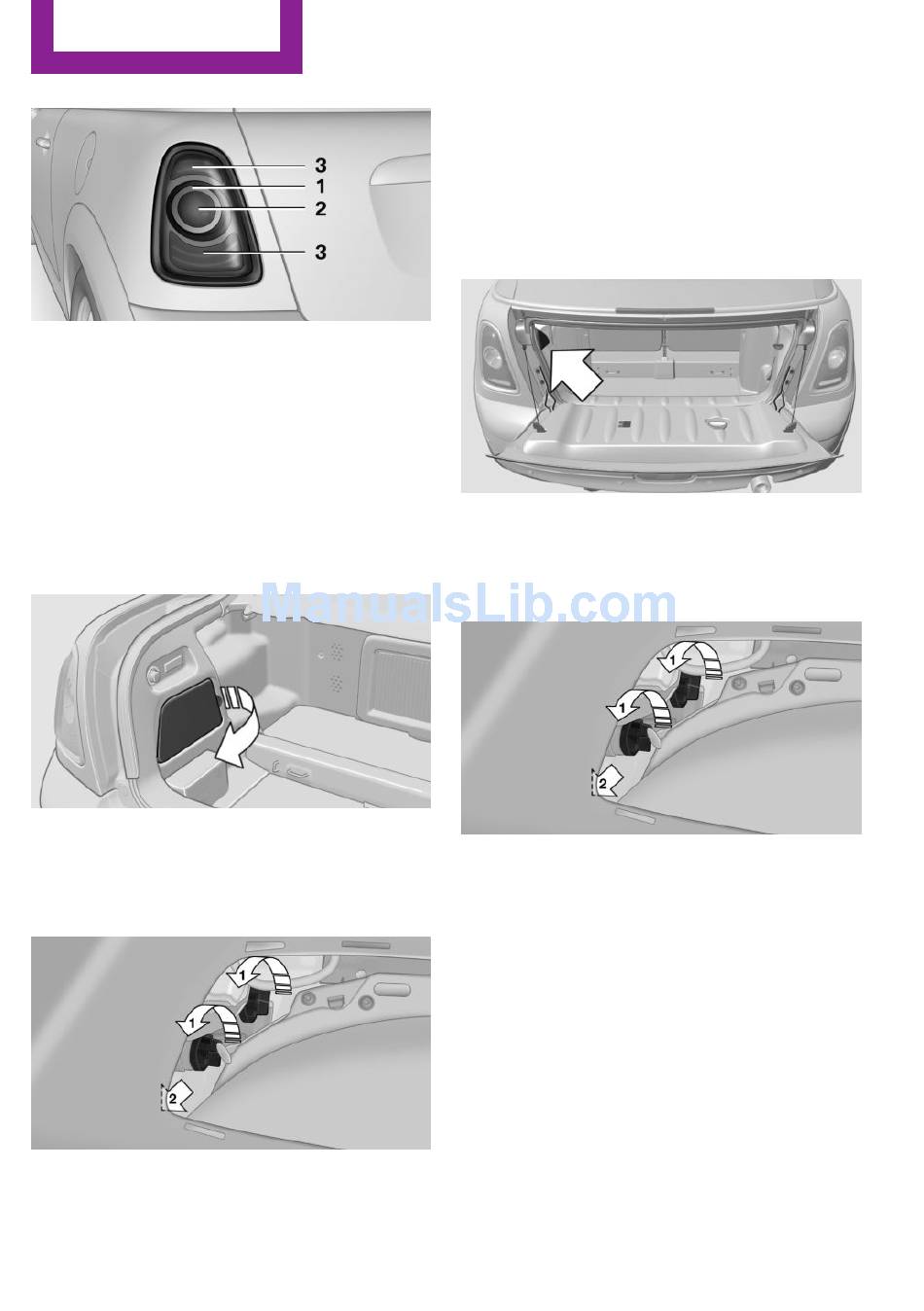

1 Turn signal
2 Tail lamp LED
3 Brake lamp
Replacing
MINI Coupe, MINI Roadster
1. Remove the cover of the cargo area side
wall.
2. Turn the corresponding bulb counterclock‐
wise, arrows 1, and remove.
Another bulb is located behind the cargo
area side wall, arrow 2.
3. Insert the new bulb and attach the cover in
reverse order.
248
Replacing components
Online Edition for Part no. 01 40 2 919 017 - II/13
MINI Convertible
1. Remove the cover of the cargo area side
wall.
Move the convertible top to the top posi‐
tion, refer to page 116, and take off the
cover of the cargo area side wall.
2. Turn the corresponding bulb counterclock‐
wise, arrows 1, and remove.
Another bulb is located behind the cargo
area side wall, arrow 2.
3. Insert the new bulb and attach the cover in
reverse order.
Rear fog lamp/backup lamps
16-watt bulbs, W 16W
The lamps are accessed via the rear side or the
underside of the bumper.
