QuickSpecs

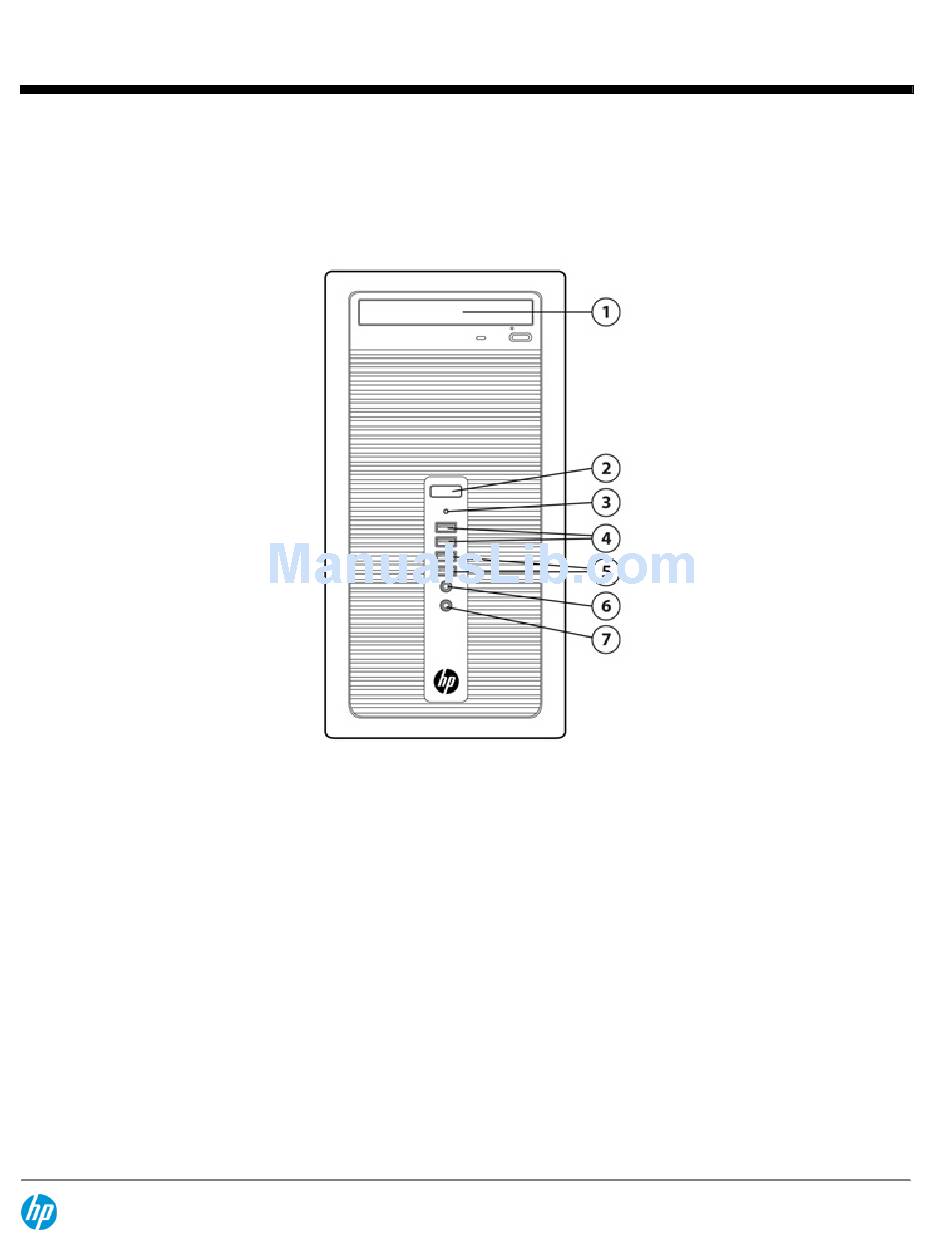

Overview
1.
Drive bay supporting an optical disk drive (optional)
2.
Power button
3.
PC status LED
4.
(2) USB 3.0 ports (black)
5.
(2) USB 2.0 ports (blue)
6.
3.5mm microphone jack
7.
3.5mm headphone output
Not Shown
5.25" External Drive Half-Height Drive Bay (located behind removable bezel)
3.5" external drive bay; used for installing a Media Card Reader
Slots
(1) PCI Express x16 graphics connectors;
(3) PCI Express x1 accessory connectors
(1) USB 3.0 header for media card reader
(1) Parallel port (optional)
HP ProDesk 490 G1 Microtower Business PC
DA - 14695 Worldwide — Version 2 — November 8, 2013
HP ProDesk 490 G1 Microtower Business PC
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProDesk 490 G1 and is the answer not in the manual?

Questions and answers

Related Manuals for HP ProDesk 490 G1

Summary of Contents for HP ProDesk 490 G1

  • Page 1 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Overview HP ProDesk 490 G1 Microtower Business PC Drive bay supporting an optical disk drive (optional) Power button PC status LED (2) USB 3.0 ports (black) (2) USB 2.0 ports (blue) 3.5mm microphone jack 3.5mm headphone output...
  • Page 2 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Overview Bays (2) 3.5" internal storage drive bays Rear I/O (4) USB 2.0 ports; (2) USB 3.0 ports (1) VGA video port; (1) DVI-D video port; DisplayPort with Multi-Stream support - DP 1.2 (Optional)
  • Page 3 At A Glance Expandable, upgradable chassis and system board HP developed and engineered UEFI BIOS supporting security, manageability and software image stability Intel® H87 Express chipset supporting Intel® 4th generation Core processors, featuring integrated Intel HD Graphics Realtek RTL8151GH-CG GbE LOM integrated network connection...

  • Page 4: Standard Features And Configurable Components (Availability May Vary By Country)

    QuickSpecs HP ProDesk 490 G1 Microtower Business PC Standard Features and Configurable Components (availability may vary by country) OPERATING SYSTEM Preinstalled When Windows 8.1 Pro (64-bit) Windows 8.1 (64-bit) Purchased Windows 7 Ultimate (32-bit)** Windows 7 Ultimate (64-bit)** Windows 7 Professional...
  • Page 5 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Standard Features and Configurable Components (availability may vary by country) Intel® 4th Generation Core™ i5 Processors Intel® Core™ i5-4570 Processor Up to 3.6 GHz Max. Turbo Frequency (3.2 GHz base frequency) 6 MB cache, 4 cores, 4 threads...
  • Page 6 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Standard Features and Configurable Components (availability may vary by country) Intel® Core™ i3-4130 Processor Up to 3.4 GHz Max. Turbo Frequency (3.4 GHz base frequency) 3 MB cache, 2 cores, 4 threads...
  • Page 7 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Standard Features and Configurable Components (availability may vary by country) ADAPTERS AND CABLES HP DMS-59 to Dual DisplayPort Cable HP DMS-59 to Dual DVI Cable HP DMS-59 to Dual VGA Cable HP DisplayPort to DisplayPort Cable...
  • Page 8 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Standard Features and Configurable Components (availability may vary by country) SuperMulti DVD Writer DVD-ROM MEMORY Form Factor Type Maximum # of Slots Microtower DDR3 non-ECC 32 GB 4 UDIMM Up to 1600 MT/s NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system resource requirements.
  • Page 9 In addition, the BIOS has the capability to replicate settings across all like systems in the Enterprise using the Replicated Setup option in BIOS Setup, or using tools available from the HP support website in the Business Desktop BIOS Utilities and BIOS Configuration Utility packages.
  • Page 10 *Models configured with Intel Core processors have the ability to utilize advanced security protection for online transactions. IPT, used in conjunction with participating web sites, provides double identity authentication by adding a hardware component in addition to the usual user name and password. IPT is initialized through an HP Client Security module. ENVIRONMENTAL & REGULATORY ENERGY STAR®...
  • Page 11 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Standard Features and Configurable Components (availability may vary by country) PORTS I/O Ports - Standard USB 2.0 2 (front); 4 (rear) USB 3.0 2 (front); 2 (rear); 1(internal) Serial (RS-232) PS/2 1 keyboard...
  • Page 12 24 x 7. One-year onsite and labor are not available in all countries. Service offers terms up to 5 years by choosing a Care Pack. To choose the right level of service for your HP product, visit HP Care Pack Central: www.hp.com/go/cpc...

  • Page 13: Technical Specifications - Operating Systems And Software

    Windows 7 Enterprise (32-bit or 64-bit) For all Supported operating systems HP performs testing of the OS, and makes available all HP value add software (OS dependent). Certified drivers are made available on www.hp.com within 30 days of product announcement.
  • Page 14 Buy Office 1 Available via download. 2 Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents and image types and other HP ePrint details, see: www.hp.com/go/eprintcenter).Requires optional broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and availability in your area.

  • Page 15: Technical Specifications - Graphics

    Open CL 1.2 Supported Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP DA - 14695 Worldwide — Version 2 — November 8, 2013...
  • Page 16 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Graphics Resolution Refresh Rates 800x600 60 Hz 1024x768 60 Hz 1152x864 60 Hz 1280x600 60 Hz 1280x720 60 Hz 1280x800 60 Hz 1280x960 60 Hz 1280x1024 60 Hz 1360x768...
  • Page 17 HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Graphics Supported Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Resolution Refresh Rates...
  • Page 18 Hz using DisplayPort to VGA cable adaptors Supported Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Resolution Maximum Refresh Rates (Hz) by Connection...
  • Page 19 Drives two analog using the included HP DMS-59 to Dual VGA Cable Supported Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Resolution...
  • Page 20 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Graphics 1920 x 1080 60-R 1920 x 1200 60-R 1920 x 1440 2048 x 1536 2560 x 1440 2560 x 1600 * Display Port Only NVIDIA GeForce GT630 Graphics Card...
  • Page 21 HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Graphics Supported Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Resolution Maximum Refresh Rates (Hz) by Connection...
  • Page 22 HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Graphics Supported Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Analog Connection Digital Connection...
  • Page 23 HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Graphics Supported Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Analog Connection Digital Connection...
  • Page 24 PC. This offers you the additional benefits of dedicated bandwidth, the ability to more easily identify device failures and scalability. The HP ProDesk 490 G1 Series Business PC supports the latest SATA 6.0Gb/s specification.
  • Page 25 3.951 +0.008 / -0.010 in (100.35 +0.20 / -0.25 mm) Weight 0.254 lb/115 g (max) Operating Temperature 32° to 140° F (0° to 60° C) HP 500 GB SATA 6G 2.5" 8GB Solid State Hybrid Drive (SSHD) Formatted Capacity 500 GB Spindle Speed 5,400 rpm +/- 0.2%...
  • Page 26 Actual capacity will vary by content ** The product achieves a mean time between failure (MTBF) based on population statistics not relevant to individual units. HP 256 GB SATA 2.5" Self-Encrypting (SED) Solid State Drive Unformatted Capacity...
  • Page 27 32° to 158° F (0° to 70° C) (all conditions, non- Relative Humidity (operating): 5% to 95% condensing) Shock: 1,500 G/1 ms HP 1-TB 7.2K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive Capacity 1,000,204,886,016 bytes Rotational Speed 7,200 rpm Interface Serial ATA 3.0 (6.0 Gb/s)

  • Page 28: Technical Specifications - Removable Storage

    QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Removable Storage HP Blu-ray BDXL Writer Drive Height 5.25-inch, half-height, tray-load Orientation Either horizontal or vertical Interface type SATA Disc capacity Blu-ray: 128 GB QL, 100 GB TL, 50 GB DL or 25 GB standard DVD: 8.5GB DL or 4.7GB standard...
  • Page 29 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Removable Storage Blu-ray Read speeds BD-ROM (SL/DL) up to 8X BD-R (SL/DL) up to 8X BD-R (TL/QL) up to 6X BD-RE (SL/DL) up to 6X BD-RE TL up to 4X...
  • Page 30 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Removable Storage Digital/Analog Up to 2400 KB/s (16X) Audio Playback Digital Audio Extraction Up to 6000 KB/s (40X) (CD-ROM, CD-R) Digital Audio Extraction Up to 4800 KB/s (32X) (CD-RW)
  • Page 31 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Removable Storage DVD-RAM DVD+/-R DVD+/-R DL DVD+/-RW Source SATA DC power receptacle DC Power Requirement 5 VDC ± 5% 100 mV ripple p-p 12 VDC ± 5% 200 mV ripple p-p...
  • Page 32 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Removable Storage Digital/Analog Up to 2400 KB/s (16X) Audio Playback Digital Audio Extraction Up to 6000 KB/s (40X) (CD-ROM, CD-R) Digital Audio Extraction Up to 4800 KB/s (32X) (CD-RW)
  • Page 33 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Removable Storage Maximum Wet Bulb 86° F (30° C) Temperature DA - 14695 Worldwide — Version 2 — November 8, 2013 Page 33...
  • Page 34 System Memory Support The HP ProDesk 490 G1 Business PC supports the 4th generation Intel® Core™ processor family. Based on a new PC micro-architecture, the processor is designed for a two-chip platform consisting of a processor and Platform Controller Hub (PCH). Unlike previous generations, the 4th generation Intel®...

  • Page 35: Technical Specifications - Networking And Communications

    QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Networking and Communications Realtek RTL8151GH-CG GbE LOM Network Adapter Connector RJ-45 System Interface Integrated on PCA Controller Realtek RTL8151GH-CG Gigabit Ethernet Controller Memory 16 KB FIFO packet buffer memory...
  • Page 36 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Networking and Communications Data path width X1, 250 MB/s, Bi-directional interface Data transfer mode Bus-master DMA Hardware certifications FCC, B, CE, TUV-c, TUVus Mark Canada and United States, TUV-GS Mark for European Union Power requirement Aux 3.3 V, 3.0 Watts in 1000 base-T and 1.0 Watts in 100 Base-T...
  • Page 37 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Networking and Communications Note: Check latest software/driver release for updates on supported security features. Sub-channels Multinational support with frequency bands and channels compliant to local regulations. Network Architecture Models...
  • Page 38 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications - Audio High Definition Audio Type Integrated HD Stereo Codec Realtek 2-channel ALC221 codec Audio I/O Ports Front microphone-In (150-K ohm Input Impedance) Rear Line-In/Microphone input (150-K ohm Input Impedance, function is configurable by audio...

  • Page 39: Technical Specifications - Keyboards And Pointing Devices

    QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications – Keyboards and Pointing Devices HP USB Keyboard Keys 104, 105, 106, 107, 109 layout (depending upon country) Dimensions Physical characteristics 18.12 x 6.47 x 0.96 in (46.03 x 16.43 x 2.44 cm)
  • Page 40 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications – Keyboards and Pointing Devices Keyboard Installation Guide Kit contents Warranty Card Safety and Comfort Guide HP PS/2 Keyboard Keys 104, 105, 106, 107, 109 layout (depending upon country) Dimensions 18.22 x 6.47 x 1.1 in (46.28 x 16.43 x 2.79 cm)
  • Page 41 HP USB Smart Card (CCID) Keyboard Protects against unauthorized access with smart card technology Delivers even greater security when combined with a HP ProtectTools smart card and the HP ProtectTools Security Software Combination of username and password or pin with a smart card or security token...
  • Page 42 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications – Keyboards and Pointing Devices Non-operating temperature -22° to 140° F (-30° to 60° C) Operating humidity 10% to 90% (non-condensing at ambient) Non-operating humidity 20% to 80% (non-condensing at ambient)
  • Page 43 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications – Keyboards and Pointing Devices Power consumption 50-mA maximum (with three LEDs ON) System interface USB Type A plug connector Electrical CE level 4, 15-kV air discharge EMI - RFI Conforms to FCC rules for a Class B computing device Microsoft®...
  • Page 44 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications – Keyboards and Pointing Devices HP Wireless Keyboard and Mouse Dimensions (H x L x W) 1.09 x 18.1 x 6.47 in (27.87 x 460.3 x 164.3 mm) Keyboard Weight – Without Two AA 1.94 lb (880 g)
  • Page 45 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications – Keyboards and Pointing Devices HP PS/2 Mouse Dimensions (H x L x W) 1.46 x 2.48 x 4.53 in (3.70 x 6.29 x 11.50 cm) Weight 3.53 oz (100g; +10g/- 5 g) Operating temperature -32°...
  • Page 46 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications – Keyboards and Pointing Devices Maximum rotation force 50 gf-cm Scroll wheel Switch type Light force micro-switch Switch life 1 million operations Mechanical life Minimum 200,000 revolutions Regulatory Approvals UL/cUL, FCC, CE Mark, TUV/GS, VCCI, KCC, BSMI, C-Tick...
  • Page 47 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications – Keyboards and Pointing Devices HP USB PS/2 Washable Mouse Dimensions (H x L x W) 1.56 x 2.44 x 4.61 in (3.95 x 6.21 x 11.7 cm) Weight 4.44 oz (126 g) Operating temperature –32°...

  • Page 48: Technical Specifications - Power

    QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications – Power Unit Environment and Operating Conditions General Unit Operating Guidelines Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is operated within the specified operating range.
  • Page 49 QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications – Power Total Cord Length *High efficiency power supply is a requirement for ENERGY STAR® qualification in conjunction with a select range of processors and modules DA - 14695 Worldwide — Version 2 — November 8, 2013...

  • Page 50: Weights And Dimensions

    QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications – Weights & Dimensions Weights & Dimensions (configured with 1 HDD & 1 ODD) Chassis (W x H x D) 182.88 x 357 x 402 mm 7.2 x 14.05 x 15.82 in System Volume 24.66 L...

  • Page 51: Serviceability Features

    HP PC Hardware Diagnostics UEFI: This utility enables hardware level testing outside the operating system on many components. The diagnostics can be invoked by pressing F2 at POST, and is available as a download from HP Support System/Emergency ROM Flash ROM...

  • Page 52: Additional Features

    QuickSpecs HP ProDesk 490 G1 Microtower Business PC Technical Specifications – Miscellaneous Features Additional Features Description Towerable Orientation Product can be oriented as either a desktop (horizontal) or a tower (vertical) Implementation of the industry standard ATA Security feature set. When enabled, it...

  • Page 53: Graphics Solutions

    XP688AA Data Storage Drives and Accessories Part Number HP 2TB 7200rpm SATA 6.0Gb/s Hard Disk Drive HP 1-TB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive QK555AA HP 1-TB 10K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive C2T91AA HP 500-GB 7.2K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive QK554AA HP 128-GB SATA 3.0Gb/s Solid State Drive...

  • Page 54: System Memory

    HP USB Keyboard and Mouse Kit B1T09AA HP USB Washable Keyboard VF097AA HP USB and PS/2 Washable Mouse BM866AA HP USB and PS/2 Washable Keyboard and Mouse Kit BU207AA HP PS/2 Mouse QY775AA HP USB Mouse QY777AA HP USB 1000dpi Laser Mouse...
  • Page 55 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft, Windows and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the U.S.
