VHF FM TRANSCEIVER
TK-690H
SERVICE MANUAL
REVISED
This service manual applies to products with 30500001 or subsequent serial numbers. (KCH-10 and KCH-11 are applicable to
the productions June 2001 and after.)
In terms of the products with the serial numbers earier than 30500001, refer to the TK-690H(B) service manual as per part
No. B51-8460-00.
TK-690H(B)

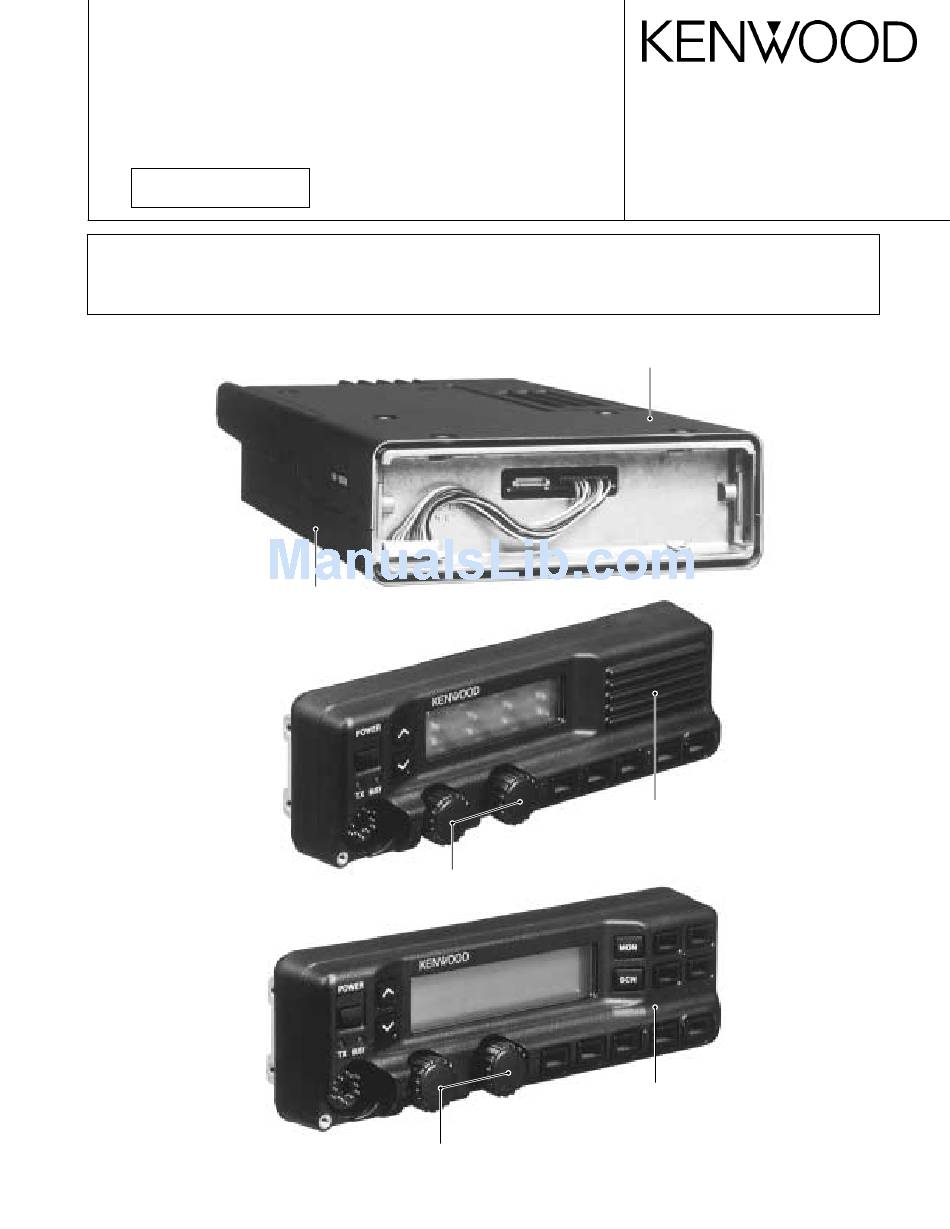

Cabinet (Lower)
(A01-2164-01)
KCH-10
KCH-11
(
)
B
Knob
(K29-4664-04) x 2
Knob
(K29-4664-04) x 2
© 2001-7 PRINTED IN JAPAN
B51-8460-10 ( N ) 1031
Cabinet (Upper)
(A01-2163-01)
Panel assy
(A62-0606-13)
Panel assy
(A62-0607-13)
