Icom IC-2800H Service Manual page 15

Dual band fm transceiver
Hide thumbs Also See for IC-2800H:
Table of Contents

Advertisement

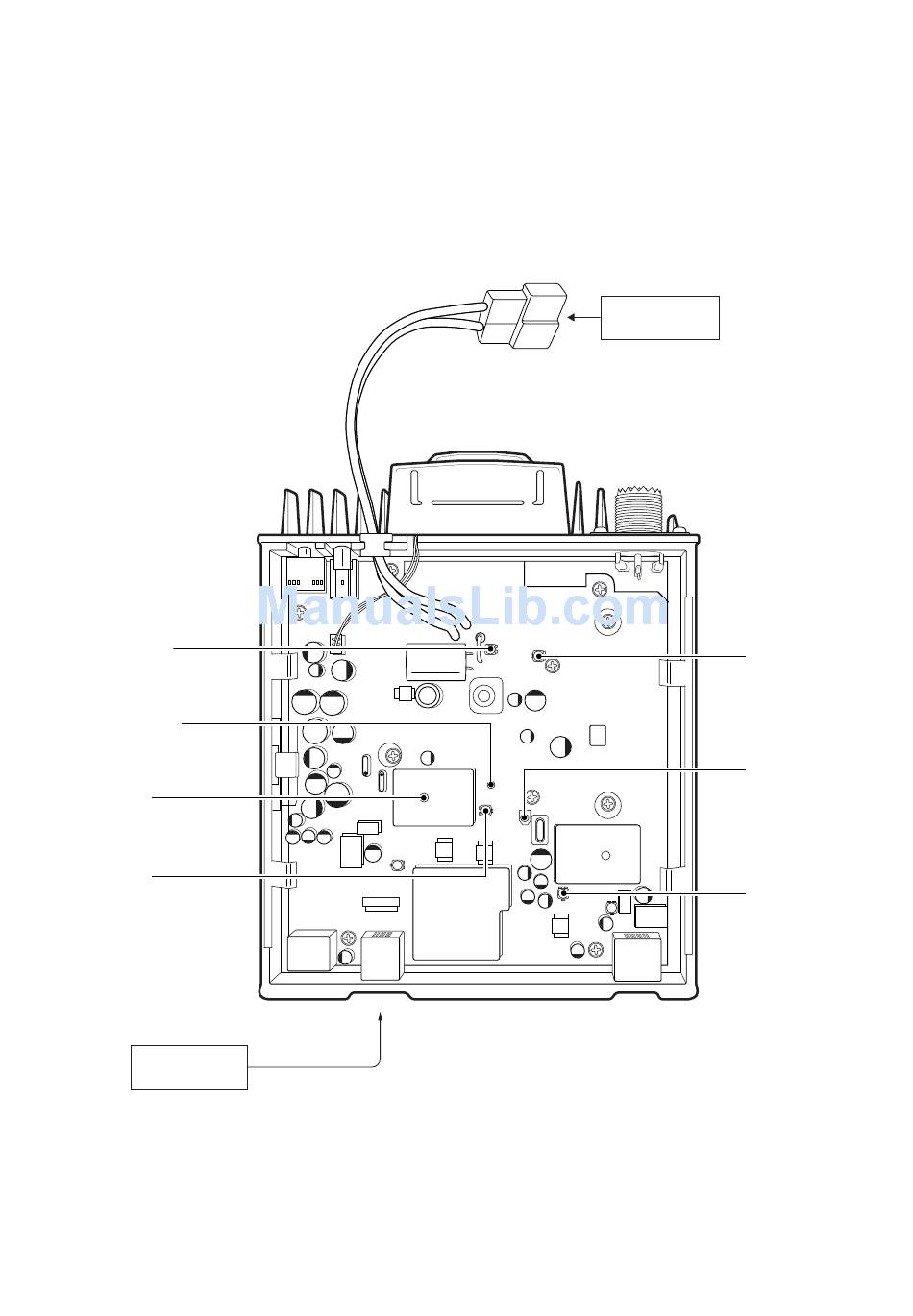

R119
UHF output power
adjustment
CP-LV
PLL lock voltage
check point
L2
PLL lock voltage
adjustment
R2
VHF deviation
adjustment
Controller
DC power supply
13.8 V / 20 A
5 - 3
R119
VHF output power
adjustment
C84
Reference frequency
adjustment
R78
UHF deviation
adjustment
