Table of Contents

Summary of Contents for Sony KDL-46551 00

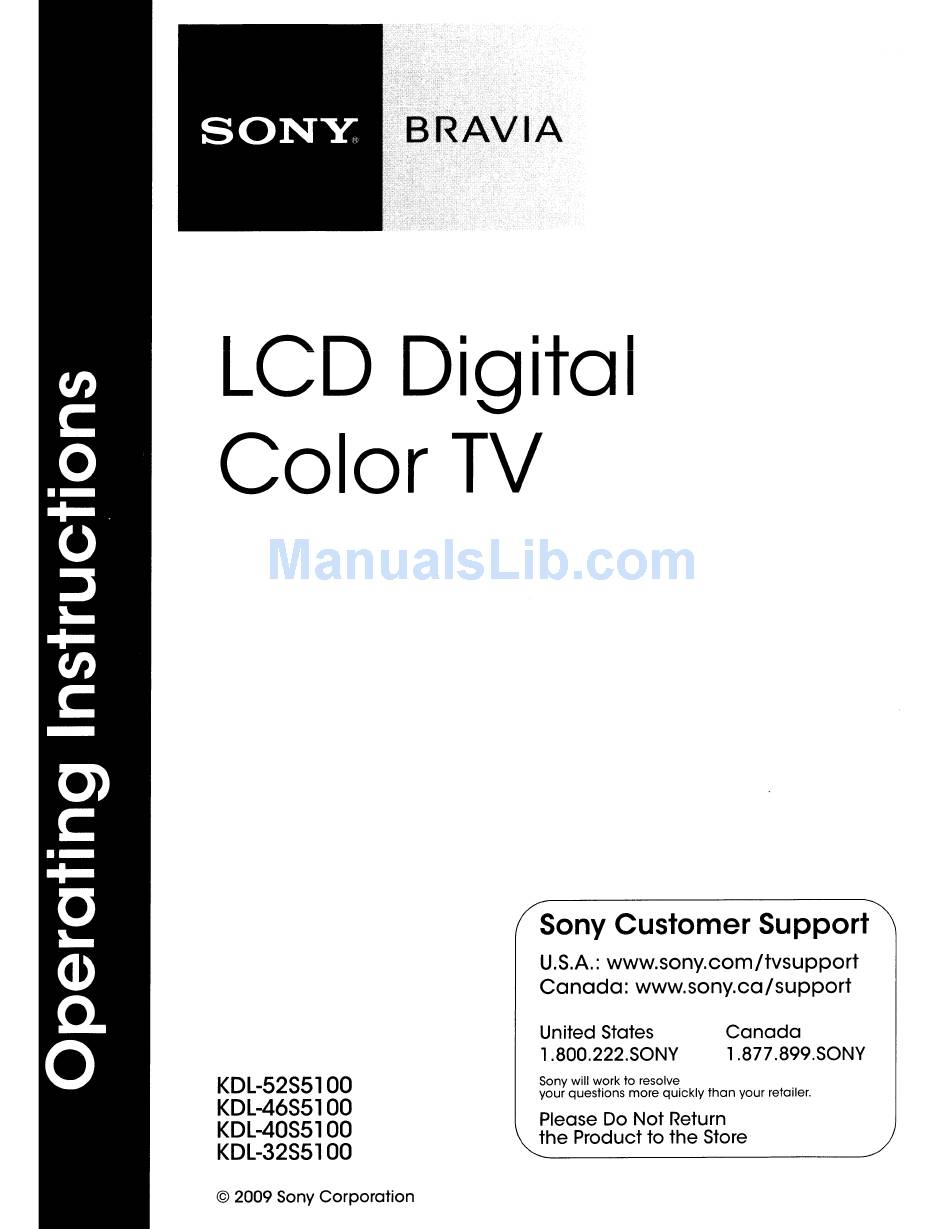

Page 1 Color TV Sony Customer Support U.S.A.: www.sony.com/tvsupport Canada: www.sony.ca/support Canada United States 1.877.899.S0NY 1.800.222.S0NY Sony will work to resolve KDL-5255100 your questions more quickly than your retailer. KDL-46551 00 Please Do Not Return KDL-4055100 the Product to the Store KDL-32551 00...
Page 2 Class B digital device, pursuant to Part 15 Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this of the FCC Rules. These limits are designed to provide...
Page 3 Sufficient expertise is required for TV installations. Be consumption may increase which possibly could exceed the sure to subcontract the installation to a Sony dealer or limits required for the ENERGY STAR qualification. licensed contractor and pay adequate attention to safety during the installation.
Page 4: Table Of Contents
Securing the TV Things to consider Inserting Batteries into the Troubleshooting Remote Control Specifications Initial Setup Index Operating the TV Remote Control Button Description TV Controls and Indicators Customer Support On-line Registration United States United States http://www.sony.com/tvsupport http://productregistration.sony.com Canada Canada http://www.sony.calsupport http://www.SonyStyle.calregistration...
Page 5: Introducing Your New Bravia
Welcome to the World of BRAVIA@ Welcome to the World of BRAVIA@ Thank you for purchasing this Sony BRAVIA® high-definition television. Use the Thank you for purchasing this Sony BRAVIA® high-definition television. Use the documentation listed below to get the most out of your TV.
Page 6: The Four Steps To A Full Hd Experience
The following features have been included to help you get started enjoying your new TV. BRAVIA Sync: Your BRAVIA TV communicates with other Sony equipment )0>- supporting the Control for HOMI function (page 16).
Page 7: Getting Started
Getting Started Setting Up Your TV Some TV models are packaged with a detached Table-Top Stand so you can mount it to a wall • right away. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You will need a Phillips screwdriver and the supplied screws to complete the task.
Page 8: Locating Inputs And Outputs
Locating Inputs and Outputs Rear Panel Side Panel Item Description SERVICE This port is to be used when service is required. VIDEO IN 1/ This input port can be used as composite video input (VIDEO 1) or as component video input (COMPONENT 1). For composite use, connect the yellow jack to YN COMPONENT for video and use audio Land R for audio signal.
Page 9 Item Description [§] DIGITAL AUDIO Connects to the optical audio input of a digital audio equipment that is PCM optical OUT (OPTICAL) compatible. inp~t t~yo~; rn--CABLEJ---RF that connects Cable or over-the-air antenna..-..----..-.--.---..---.. ANTENNA • PC IN Connects to a personal computer's video and audio output connector. Can also be (RGB/AUDIO) connected to other analog RGB equipment.
Page 10: Connecting Other Equipment
Connecting Other Equipment Blu-ray Digital Personal Disc Player/ DVD satellite Digital Audio Side panel computer "PS3" player receiver cable box system AUDIO ~[ID] Rear of TV CABLE/ANTENNA VCR/ Digital recorder Analog audio Analog Digital audio Game system/ equipment audio equipment Camcorder (AN Receiver/ equipment Home Theater) (DVI only)
Page 11: Bundling The Connecting Cables
Do not bundle the AC power cord with other connecting cables. • Securing the TV Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even •...
Page 12: Inserting Batteries Into The Remote Control
Inserting Batteries into the Remote Control Insert two size AA batteries (supplied) by matching on the batteries to the diagram inside the battery compartment of P ush the remote control. open Initial Setup The Initial Setup screen appears when you turn on the TV for the first time. During this initial setup, you can perform the following: Select the language for the on-screen display text.
Page 13: Operating The Tv
Operating the TV Remote Control Button Description channel/pro~ra~ ~r [] DISPLAY"" Press to display information about input Fl ; . . l' pnl;VFP r, .. you are watching. The information banner will disappear in a few seconds or press again to exit You can enable or disable •...
Page 14 Press 0-9 to select a channel; the channel changes after a few seconds, or press ENT to change channels immediately. rnJo Use with 0-9 and ENT to select digital channels. ®' 0, CD For example, to enter 2.1, press and ENT. Press to adjust the volume.
Page 15: Tv Controls And Indicators
PC Input (see online Reference Book for more details). If the LED blinks in red continuously, this may indicate the TV needs servicing (see contacting Sony information on the front cover). @]'FiOWe-R TED-----'Light~·~p'fn-g~eenwhen-ihe-TV is turned on: 1'\1.-------.
Page 16: Using Bravia Sync With Control For Hdmi
External Inputs • Equipment listed under will turn on automatically when selected. When a Sony NV receiver with BRAVIA Sync is connected, the following additional operations are possible: • Turning on the NV receiver when the TV is turned on.
Page 17: Favorites
Favorites With Favorites, you can manage your preferred TV channels and External Inputs. Addinjtto;If~v,orites " ' k " Press TOOLS to add the current channel or input while you are watching it. Highlight Add to Favorites and press :l'.i~pl;jYlqg;'FaJtQrite's" \-~i ,'>~.i ~ ""...
Page 18: Wide Mode
Wide Mode The Wide Mode feature allows you to select the screen display of your preference. Based on the original source, a black frame or black bars may surround the picture. You can manually change the Wide Mode setting while watching TV by pressing the WIDE button on your remote control.
Page 19: Wide Mode With Pc
Wide Mode with PC Changing the Wide Screen Mode for PC Timing Press WIDE repeatedly to cycle ~()M 1,280 x 768 800 x 600 through the available modes while in • the PC input mode. Wide Zoom Full Pixel displays the picture in its "' , ·...
Page 20: Using The Menus
Using the Menus The MENU button allows you to access the variety of TV settings for you to customize the settings. Navigating through TV Menus button: Allows you to highlight options where applicable. button: Allows you to select the highlighted option and advance to the next screen. •...
Page 21: Other Information
Many problems with picture and sound quality are related to improper connection of the cables; refer to the Quick Setup Guide provided for connections. If you have questions, service needs, or require technical assistance related to the use of your Sony TV even after you read the online Reference Book, contact the following: For US Support: http://www.sony.comltvsupport or call 1-800-222-S0NY (7669)
Page 22: Specifications
Specifications ··"'.l~iti'~~;~~~:[~~tt~~~ijl·KD~';'''l.~]<·m'.l.r .;.~, ~~.--- _f-<"'.'-J:.~,-,:~}k *j:-"-,:~'~¥-:<,-",.i'-;'.!-,";'i))"t.':;::;;::;5:'~~" .. " iV4,< ; ":jf" "':- J;., " <. Y-'",:" "'- ~"- System NTSC: American TV standard Television system ATSC (8VSB terrestrial): ATSC compliant 8VSB QAM on cable: ANSIISCTE 07 2000 (Does not include CableCARD functionality) Channel coverage Analog terrestrial: 2 - 69 I Digital terrestrial: 2 - 69 Analog Cable: I - 135 I Digital Cable: I - 135...
Page 23: Index
Index 0-9 buttons RETURN button AUDIO OUT jack, described Auto Program STANDBY LED BRAVIA Sync buttons TOOLS button BRAVIA Sync with Control for HDMI Troubleshooting CABLE/ANTENNA input, described Using CC button CH +/- button Channels 8, 9 VIDEO/AUDIO (UR) jacks, described Setting up VOL +/- button DIGITAL AUDIO OUT jack, described...
Page 24 To learn more about your TV, visit the online Reference Book at: http://www.sony.com/referencebook Be sure to register yout TV. United States http://productregistration.sony.com Canada http://www.SonyStyle.ca/registration A©f\ ~..,.> c~ Mixed Sources Product group from well-managed forests. controlled sources and recycled wood or fiber 5(5·CO(·001 J95...
Page 26 HD Basic Connection with A/V Receiver HD Basic Connection with Home Theater System Rear of TV Side Panel Rear of TV Side Panel Blu-ray Disc/DVD Cable/ Antenna (dish) SD Cable Box or SD Satellite Receiver Home Theater System Required Cable Types for Connection Notes on Connection: •...
Page 27 Attaching the Table-Top Stand* Fixation du support de table* Instalacion del Soporte de Sobremesa* For all models except 52" size and above.! Pour tous les modeles sauf ceux mesurant 132 cm (52 po) et plus.! Para todos los modelos, excepto de 52 pul adas ma or.
Page 29 Attention Attention Atencion ENGLISH FRANCAIS ESPANOL Preventing TV Tip-Over Eviter les accidents de Prevenci6n de accidentes por teh~viseur Accidents renversement de vuelco y carda del televisor The U.S. Consumer Product Safety La commission de surveillance des La Comision de Seguridad de Productos Commission (CPSC) estimates that in produits de consommation (CSPC) de EE.UU.
Page 30 Sections I and 2 above provided th;'lt you also do onc of the following: Source code for these executables and libraries call be obtained using the following link: hllp:/lwww.sony.com/linux al Act.:OInpany it with the complete corresponding machine·readable source code. which must be...
Page 31 NO WARRANTY To protect each distributor. we w<.lnt to m<:tke it very clear that there is no warranty for the free library. Also. II. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE. THERE IS NO WARRANTY FOR if the library is modified by someone else and p<lsscd on. the recipients should know that what they have is THE PROGRAM.
Page 32 Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; on the Library). you indicate your acceplance of this License 10 do so. and all its terms and conditions for rather.
Page 33 INDEPENDENT JPEG GROUP SOFTWARE The module. Iibjpeg.so is the work of the Independent JPEG Group. © copyrighl 1991 - 1998, Thomas G. Lane. All righls reserved. SOFTWARE DEVELOPED BY THE OPENSSL PROJECT FOR USE IN THE SSL TOOLKIT Copyright (cl 1998-2004 The OpenSSL Project. All rights reserved. Redistribution and use in source and This library is free for commercial and non-commercial use as long as the following conditions are aheared binary forms.
Page 34 Sony Television. You agree not to modify, reverse engineer, decompile you. or disassemble the Sony Software in whole or in part or to use the Sony Software in whole or in part for any purpose other than allowed under this EULA. In addition, you may transfer all of your rights under this...
Page 35 By accepting this license agreement, you agree to abide by all relevant U.S. export laws and regulations in the purchase and use of the Sony product being acquired, including, but not limited to those regulations relating to the...
Page 36 VCRs, DVD players and similar products. For more information, call1-888-CALL-FCC, or go to www.DTV.9S)Y.. For information about subsidized coupons for converter boxes, go to www.dtv2009.9S)Y. or call the NTIA at 1-888-DTV-2009. 11111111111 4106120121 © 2008 Sony Corporation Printed in U.S.A.
Page 37 If the fire, bodily injury or property damage. provided plug does not fit into your outlet. consult an 3-299-071-01(1) electrician for replacement 2008 Sony Corporation © of the obsolete outlet. 11111111111111111111111111111 Printed in Mexico 3299071011 WARNING...
Page 38 To preserve our environment, dispose of "¢:~III ~ ~~ TV as the impact can cause J-GJ Use only an original Sony AC power cord Wall-Mount Bracket. When used batteries according to your local laws the LCD screen glass to installing or removing the 'I' V and the with your TV;...
Page 39 ("You" or "Your") for the time periods and as set forth below. Under this Limited Warranty, SONY will, at its option, (i) repair the product using new or refurbished parts or (ii) replace the product with a new or refurbished product. "Refurbished" means a product or part that has been returned to its original specifications.
Page 40 This Limited Warranty is valid only on products purchased and located in the United States (excluding territories) or United States military facilities. SONY specifically does not represent that it will be able to repair any product under this warranty or make aproduct exchange without risk to or loss of programs or data.
