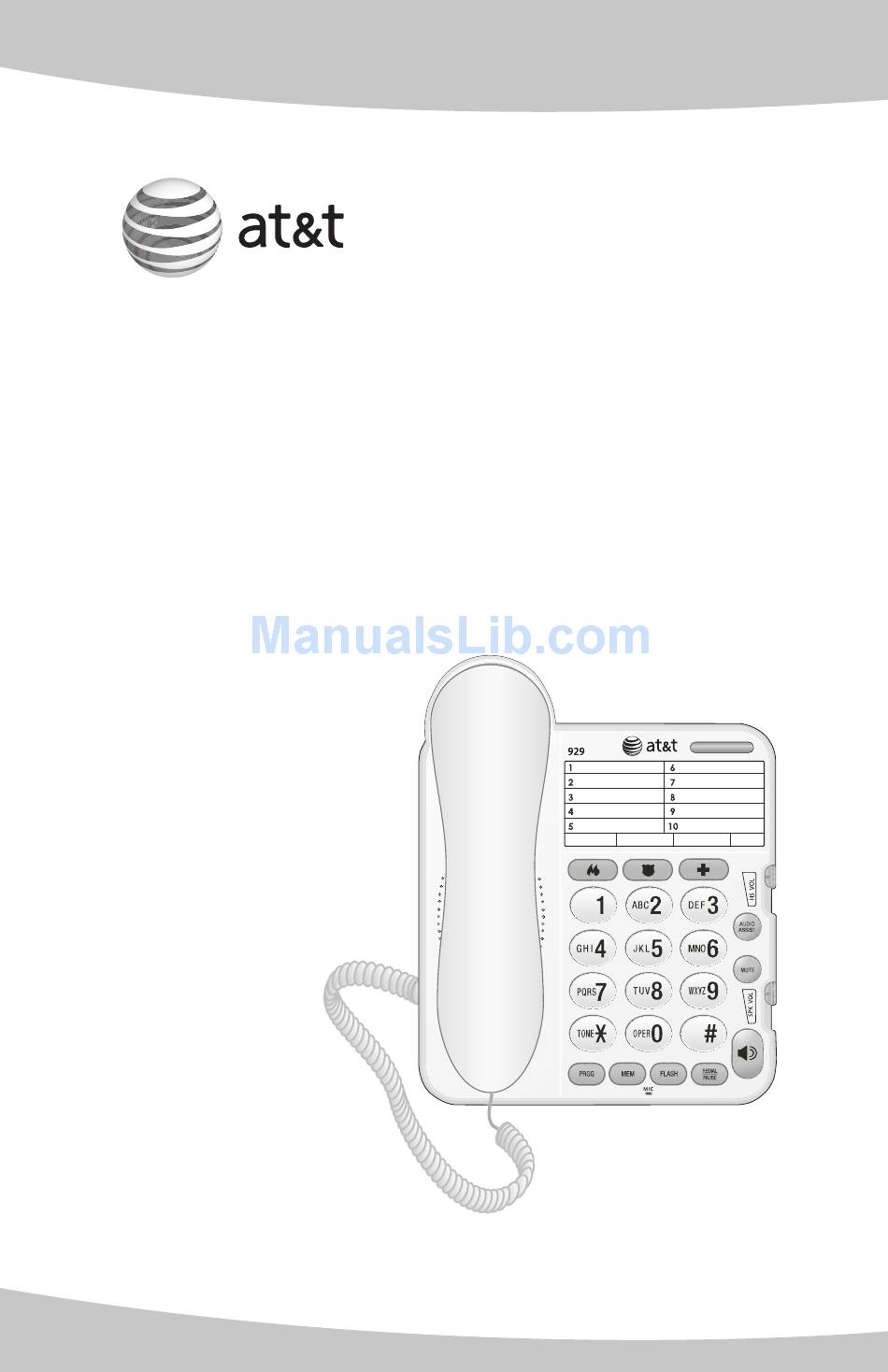

  • Page 1 User’s manual Part 2 Big button telephone 929...
  • Page 2 Congratulations on your purchase of this AT&T product. Before using this AT&T product, please read the Important product information (Part 1). Please thoroughly read this user’s manual for all the feature operations and troubleshooting information necessary to install and operate your new AT&T product.

  • Page 3: Table Of Contents

    Table of contents Before you begin Telephone memory Parts checklist ......2 Directory card ......12 Store a number in Installation memory ......... 12 Table/desk installation ..3 Store a pause in a Wall installation ...... 5 memory number ....13 Dial a number in a Telephone operation one-touch memory ..

  • Page 4: Before You Begin

    Before you begin Parts checklist Your telephone contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. User's manual User's manual Short telephone line cord Part 1 Part 2 Part 1 Important product information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual.

  • Page 5: Installation

    Installation Installation options The telephone base comes with the mounting bracket already installed for desktop use. If wall mounting is desired, a telephone outlet wall mounting plate with mounting studs is required. This mounting plate with studs is available for purchase from many hardware or consumer electronics retailers and may require professional installation.
  • Page 6 Installation Install batteries to provide power for the AUDIO ASSIST, MUTE lights. Press the battery cover tabs as shown below to open the battery compartment. Install three new alkaline AA batteries (not included). Make sure to follow the polarity guide in the battery compartment.

  • Page 7: Wall Installation

    Installation Plug one end of the telephone line cord into the jack labeled LINE IN on the telephone base. Plug the other end of the telephone line cord into a telephone wall jack. DSL filter (not included) required if you have DSL high-speed Internet service.
  • Page 8 Installation Install batteries to provide power for the AUDIO ASSIST, MUTE lights. Press the battery cover tabs as shown below to open the battery compartment. Install three new alkaline AA batteries (not included). Make sure to follow the polarity guide in the battery compartment.
  • Page 9 Installation Reverse the handset tab. This tab holds the handset when you hang up. Hold down the switchhook and slide the tab up and out of its slot. Turn the tab so that the end with the hook is up. Then hold down the switchhook while you insert the tab back into its slot.
  • Page 10 Installation Lift the handset or press to listen for a dial tone. If you cannot hear a dial tone, slide HS VOL (handset volume) or SPK VOL (speakerphone volume) upward. Align the mounting studs on the telephone outlet plate with the mounting holes on the bracket.

  • Page 11: Telephone Operation

    Telephone operation Telephone operation Make a call Lift the handset or press When you hear a dial tone, dial the number you wish to call using the dial pad or memory buttons. Answer a call When the telephone rings and the ringing indicator flashes, lift up the handset or press to answer the...

  • Page 12: Redial

    Telephone operation Redial The last number dialed is stored in the redial memory. To dial that number, lift the handset or press to listen for a dial tone, then press REDIAL/PAUSE. The number is dialed automatically. NOTE: Redial memory can store up to 32 digits.

  • Page 13: Handset Volume

    Telephone operation Handset volume Slide HS VOL (handset volume) on the telephone base to adjust the volume of what you hear through the handset. Slide the control downward to decrease or upward to increase the volume. Ringer volume Slide RINGER on the right side of the telephone to adjust the ringer volume to a comfortable level.

  • Page 14: Telephone Memory

    Telephone memory Telephone memory This telephone can store 13 telephone numbers, each up to 1 digits. You can dial numbers stored in memory by pressing one or two buttons. Directory card Lift the plastic cover off the directory card to write down the numbers and names which are stored in the telephone memory on the card.

  • Page 15: Store A Pause In A Memory Number

    Telephone memory Store a pause in a memory number Press REDIAL/PAUSE once to store a three to four second pause in the dialing sequence. Each additional press will add another three to four second pause. NOTE: Each three to four second pause is counted as one digit when storing numbers in the telephone memory.

  • Page 16: Appendix

    Appendix General product care To keep your telephone working and looking good, follow these guidelines: • Avoid putting it near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps). • DO NOT expose it to direct sunlight or moisture. •...

  • Page 17: Troubleshooting

    Appendix Troubleshooting If you have difficulty with your telephone, please try the suggestions below. For Customer Service, visit our website at www.telephones.att.com, or call 1 (800) 222-3111. In Canada, call 1 (866) 288-4268. • Make sure all plugs are connected No dial tone properly.
  • Page 18 Appendix Troubleshooting • Make sure you have installed three new Backlight of alkaline AA batteries (not included) AUDIO ASSIST, following the polarity guide in the battery MUTE or compartment. See Installation on page 4 of is dim or not this user's manual. functioning •...

  • Page 19: Technical Specifications

    Appendix Technical specifications 1.5B Three AA batteries are required for Power backlighting of the AUDIO ASSIST, MUTE lights. The telephone must also be connected to a telephone line for all features to work. 48V + /- 2V Line feed voltage Line loop current 18mA to 100mA Ringer levels...

  • Page 20: Index

    Appendix Index Answer a call One-touch memory Audio assist 11 Pause Batteries 4,  Redial Ringing indicator Directory card Ringer volume End a call Selectable dialing 4,  Erase redial Speakerphone Flash 10 Temporary tone dialing Troubleshooting Two-touch memory Handset tab 7 Handset volume Volume Make a call...
  • Page 21 www.telephones.att.com © 2008 Advanced American Telephones. All rights reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property II, L.P. d/b/a AT&T Intellectual Property licensed to Advanced American Telephones. Printed in China. Issue 5 AT&T 0/08.
