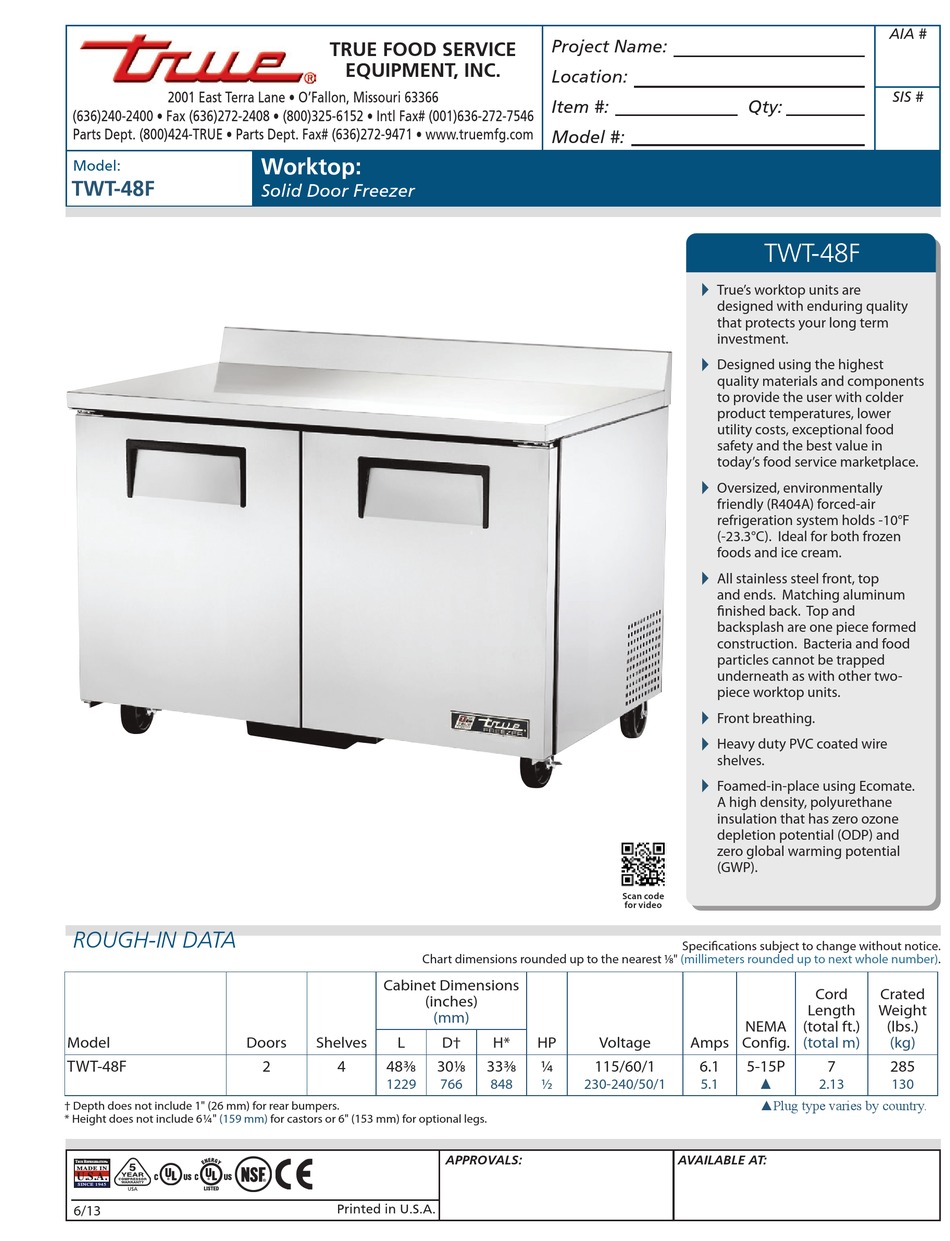

True TWT-48F Specifications

2001 East Terra Lane • O'Fallon, Missouri 63366
(636)240-2400 • Fax (636)272-2408 • (800)325-6152 • Intl Fax# (001)636-272-7546
Parts Dept. (800)424-TRUE • Parts Dept. Fax# (636)272-9471 • www.truemfg.com
Model:
TWT-48F
ROUGH-IN DATA
Model
TWT-48F
† Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 61/4" (159 mm)
T R
RUE EFRIGERATION
®
MADE IN
U.S.A.
SINCE 1945
6/13
TRUE FOOD SERVICE
EQUIPMENT, INC.
Worktop:
Solid Door Freezer
Chart dimensions rounded up to the nearest 1/8"
Cabinet Dimensions
(inches)
Doors Shelves L
2 4 483/8
1229
for castors or 6" (153 mm) for optional legs.
Printed in U.S.A.
Project Name:
Location:
Item #:
Model #:
(mm)
D† H* HP Voltage
301/8 333/8 1/4 115/60/1
766 848 1/2 230-240/50/1
APPROVALS:
Qty:
TWT-48F

True's worktop units are
designed with enduring quality
that protects your long term
investment.

Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower
utility costs, exceptional food
safety and the best value in
today's food service marketplace.

Oversized, environmentally
friendly (R404A) forced-air
refrigeration system holds -10°F
(-23.3°C). Ideal for both frozen
foods and ice cream.

All stainless steel front, top
and ends. Matching aluminum
finished back. Top and
backsplash are one piece formed
construction. Bacteria and food
particles cannot be trapped
underneath as with other two-
piece worktop units.

Front breathing.

Heavy duty PVC coated wire
shelves.

Foamed-in-place using Ecomate.
A high density, polyurethane
insulation that has zero ozone
depletion potential (ODP) and
zero global warming potential
(GWP).
Scan code
for video
Specifications subject to change without notice.
(millimeters rounded up to next whole
NEMA
Amps Config.
6.1 5-15P
▲
5.1
▲Plug type varies by country.
AVAILABLE AT:
AIA #
SIS #
number).
Cord Crated
Length Weight
(total ft.) (lbs.)
(total m) (kg)
7 285
2.13 130
