American Standard Mezzo 9960.001 Installation Instructions

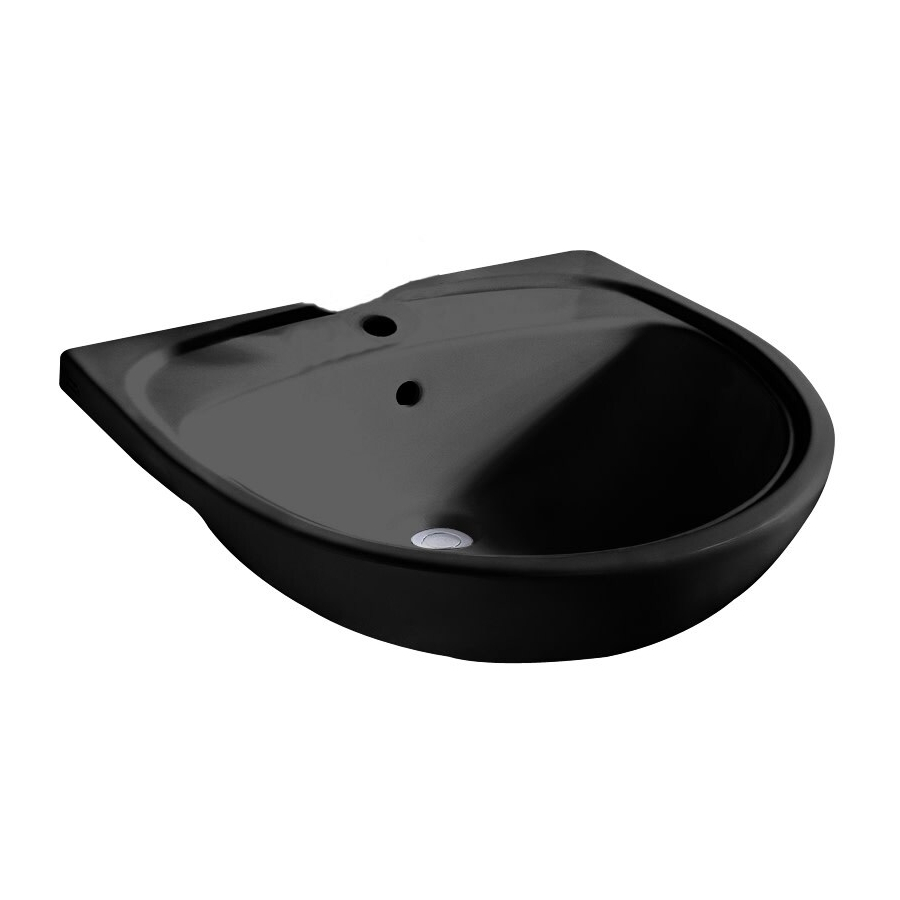

MEZZO™ SEMI - COUNTERTOP SINK
• Space saving design installs on a minimum
countertop depth of 13"
• Made from fireclay china
• Rear overflow
• Recessed self-draining deck
• Barrier-free design
• Self rimming with sealant
• Cutout template and mounting kit provided
(Faucet shown not included)
❏
9960.803 Faucet holes on 8" (203mm) centers
(illustrated)
❏
9960.403 Faucet holes on 4" (102mm) centers
❏ 9960.001 Center hole only
Nominal Dimensions:
22" (559mm) wide, 21-1/2" (546mm) deep
Bowl sizes:
19" (482mm) wide
15" (381mm) front to back
6-7/8" (175mm) deep
Fixture Dimensions conform to ANSI Standard
A112.19.9M
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.9M for Non-Vitreous
Ceramic Fixtures
• CAN/CSA B45 series
• A1995 National Building Code, section 3.7 and
CAN/CSA-B651-02 and OBC 3.8
To Be Specified:
❏ Color: ❏ White ❏ Bone ❏ Linen ❏ Black
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies & Stops:
❏ Trap 1-1/4" (32 mm):
* See faucet section for additional models available
NOTES:
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP
ARE SUGGESTED.
FOR COUNTERTOP CUTOUT AND INSTALLATION INSTRUCTIONS
USE TEMPLATE SUPPLIED WITH SINK.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
INSTALLATION INSTRUCTIONS SUPPLIED WITH LAVATORY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.9M.
These measurements are subject to change or cancellation.
No responsibility is assumed for use of superseded or voided pages.
© 2008 AS America Inc.
SEMI-COUNTERTOP SINK
1-3/8" (35mm) Dia. (559mm)
1 Hole for CHO
9960 001
(203mm)
(102mm)
2-3/4"
(70mm)
Countertop
15"
(381mm)
(482mm)
13" min.
Finished
(330mm)
Wall
1-3/8"
(35mm)
8-1/4"
4-3/8"
(210mm) *
(111mm)
10-5/8"
(270mm)
*
12-7/8"
(327mm)
WATERPROOF
BASIN
SEALANT
COUNTERTOP -
BY OTHERS
MOUNTING BRACKET
#10 SCREW
SCREW
NUT
FLAT
WASHER
J28
MEZZO™
22"
1-1/4" (32mm) Dia. 3 Holes
for 4" (102mm) centres
8" 9960 403
1-3/8" (35mm) Dia. 3 Holes
4"
for 8" (203mm) centres
9960 803
8"
(203mm)
10-1/2"
(267mm)
19"
11"
(279mm)
10-1/2"
(cut out size)
(267mm)
Countertop
By Others
2-1/2"
(64mm) 10-1/2"
(267mm)
SUPPLY
Finished
1-1/4 O.D.
Floor
WASTE
Revised 2/08
FIRECLAY
21-1/2"
(546mm)
6"
(152mm)
34"
(864mm)
IN ONTARIO
33"
(838mm)
