NETGEAR Push2TV Installation Manual

Push2TV HD TV Adapter for Intel® Wireless Display

Package Contents

Push2TV adapter
Power cord

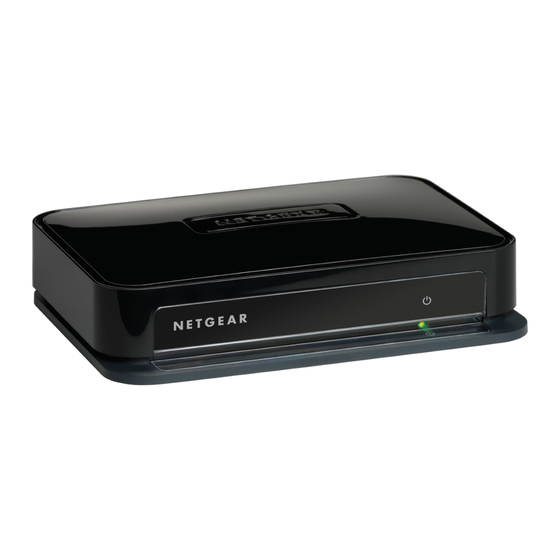

Push2TV Front and Back Views
Composite
Power On/Off HDMI
Installation
Installation Guide
To install and set up the Push2TV adapter:
1. Connect the Push2TV adapter to your TV and plug in the power cord.
The Push2TV adapter LED is red when the adapter powers up. Then the LED
HDMI cable
turns amber to indicate the adapter is ready, but is not yet connected to your
computer.
2. Turn on your TV and select the correct TV input source for your TV.
• If you are not sure which input source should be used, check the
documentation that came with your TV set.
• The Ready for Connection screen displays on your TV within 30 seconds.
LED
If you do not see this screen, make sure the TV input is set to the port where the
Push2TV adapter is connected and all cable connections are firmly secured.
3. On your laptop, launch the Intel Wireless Display software. There are two ways
to do this:
• If your laptop has a button or key, press it.
• From Windows select Start. Type Intel Wireless Display in the search field.
Select and run the Intel Wireless Display software.
4. Use the Intel Wireless Display software to scan and find the Push2TV adapter.
The screen on the right shows that the
Intel Wireless Display software has found
the wireless adapter.
5. Double-click the detected Push2TV
adapter to connect to it. The LED on the
Push2TV adapter starts flashing green.
6. If you are connecting the laptop to the
Push2TV adapter for the first time, the
Push2TV adapter displays a 4-digit security
code on the TV. Enter this 4-digit security
code into the Intel Wireless Display
software.
7. Within a few seconds the TV screen will display your laptop screen. The LED
on the Push2TV adapter turns solid green.
You are now ready to use Push2TV for Intel Wireless Display.
