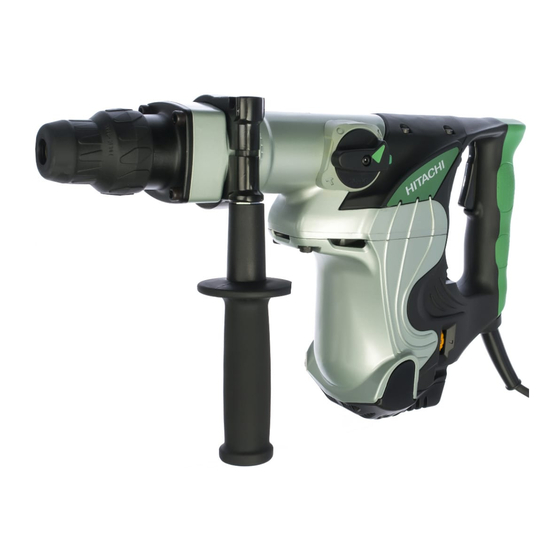

GENERAL OPERATIONAL PRECAUTIONS WARNING! When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following. Read all these instructions before operating this product and save these instructions. For safe operations: Keep work area clean.
English SPECIFICATIONS Voltage (by areas)* Power input Capacity No load speed Full-load impact rate Weight (without cord, side handle) * Be sure to check the nameplate on product as it is subject to change by areas. STANDARD ACCESSORIES (1) Case (Molded plastic) ... 1 (2) Side Handle ...
4. How to install tool NOTE For tools such as a bull point and a cold chisel, use only Hitachi genuine parts. (1) Clean, then smear the tool shank with the grease provided in the green tube (Fig. 1). (2) To attach the tool (SDS max shank), insert it into the hole until it contacts the innermost end of the hole as illustrated in Fig.
English (2) It is unnecessary to forcibly press the rotary hammer main body. It is sufficient to slightly press the rotary hammer to an extent that shavings are freely discharged. CAUTION Although this machine is equipped with a safety clutch, if the drill bit becomes bound in concrete or other material, the resultant stoppage of the drill bit could cause the machine body to turn in reaction.
(3) After replenishing the grease, install the crank cover securely. NOTE The Hitachi Electric Hammer Grease A is of the low viscosity type. If necessary purchase from an Hitachi authorized Service center. MAINTENANCE AND INSPECTION 1. Inspecting the tool...
Page 10
English NOTE Due HITACHI’s continuing program of research and development, the specifications herein are subject to change without prior notice.
Page 11
PRECAUCIONES GENERALES PARA OPERACIÓN ¡ADVERTENCIA! Cuando utilice herramientas eléctricas, tome las medidas de seguridad básicas para reducir el riesgo de incendios, descargas eléctricas, y lesiones, incluyendo lo siguiente. Lea todas todas estas instrucciones antes de utilizar este producto y guárdelas. Para realizar roperaciones seguras: Mantener el área de trabajo limpia, áreas y bancos de trabajo desordenados son causa de da ños...
Español PRECAUCIONES AL USAR EL MARTILLO PERFORADOR Usar protectores de oídos durante el trabajo. No tocar la broca durante ni inmdiatamente después de trabajar, puesto que se pone ardiente y puede causar quemaduras serias. ESPECIFICACIONES Voltaje (por áreas)* Entrada Capacidad Velocidad sin carga Impacto a carga plena Peso (sin cable ni mango lateral)
4. Montaje de la herramienta NOTA Para usar herramientas tales como el puntero y cortafrío, usar siempre piezas genuinas Hitachi. (1) Limpiar y engrasar la espiga con la grasa provista (Fig. 1) (2) Para fijar la herramienta (espiga SDS max), insértela...
Español (3) Tire de la herramienta y compruebe que se encuentre completamente bloqueada. (4) Para extraer la herramienta, tire completamente de la empuñadura en el sentido de la flecha y tire hacia afuera de la herramienta. 5. Regulación del número de rotaciones y martilleo (Fig. Este martillo rotativo está...
Cuando so requiere cambiar la grasa, proceder como sigue: 1. Período de cambio de grasa: Luego de adquirir la herramienta, cambiarle la grasa cada 6 meses de uso. Consultar para ello con el agente de servicio Hitachi autorizado. Procedimiento de cambio de grasa. Español...
(3) Luego de rellenar la grasa, instalar firmemente la cubierta de la manivela. NOTA La grasa A del martillo eléctrico Hitachi es del tipo de baja densidad. Si es necesario, siempre adquirir la grasa a un agente de servicio Hitachi autorizado.
