KUE 451 USA, CA Edition A 2011; 1; 11, en-US
d2markgr

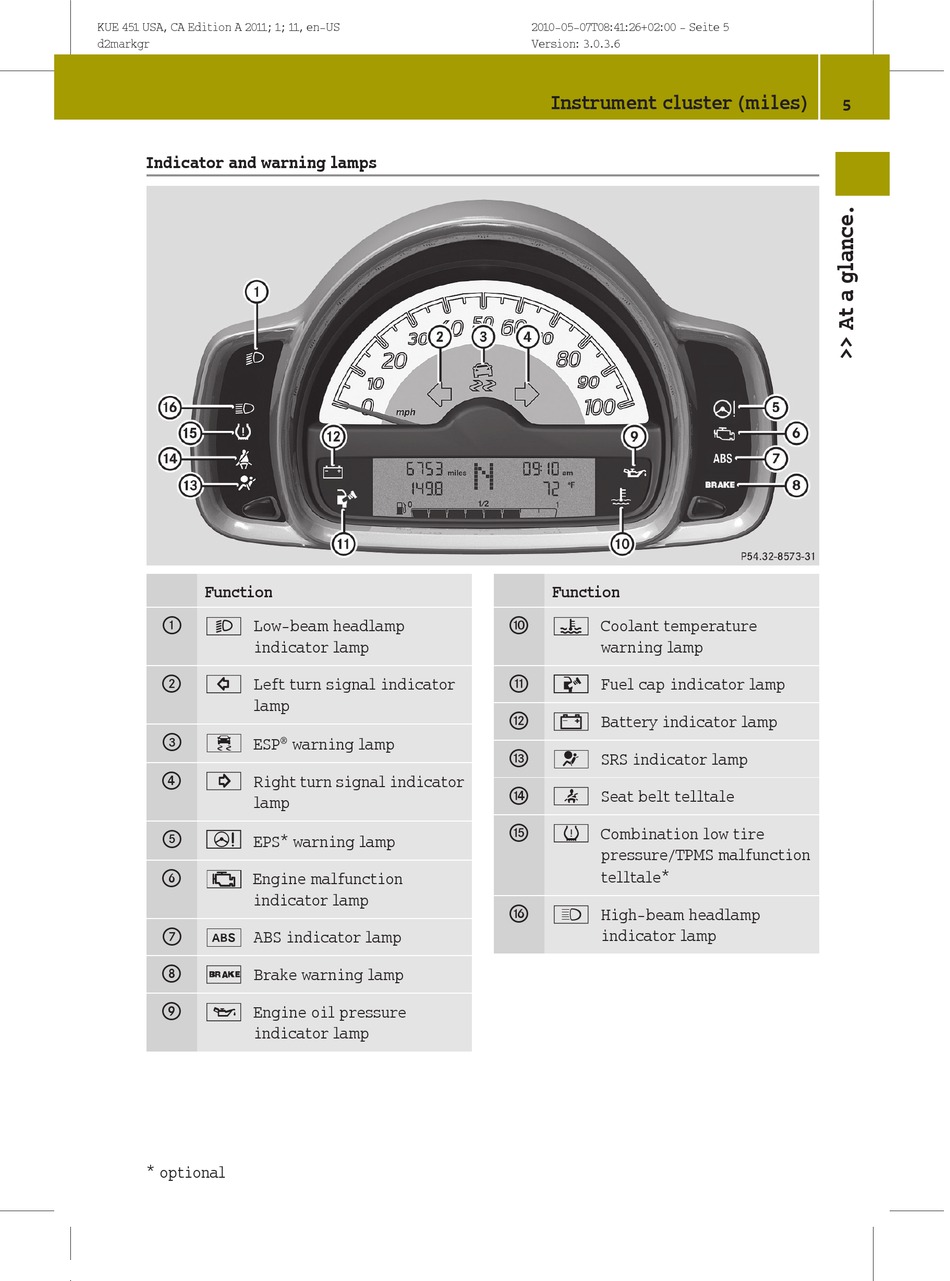

Indicator and warning lamps
Function
:
M Low‑beam headlamp
indicator lamp
;
# Left turn signal indicator
lamp
=
÷ ESP
?
! Right turn signal indicator
lamp
A
D EPS* warning lamp
B
; Engine malfunction
indicator lamp
C
ò ABS indicator lamp
D
$ Brake warning lamp
E
5 Engine oil pressure
indicator lamp
* optional
®
warning lamp
2010-05-07T08:41:26+02:00 - Seite 5
Version: 3.0.3.6
Instrument cluster (miles)
Function
F
? Coolant temperature
warning lamp
G
® Fuel cap indicator lamp
H
# Battery indicator lamp
I
6 SRS indicator lamp
J
7 Seat belt telltale
K
h Combination low tire
pressure/TPMS malfunction
telltale*
L
K High‑beam headlamp
indicator lamp
5
