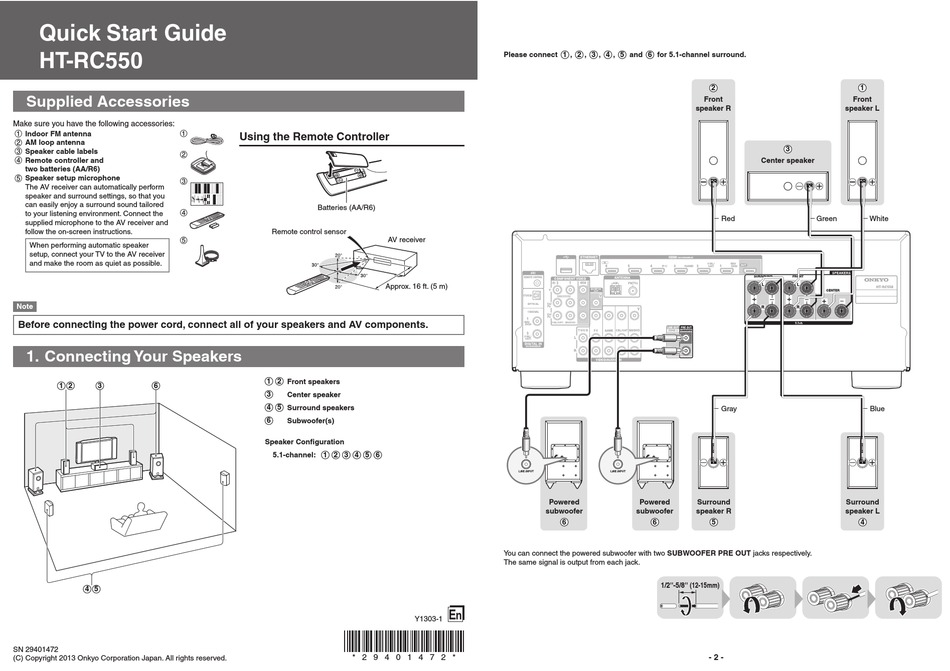

Quick Start Guide
HT-RC550
Supplied Accessories
Make sure you have the following accessories:
a Indoor FM antenna
b AM loop antenna
c Speaker cable labels
d Remote controller and
two batteries (AA/R6)
e Speaker setup microphone
The AV receiver can automatically perform
speaker and surround settings, so that you
can easily enjoy a surround sound tailored
to your listening environment. Connect the
supplied microphone to the AV receiver and
follow the on-screen instructions.
When performing automatic speaker
setup, connect your TV to the AV receiver
and make the room as quiet as possible.
Note
Before connecting the power cord, connect all of your speakers and AV components.
1. Connecting Your Speakers
1 2 3 6
4 5
SN 29401472
(C) Copyright 2013 Onkyo Corporation Japan. All rights reserved.

Using the Remote Controller

Batteries (AA/R6)
Remote control sensor
AV receiver
Approx. 16 ft. (5 m)
1 2 Front speakers
3
Center speaker
4 5 Surround speakers
6 Subwoofer(s)
Speaker Configuration
5.1-channel: 1 2 3 4 5 6
Y1303-1
* 2 9 4 0 1 4 7 2 *
Please connect 1 , 2 , 3 , 4 , 5 and 6 for 5.1-channel surround.
Powered
subwoofer
6
You can connect the powered subwoofer with two SUBWOOFER PRE OUT jacks respectively.
The same signal is output from each jack.
E
n
2
Front
speaker R
3
Center speaker
Red
Gray
Powered Surround
subwoofer speaker R
6 5
1/2''-5/8'' (12-15mm)
- 2 -
1
Front
speaker L
Green White
Blue
Surround
speaker L
4
