Fujitsu Eternus DX60 Setup Manual

Disk storage system fibre channel model.
Hide thumbs


Advertisement

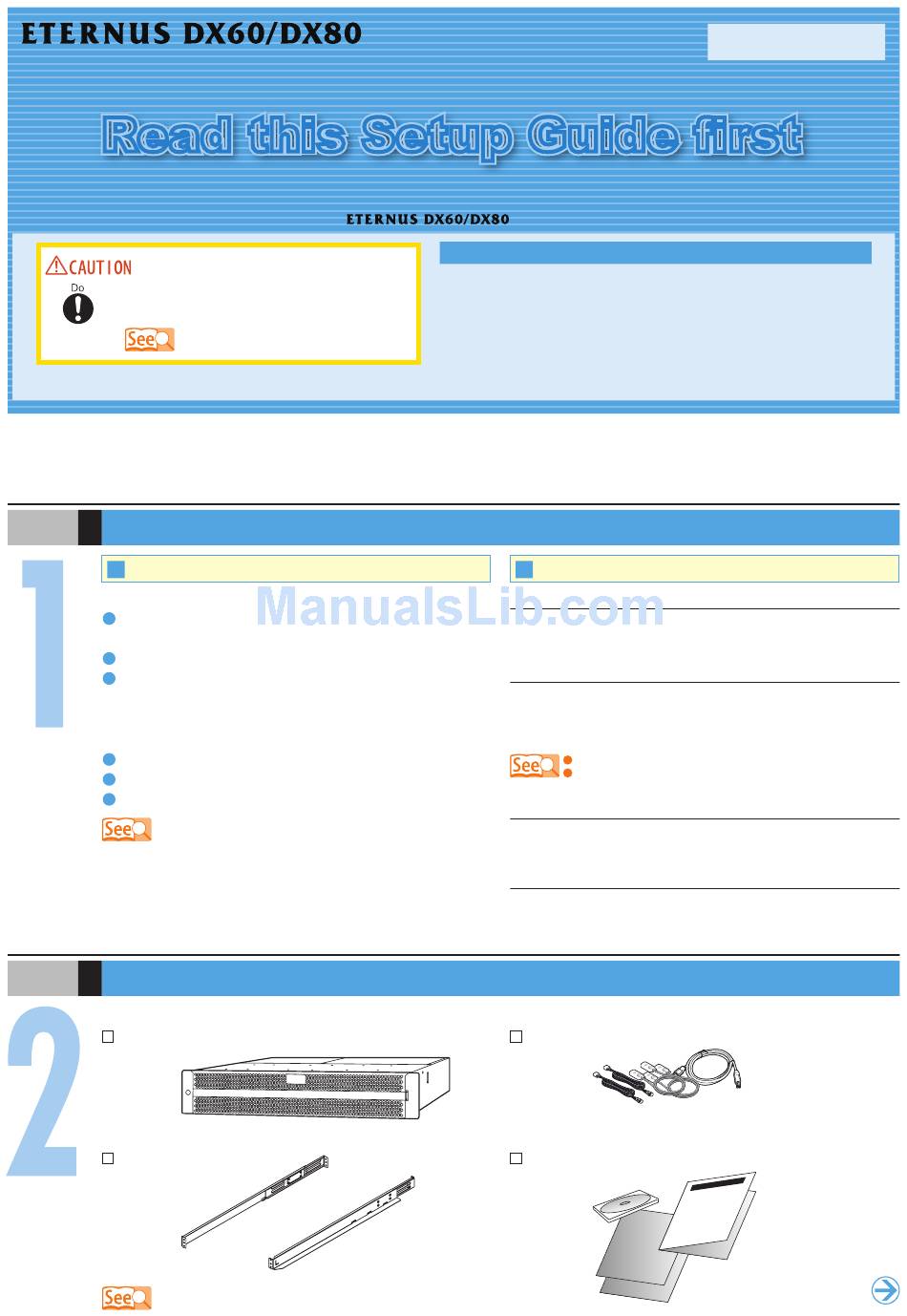

Setup Guide (Fibre Channel model)
Read this Setup Guide first
Read and understand the "Safety Precautions"
before use.
"Safety Precautions"
The company names, product names and service names mentioned in this document are registered trademarks or trademarks of their respective companies.
The latest version of this document and the latest information about the ETERNUS DX60/DX80 is released in the following web-site. Access the following address if needed.
http://www.fujitsu.com/global/services/computing/storage/eternus/products/diskstorage/dx60-dx80/
Preparation & Installation Area
S T E P
Prepare the following items
The following items need to be prepared in advance:
IP addresses and subnet mask
DX80 and maintenance engineer PC)
Network equipment such as a switching hub
Web browser
Firefox™ 3.0.x)
Make sure that all of the following manuals are handy:
Documentation CD
"Safety Precautions"
"Package Contents"
"4.1 Prior Preparation" in the "User Guide"
Check the Package Contents
S T E P
Refer to the "Package Contents" and check that there are no missing items.
ETERNUS DX60/DX80
Rack mount kit
"Package Contents"
This guide describes the workflow required to proceed from installation to
operation of the
(for the ETERNUS DX60/
(Microsoft® Internet Explorer 6.0 or 7.0, Mozilla
Disk storage system
(Fibre Channel model).
Workflow
1
Preparation & Installation
Area
2
Check the Package Contents
3
Installation
4
Cable Connection
5
Pre-Setup Preparation
Secure the Installation Area
Installation space
Check that the installation area meets the space requirements
of the rack in which the ETERNUS DX60/DX80 is to be installed.
Installation requirements
Check that the installation area satisfies all the requirements
described in the "Setting" section of the "ETERNUS DX60/DX80
Disk storage system Safety Precautions"
Power outlets
Check that a sufficient number of suitable wall outlets are
available.
Environmental conditions
Temperature: 5 – 40°C
Humidity: 20 – 80%RH
Misc. cables
Misc. documents
P3AM-3082-02EN
6
ETERNUS DX60/DX80 Setup
7
Setting up the ETERNUS
DX60/DX80 to Support
Maintenance
8
Server Connection
9
Operation and Maintenance
Copyright 2009 FUJITSU LIMITED
"3.1 Preparation" in the "User Guide"
"Safety Precautions"
Proceed to
next
step
