PRODUCT GUIDE

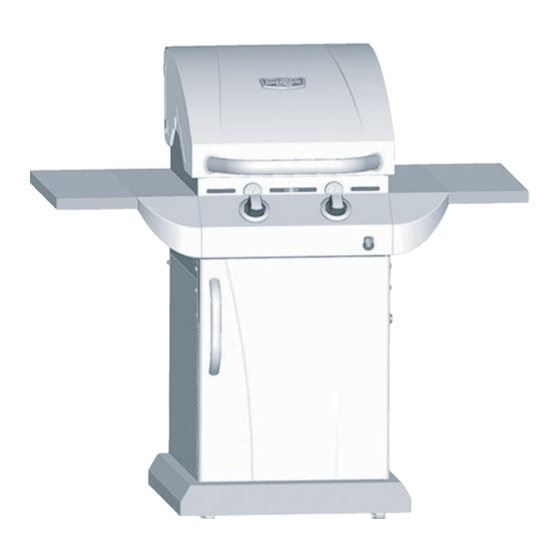

MODEL 463246909
IMPORTANT: Fill out the product record information below.
Serial Number
See rating label on grill for serial number.
Date Purchased
For support and to register your
grill, please visit us at
www.charbroil.com
If you have questions or need
assistance during assembly,
Please call 1-888-430-7870.
Estimated assembly time: 30-40 minutes
®
®
Printed in China
Assembly instructions © 2008
12/03/08 • G350-001-010801
TM REVISION 00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 463246909 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Char-Broil 463246909

  • Page 1 Natural Gas LP-ONLY The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Char-Broil®; America's Legendary Barbeque Company®; American Gourmet®; Bandera®; BrushHawg®; CB940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; DiamondFlame®; Everybody Grills®; Everybody Outside®;...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS D NGER For Your Safety ........2-3 If you smell gas: Use and Care .
  • Page 3 WARNING CAUTION CALIFORNIA PROPOSITION 65 Using pots larger than 6 quarts in capacity could 1. Combustion by-products produced when using exceed weight limit of the this product contain chemicals known to the State of side burner shelf, California to cause cancer, birth defects, and other resulting in failure reproductive harm.
  • Page 4: Use And Care

    LP Cylinder USE AND CARE •The LP cylinder used with your grill must meet the following requirements: •Use LP cylinders only with these required measurements: 12" DANGER (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum. •...
  • Page 5: For Your Safety

    LP Cylinder Exchange Connecting Regulator to the LP Cylinder 1.LP cylinder must be properly secured onto grill. (Refer to •Many retailers that sell grills offer you the option of replacing your empty LP cylinder through an exchange service. Use only assembly section.) those reputable exchange companies that inspect, precision fill, 2.Turn all control knobs to the OFF position.
  • Page 6 Leak Testing Valves, Hose and Regulator 1.Turn all grill control knobs to OFF. 2.Be sure regulator is tightly connected to LP cylinder. 3.Completely open LP cylinder valve by turning hand wheel counterclockwise. If you hear a rushing sound, turn gas off immediately.
  • Page 7 Safety Tips WARNING  Before opening LP cylinder valve, check the coupling nut for tightness.  When grill is not in use, turn off all control knobs and LP For Safe Use of Your Grill and to Avoid Serious cylinder valve. ...
  • Page 8 Burner Flame Check WARNING • Remove cooking grates and flame tamers. Light burners, rotate knobs from HIGH to LOW . You should see a smaller Turn controls and gas source or tank OFF when not flame in LOW position than seen on HIGH. Perform burner in use.
  • Page 9: Spider Alert

    Cleaning the Burner Assembly CAUTION Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting grill. 1. Turn gas off at control knobs and LP cylinder. SPIDER ALERT! 2. Remove cooking grates and flame tamers. 3.
  • Page 10: Limited Warranty

    LIMITED WARRANTY This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*.
  • Page 11: Parts List

    PARTS LIST Key Qty Description Key Qty Description 1 CART LEFT SIDE PANEL 1 TOP LID, OUTER KK 1 CART RIGHT SIDE PANEL 1 INNER INSERT F/ TOP LID 1 BOTTOM SHELF 2 BEZEL, F/ LID HANDLE MM 1 TANK SCREW, F/ BOTTOM SHELF 1 HANDLE F/ TOP LID NN 2 CASTER, LOCKING 1 LOG P O LATE...
  • Page 12: Parts Diagram

    PARTS DIAGRAM...
  • Page 13: Assembly

    ASSEMBLY Attach the two locking casters at the rear of the bottom shelf and the two Non-lock casters at the front. Non-lock caster Locking caster Bottom shelf Attach side panels to bottom shelf using three 1/4-20x1/2” screw 1/4-20x1/2” screws, 7mm lock washers, and 7mm flat washers per panel.
  • Page 14 This step requires two people to lift and position grill head onto cart. Carefully lower the grill head onto the cart, aligning slots at bottom of grill head with posts on cart side panels. Make sure the regulator hose is hanging inside the cart.
  • Page 15 Pull out the two knobs from control panel. Insert temperature gauge stem into the bigger hole above knob bezel, shown A. Make sure the gauge is pushed in as far as it will go, then push the gauge downward until it clips into the panel, shown B/C. Re-install the two knobs.
  • Page 16 Attach foldable side shelf brackets to the tracks under right side shelf using one shoulder screw, 7mm flat washer, 7mm lock washer and 1/4” nut each side, shown A/B. Pull foldable side shelf outward and press it down, shown C. Push foldable side shelf toward right side shelf untill they gather up, shown D.
  • Page 17 Insert flange on right side shelf into side shelf brackets on side of firebox, shown A. Attach right side shelf using three 1/4”-20x3/4” screws, 7mm flat washers, 7mm lock washers and 1/4” nuts, shown B. Attach rear of shelf using one 1/4-20x1½” screw, 7mm lock washer, and 7mm flat washer in lower hole, shown C.
  • Page 18 Insert front brace under control panel and between cart side panels. Make sure door hinge pins are on the top side and facing the front. Secure using two 1/4-20x1½” screws, 7mm lock washers, and 7mm flat washers on each side. NOTE: MAKE SURE THAT THE FRONT BRACE IS MOUNTED IN THE MOST DOWNWARD POSITION WHEN ASSEMBLED TO CART.
  • Page 19 Insert hinge pin on bottom of door into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole on top of door, and release hinge pin into door. PRESS Top of door Door Hinge pin on bottom of door Release the cap and nut from electronic ignition module.
  • Page 20 Install flame tamers by sliding one end of each flame tamer into slots at front of firebox and resting opposite end on pins in back of firebox. Front of firebox Flame tamers Back of firebox Place cooking grates onto the firebox as shown. Insert the two wire ends at rear of warming rack into holes in back of firebox.
  • Page 21 On back of grill, slide grease tray into opening in upper back panel. CAUTION Failure to install grease tray will cause hot grease to drip from bottom of grill with risk of fire or property damage. Grease tray Unscrew electronic ignition cap on cart right side panel.
  • Page 22 LP CYLINDER IS SOLD SEPARATELY. Fill and leak check the cylinder before attaching to grill and regulator (see Use & Care section). Once cylinder has been filled and leak checked, place cylinder into hole in bottom shelf. Make sure cylinder valve is facing front of grill.
  • Page 23: Troubleshooting

    EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department. Possible Cause Prevention/Solution Emergencies Gas leaking from •Damaged hose. •Turn off gas at LP cylinder or at source on natural gas systems. If cracked/cut/burned anything but burned, replace valve/hose/regulator.
  • Page 24 Troubleshooting (continued) Problem Possible Cause Prevention/Solution Burner(s) will not light ELECTRONIC IGNITION: using ignitor. •No spark, no ignition noise. • See Section I of Electronic Ignition System. (See Electronic Ignition Troubleshooting also) •No spark, some ignition noise. • See Section II of Electronic Ignition System. •Sparks, but not at electrode or at full •...
  • Page 25 Troubleshooting - Electronic Ignition Problem (Ignition) Possible Cause Check Procedure Prevention/Solution SECTION I No sparks appear at •Battery not installed •Check battery orientation. •Install battery (make sure that “+” and “–” any electrodes when properly. connectors are oriented correctly, with “+” end up and “–”...
  • Page 26 NOTES...
