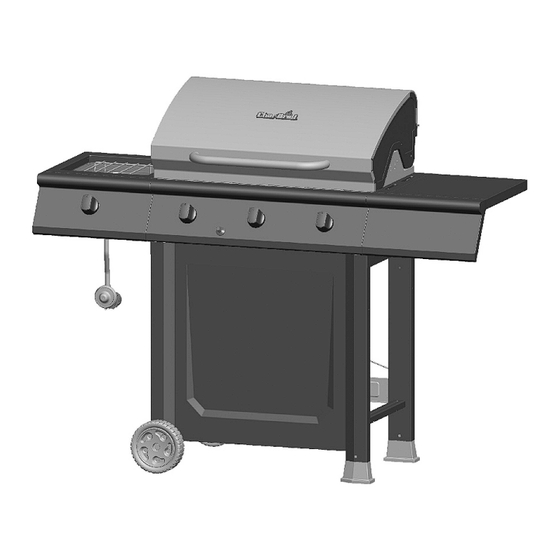

Char-Broil 463724711 Product Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Caldera®; Charcoal2Go®; Char-Broil®; American Gourmet®;
Bandera®; Brush Hawg®; CB 940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; Everybody Grills®; Grill 2 Go®; Grill 2 Go® Express®; Grill Lovers®; Infrared
Grilling That's All About U®; Keepers of the Flame®; Magneto®; New Braunfels Smoker Company®; Patio Bistro®; Patio Caddie®; Patio Kitchen®; Pro-Sear®;
RED®; Quantum®; Santa Fe®; Sear and Grill®; Sierra®; Signature Series®; Sure2Burn®; The Big Easy®; U®; Wild West Tradition®; and the following marks:
The following are trademarks of W.C. Bradley Co.:America's Legendary Barbeque Company™; Advantage Series™; Auto-Clean™;Chef Tested™; Commercial
Series™; Designer Series™;; Diamond Flame™; Double Chef™; Everybody Outside™; FastStart™; FlavorMaster™; Front Avenue™; Grill 2 Go® Advantage™;
Grill 2 Go® Ice™; Hog and Yard Bird™; H20 Smoker™; Infrared. Grilling's Juicy Little Secret™; Incredible Taste. Infallible Results™; Infrared Inside™; Let's Grill
Something Together™; Longhorn™;; Precision Flame™; Quick2Burn™; QuickSet™; Ready When You Are™; Season, Set, And Savor™; Sizzle On The Grill™;
SureFire™; Torchfork™; Trentino™; Universal Grill Parts™; You Bring the Party™
© 2010 Char-Broil, LLC Columbus, GA 31902
PRODUCT GUIDE
MODEL 463724711
Kmart Model No. 415.16150110
IMPORTANT: Fill out the product record information below.
Serial Number
Date Purchased
For support and to register your
grill, please visit us at
www.charbroil.com
If you have questions or need
assistance during assembly,
please call 1-800-241-7548.
®
TEC™ is a trademark of Tec Infrared Grills.
Printed in China
See rating label on grill for serial number.
Estimated assembly time: 30 minutes
®
Assembly instructions © 2010
11/23/10 • G314-001-020801

Advertisement

Table of Contents
loading

Related Manuals for Char-Broil 463724711

Summary of Contents for Char-Broil 463724711

  • Page 1 PRODUCT GUIDE MODEL 463724711 Kmart Model No. 415.16150110 IMPORTANT: Fill out the product record information below. Serial Number See rating label on grill for serial number. Date Purchased For support and to register your grill, please visit us at www.charbroil.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS DANGER For Your Safety ........2-3 If you smell gas: Grilling Guide.
  • Page 3 WARNING CAUTION CALIFORNIA PROPOSITION 65 Using pots larger than 6 quarts in capacity could exceed weight limit of the 1. Combustion by-products produced when using this product contain chemicals known to the State of side burner shelf California to cause cancer, birth defects, and other or side shelf, reproductive harm.

  • Page 4: Grilling Guide

    GRILLING GUIDE – Getting Started Temperature The temperature gauge in the hood of your new grill measures air temperature. The air temperature inside your grill will never First Time Use be as hot as the temperature at the cooking surface. Read your Assembly Manual and ensure the grill is put together properly.
  • Page 5 Rotisserie Cooking GRILLING GUIDE – Grilling 101 Rotisserie cooking is best for 'round' meat, such as large roasts, whole poultry, and pork. It generally requires an accessory motor Outdoor grilling is really quite simple. You'll succeed with and spit rod that allows the meat to be turned at a constant burgers, dogs, or steaks usually on your very first try.
  • Page 6 Wood Chips GRILLING GUIDE – Tips & Tricks For extra smoke flavor when grilling, try adding wood chips. Cooking on your new grill is a hands-on experience, and it is Soak the chips in water for approximately 30 minutes before recommended to remain outside with your grill while cooking.

  • Page 7: Grilling Guide

    Cooking surfaces: If a bristle brush is used to clean any of the GRILLING GUIDE – Cleaning Your Grill grill cooking surfaces, ensure no loose bristles remain on cooking Why Clean? surfaces prior to grilling. It is not recommended to clean cooking surfaces while grill is hot.

  • Page 8: Use And Care

    LP Cylinder USE AND CARE •The LP cylinder used with your grill must meet the following requirements: DANGER •Use LP cylinders only with these required measurements: 12" (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum. •...
  • Page 9 LP Cylinder Exchange Connecting Regulator to the LP Cylinder •Many retailers that sell grills offer you the option of replacing 1.LP cylinder must be properly secured onto grill. (Refer to your empty LP cylinder through an exchange service. Use only assembly section.) those reputable exchange companies that inspect, precision fill, 2.Turn all control knobs to the OFF position.
  • Page 10 Leak Testing Valves, Hose and Regulator 1.Turn all grill control knobs to OFF. 2.Be sure regulator is tightly connected to LP cylinder. 3.Completely open LP cylinder valve by turning hand wheel counterclockwise. If you hear a rushing sound, turn gas off immediately.
  • Page 11 Safety Tips WARNING Before opening LP cylinder valve, check the coupling nut for tightness. When grill is not in use, turn off all control knobs and LP cylinder valve. For Safe Use of Your Grill and to Avoid Serious Never move grill while in operation or still hot. Injury: Use long-handled barbecue utensils and oven mitts to avoid •...
  • Page 12 Burner Flame Check WARNING • Remove cooking grates and flame tamers. Light burners, rotate knobs from HI to LOW. You should see a smaller flame in LOW position than seen on HI. Perform burner flame check Turn controls and gas source or tank OFF when not on sideburner, also.

  • Page 13: Spider Alert

    3. Remove carryover tubes and burners. CAUTION Detach electrode from burner. NOTE: Removal/Detachment method will depend on the SPIDER ALERT! burner configuration. See different configurations in illustrations below. 5. Carefully lift each burner up and away from valve openings. We suggest three ways to clean the burner tubes. Use the one SPIDER AND WEBS easiest for you.

  • Page 14: Limited Warranty

    LIMITED WARRANTY This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*.

  • Page 15: Parts List

    PARTS LIST Key Qty Description Key Qty Description 1 LEFT LEG ASSEMBLY 1 ELECTRODE WIRE, F/ SIDEBURNER 1 MATCH HOLDER 1 SIDEBURNER CLIP 1 RIGHT LEG ASSEMBLY 1 CLIP, F/ GREASE CUP 1 FRONT PANEL 1 GREASE CUP 1 BACK RAIL 1 TANK EXCLUSION WIRE (SILVER) NOT Pictured 1 TANK EXCLUSION WIRE (BLACK)

  • Page 16: Parts Diagram

    PARTS DIAGRAM...

  • Page 17: Assembly

    ASSEMBLY Place rear rail between cart frames. Hook the key hole slots to the preassembled #10-24x1/2” machine screws. Tighten the screws. Right Leg Assembly Back Rail Left Leg Assembly Front Panel Insert axle rod into wheel, legs other wheel. Attach with (1) axle spacer and hitch pin. Insert leg extenders into right legs.
  • Page 18 Hook the short tank exclusion wire (silver) onto front right leg. Flex tank exclusion wire to fit other end to the hole on bottom edge of rear rail. Rear Rail Front Right Leg Short Tank Exclusion (sliver) Hook the long tank exclusion wire ( black ) onto front left leg.
  • Page 19 This step requires two people to lift and position grill head onto cart. Carefully lower the grill head onto the cart. Make sure the regulator hose is hanging outside the cart. Slide grill head from front to rear of cart until the pre-installed screws are slide into the opening of the metal tabs. Tighten the pre-installed screws.
  • Page 20 Place left side shelf to left side of firebox . Make sure the key hole slots are fit onto the pre-installed screws (A). Tighten the pre-installed screws (B). Position sideburner valve behind fascia , attach with #8-32X3/8” screws. Qty: 2 8-32X3/8”...
  • Page 21 Place sideburner into shelf (A). Make sure to insert valve into sideburner tube. Attach sideburner with (1) flat washer and wing nut. Under sideburner shelf, install sideburner clip to sideburner tube and valve. Attach sideburner ignitor wire to electrode as shown (B). Sideburner Flat Washer Wing Nut...
  • Page 22 Place control knobs onto valve stems. Control Knobs Place heat tents over burners by inserting tabs into slots in front of firebox. Opposite ends of heat tents rest on pins in back of firebox.
  • Page 23 Place cooking grates onto grate rests. Insert ends of Swing Away pivot wire into holes in sides of grill lid. Insert ends of Swing Away leg wire into holes in sides of firebox. NOTE: Pivot and leg wires, running side-to-side, should be under wires running front-to-back. If pivot and leg wires are on top, Swing Away is installed upside-down.
  • Page 24 Insert tank retainer wire into left legs. Rotate tank retainer wire inward toward cart. Tank Retainer Set bottom of tank into notches of tank bracket (A). Tank collar opening must face to front of grill, lean tank inward and engage tank collar with tank wire (B). LP CYLINDER IS SOLD SEPARATELY.

  • Page 25: Troubleshooting

    EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department. Emergencies Possible Cause Prevention/Solution Gas leaking from •Damaged hose. •Turn off gas at LP cylinder or at source on natural gas systems. If cracked/cut/burned anything but burned, replace valve/hose/regulator.

  • Page 26: Troubleshooting

    Troubleshooting (continued) Problem Possible Cause Prevention/Solution Burner(s) will not light PIEZO PUSH-BUTTON AND ROTARY: using ignitor. •Push-button sticks at bottom. •Replace ignitor. •Rotary knob rotates without clicking. •Replace knob. •Sparking between ignitor and electrode. •Inspect wire insulation and proper connection. Replace wires if insulation is broken.

  • Page 27: Registration Card

    Warranty Registration Department P.O. Box 1240 Columbus, GA 31902-1240...
