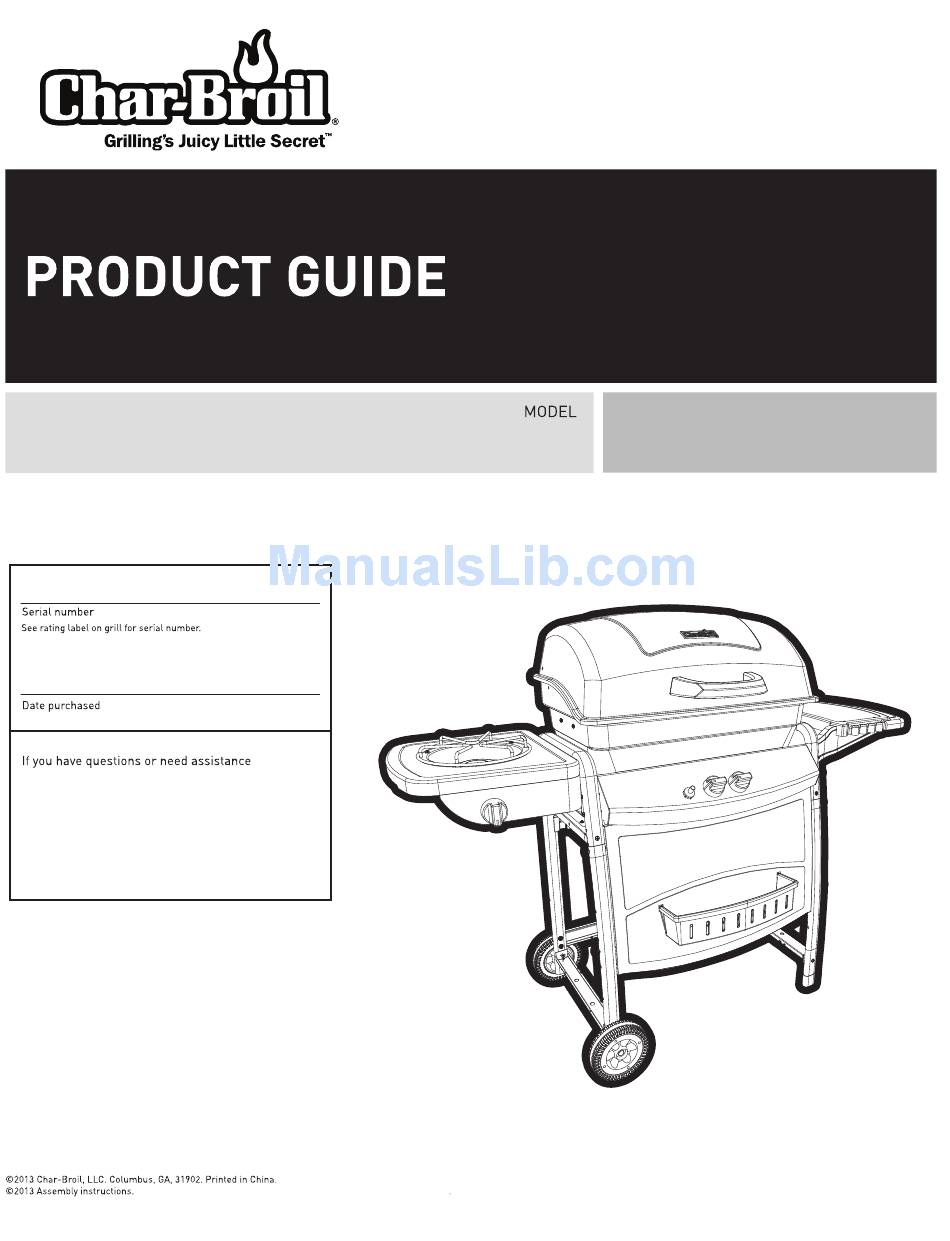

- Page 1 C-23G3 463722714 during assembly, please call 1-800-241-7548. 10/14/13 • G305-001-390802...
-
Page 2: Table Of Contents
THIS GRILL IS FOR OUTDOOR TABLE OF CONTENTS CAUTION USE ONLY. For Your Safety....... . 2 Grease Fires Grilling Guide. -
Page 3: Grilling Guide
Pre-Heating Your Grill Rotisserie Cooking GRILLING GUIDE – Getting Started Just like your home oven, your grill should be pre-heated Rotisserie cooking is best for 'round' meat, such as large to provide optimum performance. Pre-heat the grill on high roasts, whole poultry, and pork. It generally requires an for 10-15 minutes –... -
Page 4: Grilling Guide
This is great advice when it comes to keeping your grill clean. Routine Care The Char-Broil® grill is equipped with Gear Trax™, Periodic cleaning of this grill is necessary, as grill fires can Wood Chips which allow for the easy mounting of our unique line of... -
Page 5: Use And Care
LP Cylinder Filling USE AND CARE •Use only licensed and experienced dealers. •LP dealer must purge new cylinder before filling. OPD Hand Wheel LP Cylinder Removal, Transport and Storage •Dealer should NEVER fill LP cylinder more than 80% of Type 1 outlet with LP cylinder volume. - Page 6 Ignitor Lighting • If you notice grease or other hot material dripping from grill onto valve, hose or regulator, turn off gas supply WARNING • Do not lean over grill while lighting. at once. Determine the cause, correct it, then clean 1.
-
Page 7: Spider Alert
Cleaning the Burner Assembly NOTE: Your grill may NOT be equipped with a CAUTION Sideburner! Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting grill. Sideburner Ignitor Lighting 1. Turn gas OFF at control knobs and LP cylinder. •... -
Page 8: Limited Warranty
LIMITED WARRANTY This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*. -
Page 9: Parts List
PARTS LIST Qty Description Qty Description FIREBOX LOWER HINGE IGNITOR UPPER HINGE BURNER HANDLE COLLECTOR/ ELECTRODE ASSY GREASE CUP GREASE CUP CLIP LOGO PLATE HEAT TENT LEFT SIDE SHELF F/ SB MATCH HOLDER RIGHT SIDE SHELF TANK RETAINER NOT Pictured MOUNTING BRACKET, F/ SIDE SHELF, (RF/LB) …... -
Page 10: Parts Diagram
PARTS DIAGRAM... -
Page 11: Assembly
ASSEMBLY NOTE: DO NOT over tighten screws and washers that come into contact with porcelain coated surfaces. Over tightening may cause the porcelain coating to crack and break, resulting in exposed metal that will be prone to rust. #10-24x1-1/4" Machine Screw Qty. -
Page 12: 10-24X1-1/4" Machine Screw
#10-24x2" Machine Screw Qty. 4 #10-24 Flange Nut Qty. 4 #10-24x1-1/4" Machine Screw Qty. 8 #10-24 Flange Nut Qty. 8... -
Page 13: 1" Hitch Pin Qty
#8x3/8" Sheet Metal Screw Qty. 3 1” Hitch Pin Qty. 1 Wheel Bushing Qty. 1... - Page 14 #10-24 Flange Nut #10-24x2" Machine Screw Qty. 8 Qty. 8 #10-24x1/2" Machine Screw Qty. 2...
- Page 15 #10-24x1/2" Machine Screw Qty. 2 #10-24 Flange Nut Qty. 2 #10-24X3/8'’ Wing Screw Qty. 1...
- Page 16 #10-24x1-1/4" Machine Screw Qty. 4 5X15 Fiber Washer Qty. 10 #10-24 Flange Nut Qty. 8 #10-24x1/2" Machine Screw Qty. 6...
- Page 17 1/4-20x1-1/4" Machine Screw Qty. 4 1/4-20x1/2" Machine Screw Qty.4 1/4-20 Flange Nut Qty. 4 #8x3/8" Sheet Metal Screw Qty. 4 Side Shelf Bushing Qty. 4 #10-24x1/2” Machine Screw Qty.4...
- Page 18 #8-32x3/8" 5x9 Fiber washer #8x3/8" #8-32 Wing Nut Sideburner Clip Machine Screw Qty. 4 Sheet Metal Screw Qty. 1 Qty. 1 Qty. 2 Qty. 3...
- Page 19 #10-24x1/2" Machine Screw Qty. 4 #10-24 Flange Nut Qty. 4 5X15 Fiber Washer Qty.8 #10-24 Flange Nut #10-24 Wing Nut #10-24x1/2” Qty. 4 Qty. 2 Machine Screw Qty. 4 5X15 Fiber Washer Insulation Washer Qty. 10 Qty. 2...
-
Page 20: Hinge Pin Qty
1” Hitch Pin Hinge Pin Qty. 2 Qty. 2... - Page 22 LP Cylinder (not included) CAUTION Cylinder valve must face to front of cart once tank is attached. Failure to install cylinder correctly may allow gas hose to be damaged in operation, resulting in the risk of fire.
-
Page 23: Troubleshooting
EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department. Emergencies Possible Cause Prevention/Solution Gas leaking from •Damaged hose. •Turn off gas at LP cylinder or at source on natural gas systems. Discontinue use of product and replace valve/hose/regulator. -
Page 24: Troubleshooting
Troubleshooting (continued) Problem Possible Cause Prevention/Solution Burner(s) will not light PIEZO PUSH-BUTTON AND ROTARY: using ignitor. •Push-button sticks at bottom. •Replace ignitor. •Rotary knob rotates without clicking. •Replace knob. •Sparking between ignitor and electrode. •Inspect wire insulation and proper connection. Replace wires if insulation is broken. - Page 25 NOTES...
- Page 26 NOTES...
