Dakota Alert AD-01 Owner's Manual

Slave auto dialer wireless alarm & security equipment
Hide thumbs Also See for AD-01:

Advertisement

Quick Links

Download this manual

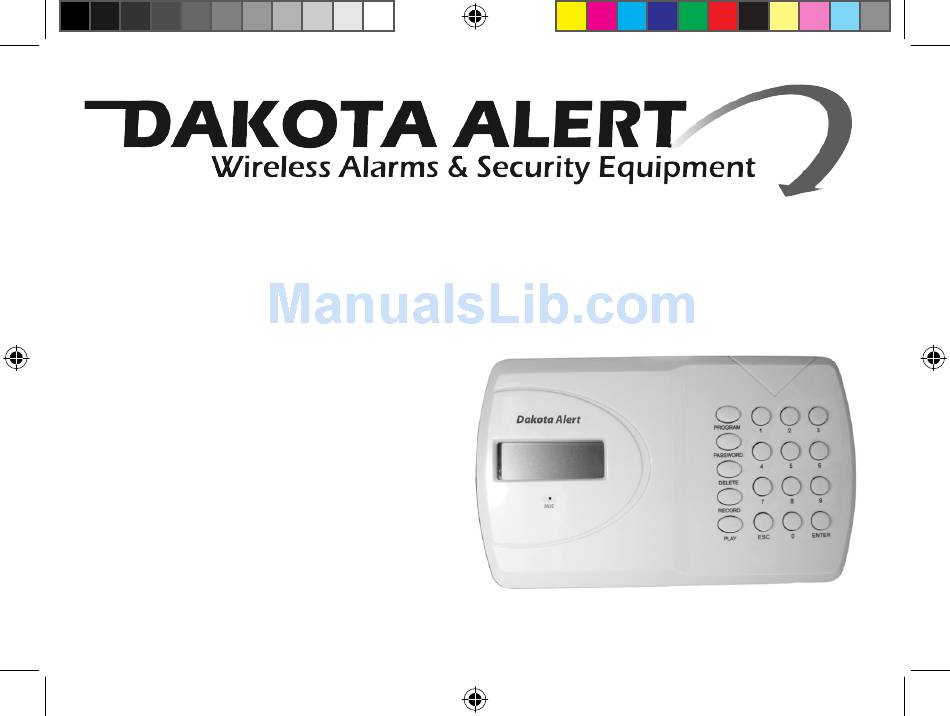

AD-01 Slave
Auto Dialer
Owner's Manual
AD-01 Slave Manual.indd 1
10/15/2009 10:20:44 AM

Advertisement

loading
Need help?

Need help?

Do you have a question about the AD-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dakota Alert AD-01

Summary of Contents for Dakota Alert AD-01

  • Page 1 AD-01 Slave Auto Dialer Owner’s Manual AD-01 Slave Manual.indd 1 10/15/2009 10:20:44 AM...
  • Page 2 AD-01 Slave Manual.indd 2 10/15/2009 10:20:44 AM...
  • Page 3 (dialer only) or audible (siren + dialer). Contents: 1 - Auto Dialer 1 - 12V DC Adaptor 1 - Installation & Programming Guide 1 - Telephone Cable 1 - Back-up Battery AD-01 Slave Manual.indd 3 10/15/2009 10:20:44 AM...

  • Page 4: Installation

    12V+ terminal and the black wire into the OV terminal (Figure 2). Using a small standard screwdriver, turn the screws on the terminal to secure the wires. 4. The dialer can support two alarm trigger inputs (normally open) plus a tamper alarm output (normally closed). AD-01 Slave Manual.indd 4 10/15/2009 10:20:44 AM...
  • Page 5 If you wish to connect a phone at the dialer location, you can connect the phone to the “PHONE” jack (Figure 1-5) on the dialer. 6. Continue on to the Advanced Operations to program your dialer or refer to the “AD-01 Quick Reference Programming” on page 14.
  • Page 6 How to play back the message: Press 1 2 3 4 > PLAY > 1 > ENTER to play back the recorded message. (Notice: 1 = the first message, 2 = the second message). AD-01 Slave Manual.indd 6 10/15/2009 10:20:44 AM...
  • Page 7 3. Press N (N = 1 for the first number called; 2 for the second number called; etc.) 3. Press ESC to exit the programming mode. Quick guide: Press 1 2 3 4 > PROGRAM > 3 > ENTER > N > ESC AD-01 Slave Manual.indd 7 10/15/2009 10:20:44 AM...
  • Page 8 6. Key in your new four digit user password code again. 7. The LCD will change to acc. Quick guide: Press 1 2 3 4 > PASSWORD > New Code > Confirm New Code AD-01 Slave Manual.indd 8 10/15/2009 10:20:45 AM...
  • Page 9 3. Press Time (Time = 1 for one minute, 2 for 2 minutes, etc. up to 99 minutes). Press ENTER. Quick guide: Press 1 2 3 4 > PROGRAM > 2 > ENTER > Time > ENTER AD-01 Slave Manual.indd 9 10/15/2009 10:20:45 AM...
  • Page 10 2. Press PROGRAM > 7 > ENTER 3. Press N (N = 0 without sound; 1 with sound). Press ENTER. Quick guide: Press 1 2 3 4 > PROGRAM > 7 > ENTER > N > ENTER AD-01 Slave Manual.indd 10 10/15/2009 10:20:45 AM...
  • Page 11 ESC. The Auto Dialer will revert to the ‘OFF’ mode and must be re-set to the ‘ON’ mode as above. Quick guide: Press 1 2 3 4 > ESC AD-01 Slave Manual.indd 11 10/15/2009 10:20:45 AM...
  • Page 12 2. Remove the battery door and take out the old battery. Insert new 9V battery and make sure it is in the correct polarity. 3. Fit the battery door and mount the Auto Dialer back onto the wall. AD-01 Slave Manual.indd 12 10/15/2009 10:20:45 AM...
  • Page 13 Use only a damp cloth and general household cleaning agent to wipe the unit clean. DO NOT use turpentine, thinner, gasoline or similar substances to clean the unit. AD-01 Slave Manual.indd 13 10/15/2009 10:20:45 AM...
  • Page 14 Quick reference programming (For step-by-step programming, refer to pages 6-10) programming: Enter Pass code 1234; push the Program button; select option number; 1 - Audible Alarm (N = 1-Audible; 0-Silent) 1234>PROGRAM>1>ENTER>N>ENTER 2 - Length of Audible Alarm (N = 1-99 Mins) 1234>PROGRAM>2>ENTER>N>ENTER 3 - Add Numbers (N = 1-9 order in which numbers are dialed) 1234>PROGRAM>3>ENTER>N>ENTER>PHONE NUMBER>ENTER...

  • Page 15: Technical Support

    WARRANTY Dakota Alert warrants this product to be free of defects in material and workmanship for a period of one year from the date of purchase. This warranty does not cover damage resulting from ac- cident, abuse, act of God or improper operation. If this product does become defective, simply return it to Dakota Alert.
  • Page 16 Dakota Alert, Inc. Phone: (605) 356-2772 32556 E. Main Street Fax: (605) 356-3662 P0 Box 130 Web: www.dakotaalert.com Elk Point, SD 57025 AD-01 Slave Manual.indd 16 10/15/2009 10:20:45 AM...
