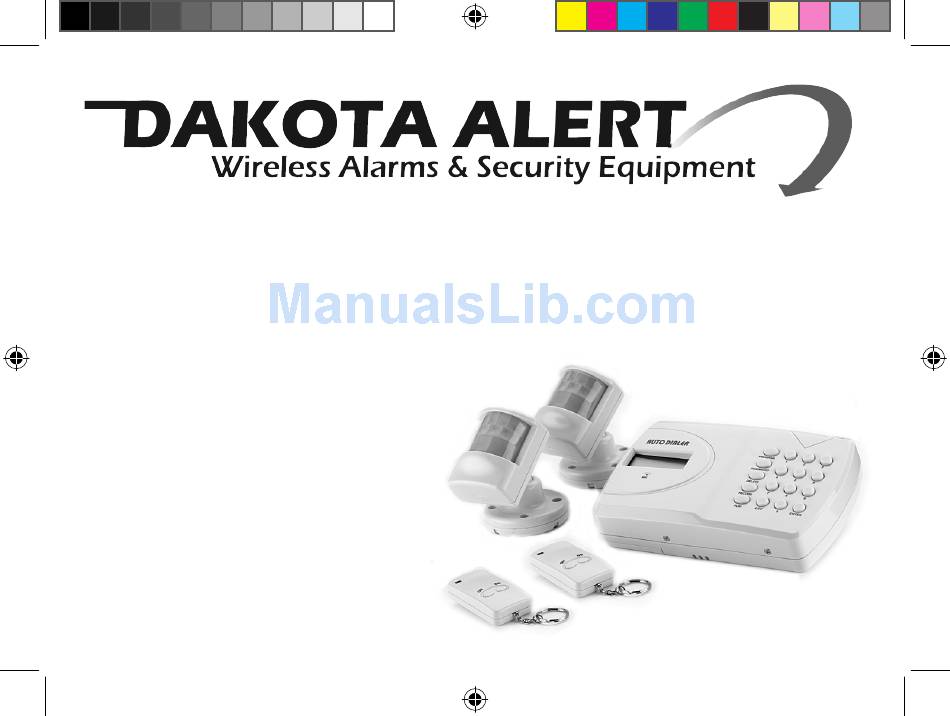

- Page 1 AD-01 Kit Auto Dialer Owner’s Manual AD-01 Kit Manual.indd 1 10/15/2009 10:17:55 AM...
- Page 2 Contents: 1 - Auto Dialer 2 - RF PIR Sensor 2 - RF Keyfob 1 - 12V DC Adaptor 1 - Installation & Programming Guide 1 - Telephone Cable 1 - Back-up Battery AD-01 Kit Manual.indd 2 10/15/2009 10:17:55 AM...
- Page 3 1. Using a small Phillips screwdriver, remove the screw from the back of the keyfob. 2. Take a small standard screwdriver and place in groove seperating the two keyfob halves. 3. Slowly twist and the keyfob housing should separate. AD-01 Kit Manual.indd 3 10/15/2009 10:17:55 AM...
-
Page 4: Installation
“learning 1” followed by a BEEP to confirm that it has learned the first keyfob. You then have another 30 seconds to teach it another keyfob (“learning 2”) and so on up to 5 keyfobs. AD-01 Kit Manual.indd 4 10/15/2009 10:17:55 AM... - Page 5 7. Continue on to the Advanced Operations to program your dialer or refer to the “AD-01 Quick Reference Programming” on page 14. AD-01 Kit Manual.indd 5 10/15/2009 10:17:55 AM...
- Page 6 You can enter a maximum of nine telephone numbers for the alarms. Each number can be a maximum of 32 digits. (If you are using this Auto Dialer on an office/work phone system you may have to enter 9 before the number to get a line out.) AD-01 Kit Manual.indd 6 10/15/2009 10:17:55 AM...
- Page 7 5. Repeat the process to designate any other numbers to each alarm. Quick guide: Press 1 2 3 4 > PROGRAM > 6 > ENTER > X > ENTER > N > ENTER AD-01 Kit Manual.indd 7 10/15/2009 10:17:55 AM...
- Page 8 3. Press Time (Time = 1 for one minute, 2 for 2 minutes, etc. up to 99 minutes). Press ENTER. Quick guide: Press 1 2 3 4 > PROGRAM > 2 > ENTER > Time > ENTER AD-01 Kit Manual.indd 8 10/15/2009 10:17:55 AM...
- Page 9 2. Press PROGRAM > 7 > ENTER 3. Press N (N = 0 without sound; 1 with sound). Press ENTER. Quick guide: Press 1 2 3 4 > PROGRAM > 7 > ENTER > N > ENTER AD-01 Kit Manual.indd 9 10/15/2009 10:17:55 AM...
- Page 10 Auto Dialer will revert to the ‘OFF’ mode and must be re-set to the ‘ON’ mode as above. Quick guide: Press 1 2 3 4 > ESC or Press the ‘OFF’ button on the keyfob AD-01 Kit Manual.indd 10 10/15/2009 10:17:55 AM...
- Page 11 Press both the ON and the OFF buttons on the RF Keyfob at the same time, for 3 seconds. The dialer will now dial out (Alarm 2) whether the system is armed or disarmed. AD-01 Kit Manual.indd 11 10/15/2009 10:17:55 AM...
- Page 12 Switch the power off again. Place switch back to NORMAL. Replace the 9V battery and place back onto the wall. Power the Auto Dialer back up. The Auto Dialer will then return to factory default setting. AD-01 Kit Manual.indd 12 10/15/2009 10:17:56 AM...
- Page 13 Use only a damp cloth and general household cleaning agent to wipe the unit clean. DO NOT use turpentine, thinner, gasoline or similar substances to clean the unit. AD-01 Kit Manual.indd 13 10/15/2009 10:17:56 AM...
- Page 14 8 - Tamper switch on/off (N = 1-On; 0-Off ) 1234>PROGRAM>8>ENTER>N>ENTER Recording alarm message: 1234>RECORD>N>ENTER>record message now (N = 1-Alarm 1 message; 2-Alarm 2 message) Playing alarm message: 1234>PLAY>N>ENTER (N = 1-Alarm 1 message; 2-Alarm 2 message) AD-01 Kit Manual.indd 14 10/15/2009 10:17:56 AM...
-
Page 15: Technical Support
WARRANTY Dakota Alert warrants this product to be free of defects in material and workmanship for a period of one year from the date of purchase. This warranty does not cover damage resulting from ac- cident, abuse, act of God or improper operation. If this product does become defective, simply return it to Dakota Alert. - Page 16 Dakota Alert, Inc. Phone: (605) 356-2772 32556 E. Main Street Fax: (605) 356-3662 P0 Box 130 Web: www.dakotaalert.com Elk Point, SD 57025 AD-01 Kit Manual.indd 16 10/15/2009 10:17:56 AM...
