CAD-05 Kit GSM
Auto Dialer
Owner's Manual
CAD-05 Kit Manual.indd 1
10/15/2009 9:40:53 AM

Advertisement

loading
Need help?

Need help?

Do you have a question about the CAD-05 Kit GSM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dakota Alert CAD-05 Kit GSM

Summary of Contents for Dakota Alert CAD-05 Kit GSM

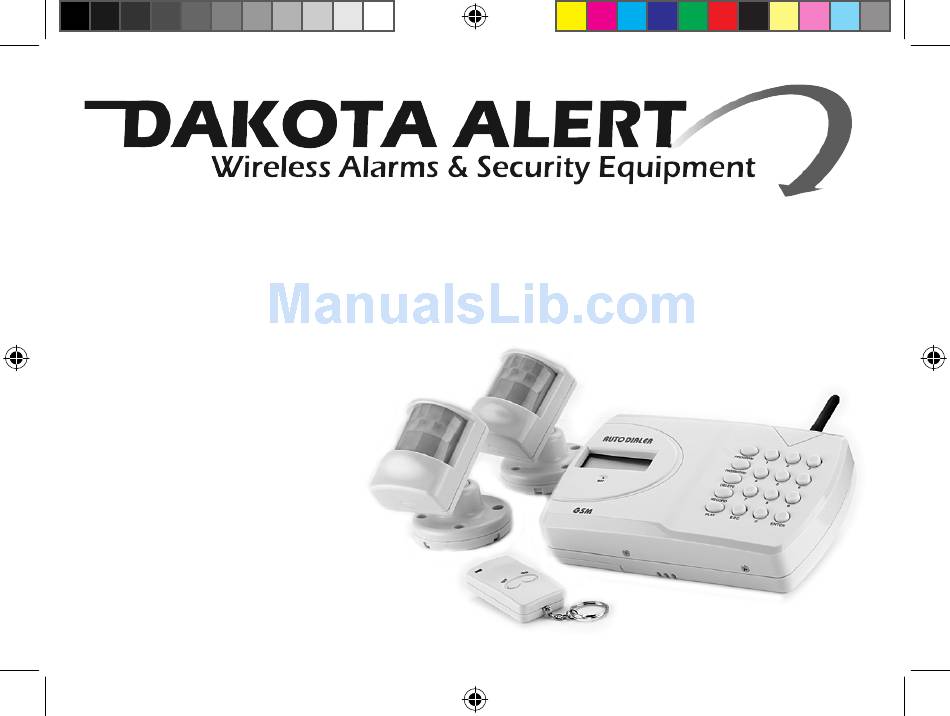

  • Page 1 CAD-05 Kit GSM Auto Dialer Owner’s Manual CAD-05 Kit Manual.indd 1 10/15/2009 9:40:53 AM...
  • Page 2 (dialer only) or audible (siren + dialer). Contents: 1 - GSM Auto Dialer 2 - RF PIR Sensor 1 - RF Keyfob 1 - 9V 500mA DC Adaptor 1 - Installation & Programming Guide 1 - Rechargeable 7.2V Battery CAD-05 Kit Manual.indd 2 10/15/2009 9:40:53 AM...
  • Page 3 1. Using a small Phillips screwdriver, remove the screw from the back of the keyfob. 2. Take a small standard screwdriver and place in groove seperating the two keyfob halves. 3. Slowly twist and the keyfob housing should separate. CAD-05 Kit Manual.indd 3 10/15/2009 9:40:53 AM...

  • Page 4: Installation

    4. (Note: please read all of step 4 before continuing). Remove the battery insulator by pulling the tab on the keyfob. Plug the DC adaptor into the dialer (Figure 2-5) and plug into wall outlet. Wait 20 seconds. If your CAD-05 Kit Manual.indd 4 10/15/2009 9:40:53 AM...
  • Page 5 GND and SIREN terminals and will sound when the dialer is triggered. 7. Continue on to the Advanced Operations to program your dialer or refer to the “CAD-05 Quick Reference Programming” on page 14. CAD-05 Kit Manual.indd 5 10/15/2009 9:40:53 AM...
  • Page 6 You can enter a maximum of nine telephone numbers for the alarms. Each number can be a maximum of 32 digits. (If you are using this Auto Dialer on an office/work phone system you may have to enter 9 before the number to get a line out.) CAD-05 Kit Manual.indd 6 10/15/2009 9:40:53 AM...
  • Page 7 5. Repeat the process to designate any other numbers to each alarm. Quick guide: Press 1 2 3 4 > PROGRAM > 6 > ENTER > X > ENTER > N > ENTER CAD-05 Kit Manual.indd 7 10/15/2009 9:40:53 AM...
  • Page 8 3. Press Time (Time = 1 for one minute, 2 for 2 minutes, etc. up to 99 minutes). Press ENTER. Quick guide: Press 1 2 3 4 > PROGRAM > 2 > ENTER > Time > ENTER CAD-05 Kit Manual.indd 8 10/15/2009 9:40:53 AM...
  • Page 9 2. Press PROGRAM > 7 > ENTER 3. Press N (N = 0 without sound; 1 with sound). Press ENTER. Quick guide: Press 1 2 3 4 > PROGRAM > 7 > ENTER > N > ENTER CAD-05 Kit Manual.indd 9 10/15/2009 9:40:53 AM...
  • Page 10 Auto Dialer will revert to the ‘OFF’ mode and must be re-set to the ‘ON’ mode as above. Quick guide: Press 1 2 3 4 > ESC or Press the ‘OFF’ button on the keyfob CAD-05 Kit Manual.indd 10 10/15/2009 9:40:53 AM...
  • Page 11 Press both the ON and the OFF buttons on the RF Keyfob at the same time, for 3 seconds. The dialer will now dial out (Alarm 2) whether the system is armed or disarmed. CAD-05 Kit Manual.indd 11 10/15/2009 9:40:53 AM...
  • Page 12 SIM card will lock out and you will need to request a PUK number from your service provider. Please contact SIM card service provider (AT&T, T-Mobile, RebelFone, O Wireless, etc.) with questions reguarding SIM cards. Services may be limited by your local provider. Please contact them reguarding local limitations. CAD-05 Kit Manual.indd 12 10/15/2009 9:40:53 AM...
  • Page 13 Use only a damp cloth and general household cleaning agent to wipe the unit clean. DO NOT use turpentine, thinner, gasoline or similar substances to clean the unit. CAD-05 Kit Manual.indd 13 10/15/2009 9:40:53 AM...
  • Page 14 8 - Tamper switch on/off (N = 1-On; 0-Off ) 1234>PROGRAM>8>ENTER>N>ENTER Recording alarm message: 1234>RECORD>N>ENTER>record message now (N = 1-Alarm 1 message; 2-Alarm 2 message) Playing alarm message: 1234>PLAY>N>ENTER (N = 1-Alarm 1 message; 2-Alarm 2 message) CAD-05 Kit Manual.indd 14 10/15/2009 9:40:53 AM...

  • Page 15: Technical Support

    WARRANTY Dakota Alert warrants this product to be free of defects in material and workmanship for a period of one year from the date of purchase. This warranty does not cover damage resulting from ac- cident, abuse, act of God or improper operation. If this product does become defective, simply return it to Dakota Alert.
  • Page 16 Dakota Alert, Inc. Phone: (605) 356-2772 32556 E. Main Street Fax: (605) 356-3662 P0 Box 130 Web: www.dakotaalert.com Elk Point, SD 57025 CAD-05 Kit Manual.indd 16 10/15/2009 9:40:53 AM...
