Summary of Contents for Haier HDM-2070EG

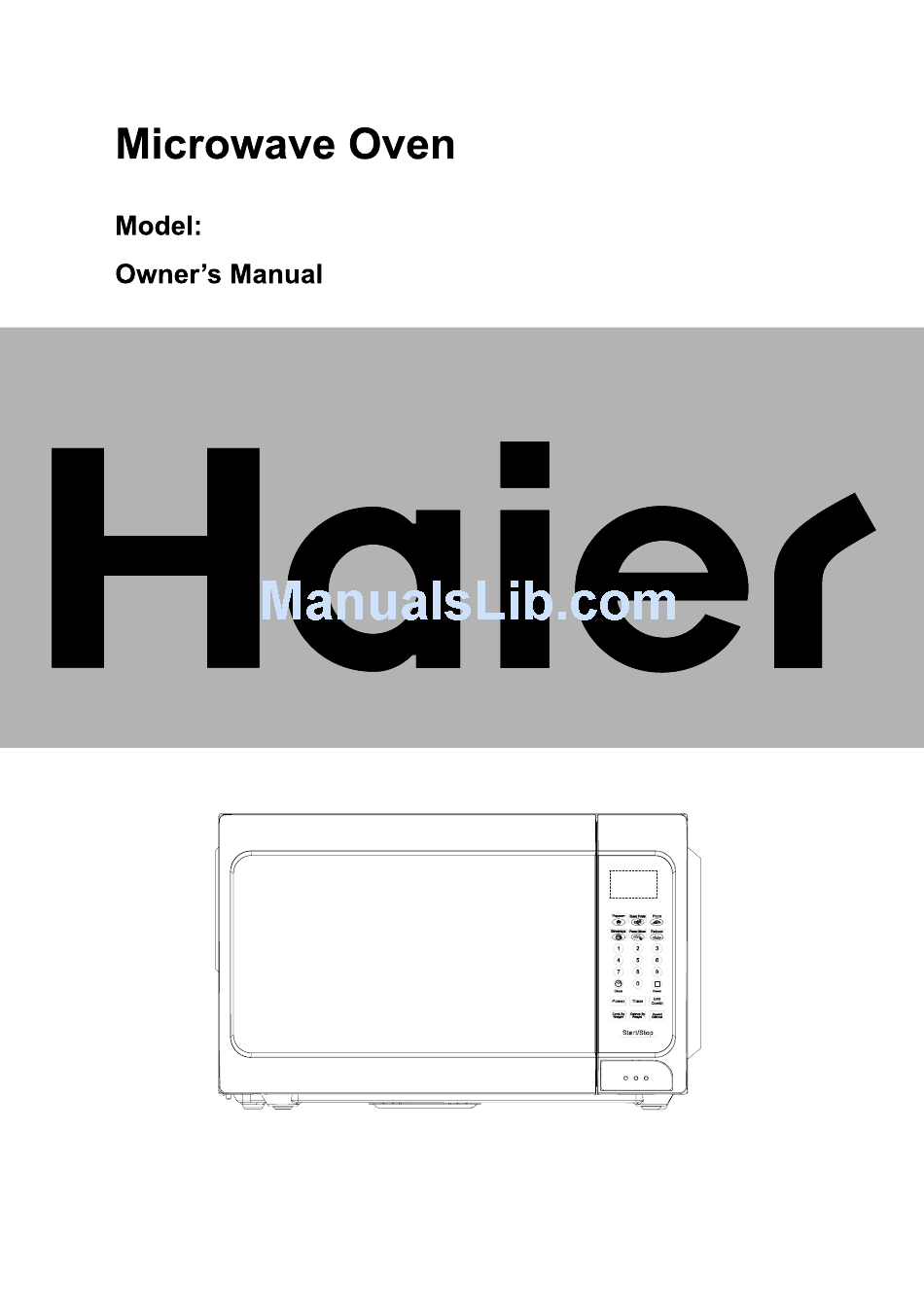

- Page 1 HDM-2070EG Please read this booklet carefully before fixing and using and save it for future reference.
-
Page 2: Installation
Installation 1. Take out all the packing. if there is a safe film over the oven, tear it off before Use. Check carefully for damage. if any, immediately notify dealer or send to the manufacturer’s service center. 2. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank. -
Page 3: Important Safety Instruction
Important safety instruction When using Microwave oven, the following precautions must be observed: 1. This manual contains important installation and safely information. Please read all instructions carefully before using and keep it well for future reference 2. Make sure the voltage in your living area corresponds to the one shown on the rating label of the appliance, and the wall socket is properly grounded 3. -
Page 4: Product Introduction
instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use 16. Children should be supervised to ensure that they do not play with the appliance 17. -
Page 5: Control Pannel
a. Do not remove the Waveguide cover during cleaning b. Make sure the Waveguide cover installation right and no damage during cooking 2. Control pannel Set quick cook menu,Allow you to reheat or cook food automatically without entering power level or time. -
Page 6: Function And Operation Method
When the POPCORN, PIZZA, REHEAT is begin set or used When the potato,Beverage, When the time is begin Frozen Dinneris begin set or used set or used When the time or clock When the every ENTER TIMER CODE AMT TIME is begin set or used program is 88:88... -
Page 7: Setting The Clock
3. Setting the clock 1. on standby state, touch CLOCK key. Note: on the state of setting clock the step can be omitted. 2. Use the number keys to enter the correct time. You must touch at least three numbers to set the clock (one for hour and two for minutes). 3. -
Page 8: Setting Cooking Times And Power Levels
5. Setting cooking times and power levels A. One-stage cooking 1. on standby state or clock state, press POWER repeatedly to select the desired the Power level, 2. Use the number keys to set a cooking time. You can set a cooking time from one second to 99 minutes and 99 seconds. -
Page 9: Two Stage Cooking
Set cooking time by pressing the number Button of “1” ， 10:00 “0” ， “0” ， “0” Press Start/stop button to start, and LED will count down to show left time a. The max time which can be set is 99’99”. b. - Page 10 Press Grill/combi button to set grill level Press “9” ， “0” ， “0” to set cooking time 9:00 Start cooking by pressing Start/Stop button 6. Setting “speed defrost” 1. on standby state or clock state, touch SPEED DEFROST key. 2. Enter desired defrosting time by touching correct number keys. Digital timer sets minutes and seconds from left to right so a single digit can be set (5 for 5 seconds) or up to 4 digits (2405 for 24 minutes 5 seconds).
- Page 11 7. Setting “cook by weight” The oven has default cooking menu for simple operation. You set the type and weight of food, and the oven automatically sets the cooking time and power level. “COOK BY WEIGHT” CODE DESCRIPTIONS CODE WEIGHT RANGE Beef 0.1, 0.15, 0.2……2.9, 2.95, 3.0 Kg 0.1, 0.15, 0.2……2.9, 2.95, 3.0 Kg...
- Page 12 8. Setting “defrost by weight” You set the type and weight of food, and the oven automatically sets the defrosting time Example: To defrost 1.15Kg beef Depress Display ： 1.After power-up, the colon flashes ,Then press Reset button once Or wait for 30sec 2.
-
Page 13: About "Quick Cook" Settings
Combination of Grill and microwave cooking. 55% of time microwave output and 45% of time light wave In the mode of convection/combo/grill, all of the oven parts, as well as the rack and cooking containers, may become very hot. Use caution when removing any item from the oven. -
Page 14: Child Lock Function
To reset POPCORN time: tap POPCORN key twice. ENTER TIME appears in display. Touch number keys to enter minutes and seconds. Touch START/STOP key. This new cooking time will remain whenever you touch the POPCORN key until you reset it. setting “baked potato”... -
Page 15: Utensils Guideline
12. UTENSILS GUIDELINE It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. - Page 16 Cooking food evenly Food such as chicken, hamburger or steak should be turned once during cooking. Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking Allow standing time After cooking times out, leave the food in the oven for a adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner...
-
Page 17: Cleaning And Maintenance
CLEANING and MAINTENANCE Microwave oven care The oven should be cleaned regularly and any food deposits removed. 1. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy 2. - Page 18 Wipe the enclosure with a dampened soft cloth Door: Using a dampened soft cloth, wipe clean the door and window Wipe the door seals and adjacent parts to remove any spill or spatter Wipe the control panel with a slightly dampened soft cloth Interior walls: Wipe clean the interior surfaces with a dampened soft cloth Wipe clean the waveguide cover to remove any food splashed...
-
Page 19: Servicing Safeguards
SERVICING SAFEGUARDS MICROWAVE RADIATION！ It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy. The temperature of accessible surfaces may be high when the appliance is operating The high voltage capacitor remains charge after disconnection;... - Page 20 During servicing below listed parts are liable to be removed and give access to potentials above250V to earth. 1. Magnetron 2. High voltage transformer 3. High voltage capacitor 4. High voltage diode 5. High voltage fuse The following conditions may cause undue microwave exposure during servicing. Improper fitting of magnetron;...
- Page 21 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
